| Major Properties | |
|---|---|
| Materials Resistive element | CuNi alloy foil |
| Materials Base | Polyimide |
| Operating temperature in combination with major adhesives after curing (°C) | CC-33A: -196 to 120ºC CC-35: -30 to 120ºC CC-36: -30 to 100ºC EP-340: -55 to 150°C PC-600: -55 to 150°C |

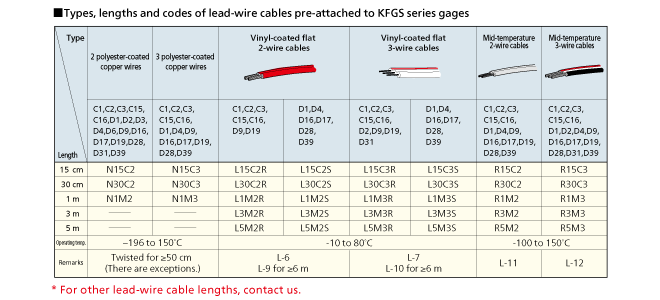

| Operating temperature in combination with major leadwire cables (°C) | Polyester-coated copper wire: -196 to 150ºC Vinyl-coated flat cable (L-6, L-7): -10 to 80ºC middle-temperature cable (L-11, L-12): -100 to 150ºC |
| Self-temperature-compensation (°C) | 10 to 100ºC |
| Applicable linear expansion coefficients (×10^-6/℃) | 11, 16, 23, 27 |
| Strain limits at normal temp. (approx. %) | - |
| Fatigue lives at normal temp. (times) | - |
