| Major Properties | |
|---|---|
| Materials Resistive element | CuNi alloy foil |
| Materials Base | Polyimide |
| Operating temperature in combination with major adhesives after curing (°C) | CC-33A: -10 to 80ºC EP-340: -10 to 80ºC |

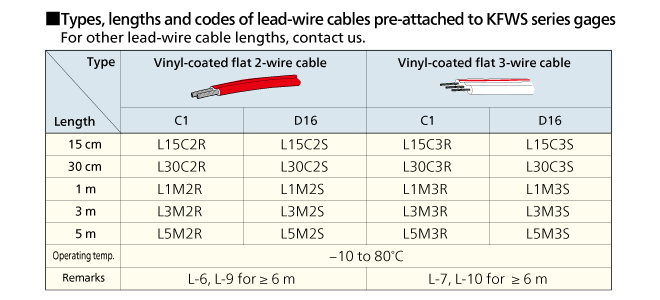

| Operating temperature in combination with major leadwire cables (°C) | Vinyl-coated flat cable (L-6, L-7): -10 to 80ºC |
| Self-temperature-compensation (°C) | 10 to 80ºC |
| Applicable linear expansion coefficients (×10^-6/℃) | 11, 16, 23 |
| Strain limits at normal temp. (approx. %) | 5.0 |
| Fatigue lives at normal temp. (times) | 3x10^4 (±1500μm/m) |
