Weldable Waterproof Foil Strain Gages
개요
KCW 시리즈 Foil Strain Gage는 용접형 Gage로, 고압이나 수중 환경에서도 별도의 코팅 처리가 필요하지 않습니다.
G10 타입은 약 10MPa의 수압을 견딜 수 있습니다.
기술 정보
Major Properties
Materials Resistive element NiCr alloy foil
Materials Base Stainless steel
Operating temperature in combination with major adhesives after curing (°C) (Spot welding) -20 to 100ºC

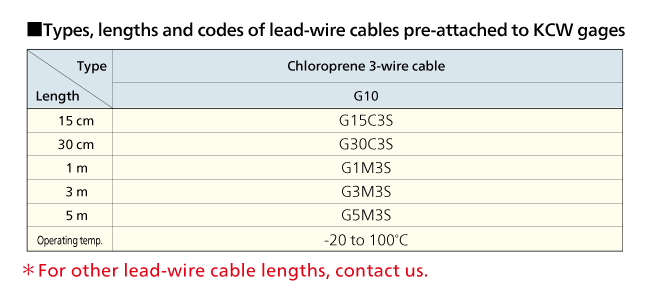

Operating temperature in combination with major leadwire cables (°C) Chloroprene cable: -20 to 100ºC
Self-temperature-compensation (°C) 10 to 90ºC
Applicable linear expansion coefficients (×10^-6/℃) 11
Strain limits at normal temp. (approx. %) -
Fatigue lives at normal temp. (times) -
비고
일부 제품은 RoHS 비준수 제품과 함께 판매될 수 있습니다. RoHS 규격을 충족하는 제품을 원하시면 별도로 문의해 주세요.
