For Residual Stress Measurement
Overview

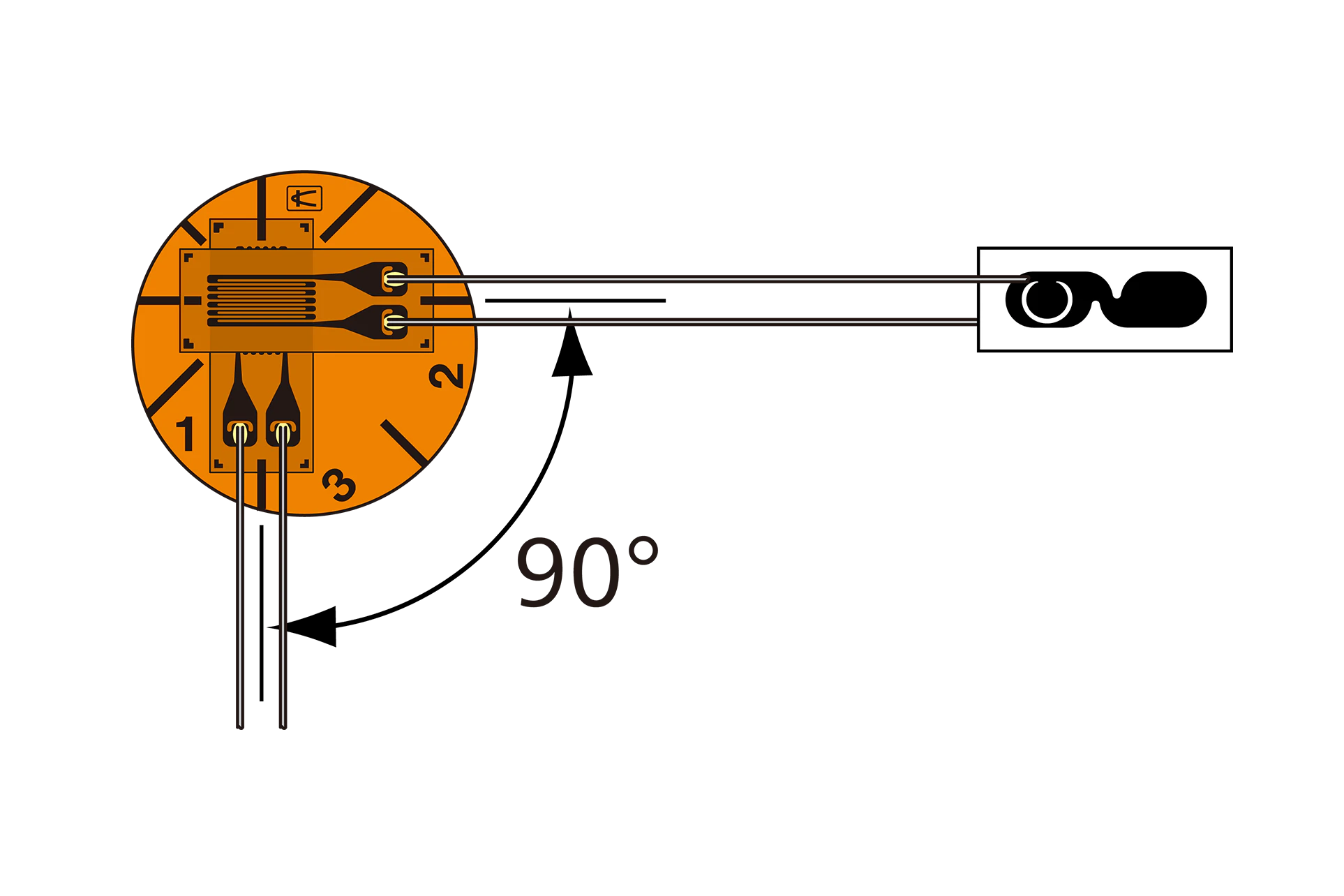

KFGS gages equipped with a gage terminal enable one-touch- connection/disconnection of the lead-wire cable.
They are suitable for residual stress measurement with the cutting method. A clip-equipped dedicated cable T-C26 (Vinyl-coated, 2 m long) is optionally available.
Technical Information
Major Properties
Materials Resistive element CuNi alloy foil
Materials Base Polyimide
Operating temperature in combination with major adhesives after curing (°C) CC-36: -30 to 100ºC
CC-33A: -196 to 120ºC
CC-35: -30 to 120ºC
EP-340: -55 to 120°C

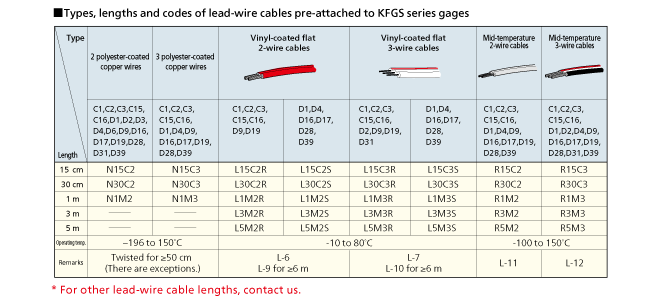

Operating temperature in combination with major leadwire cables (°C) Polyester-coated copper wire equipped with a gage terminal: -196 to 150℃
Self-temperature-compensation (°C) 10 to 100ºC
Applicable linear expansion coefficients (×10^-6/℃) 11, 16, 23, 27
Strain limits at normal temp. (approx. %) -
Fatigue lives at normal temp. (times) -
Remark
Some products will be sold together with non-RoHS compliant products.
