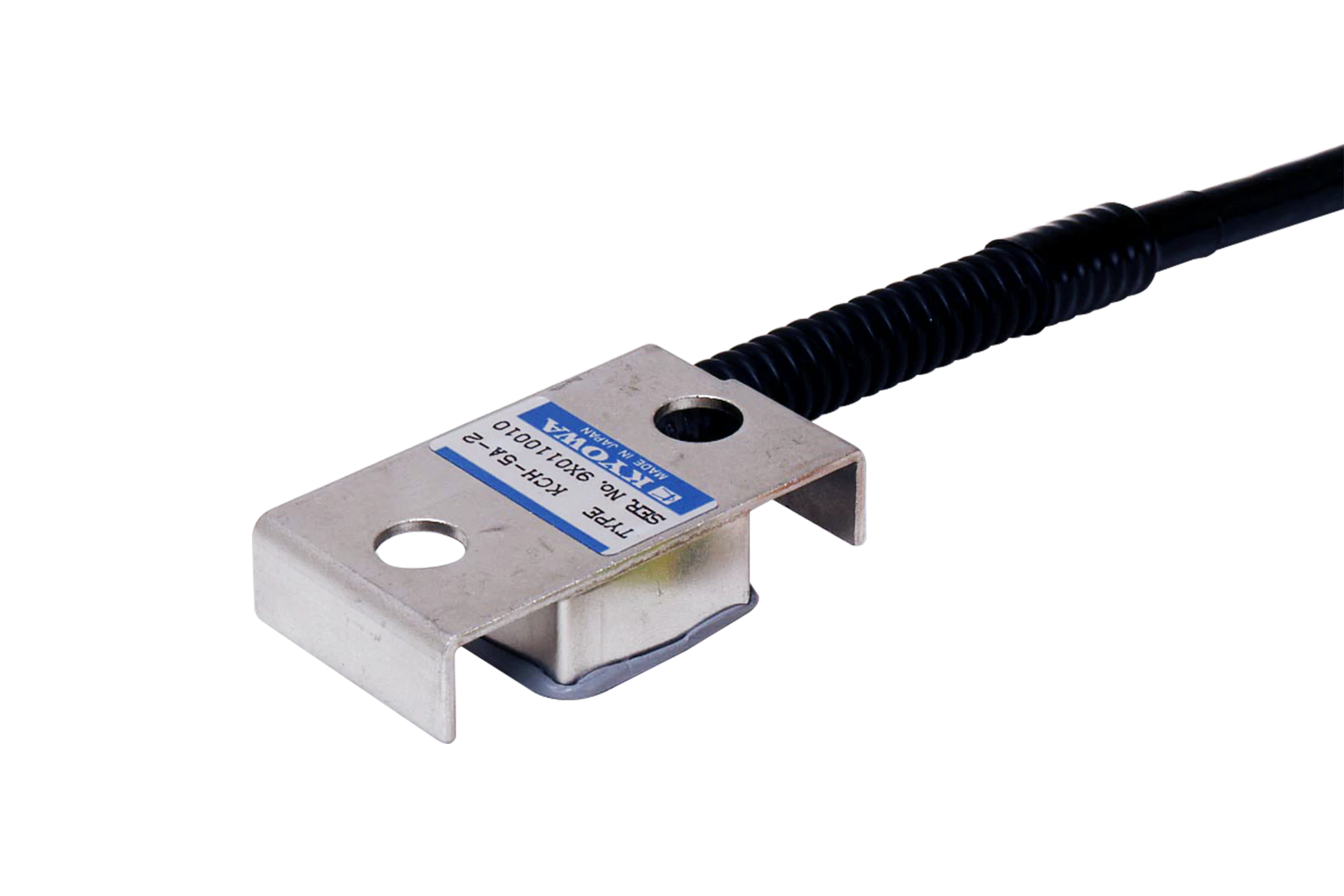

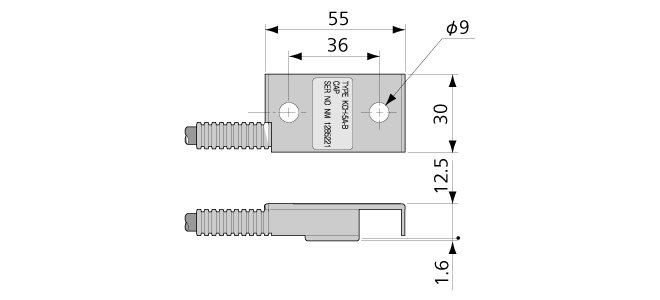

Foil Strain Gages with a Protector
Overview
The unique design simplifies gage bonding, wiring and moisture-proofing work in the field. In addition, the metal case protects the strain gage and significantly improves reliability compared with conventional gages.
Using stud bolts and adhesive allows the gages to be mounted to the bottom or side plate of a tank for strain measurement, to a hopper or tank for weight measurement, to the shaft of a truck for tare weight measurement or any other similar applications where the gages need to be protected against moisture, water or small stones.
Technical Information
Major Properties
Materials Resistive element CuNi alloy foil
Materials Base Polyimide
Operating temperature in combination with major adhesives after curing (°C) Protector: Stud bolt strain gage
EP-340: -40 to 100ºC
CC-33A: -40 to 100ºC
Operating temperature in combination with major leadwire cables (°C) Special flexible vinyl-shielded cable: -40 to 100ºC
Self-temperature-compensation (°C) -
Applicable linear expansion coefficients (×10^-6/℃) 11
Strain limits at normal temp. (approx. %) 1
Fatigue lives at normal temp. (times) 1.2x10^6 (±1000μm/m)
