Overview

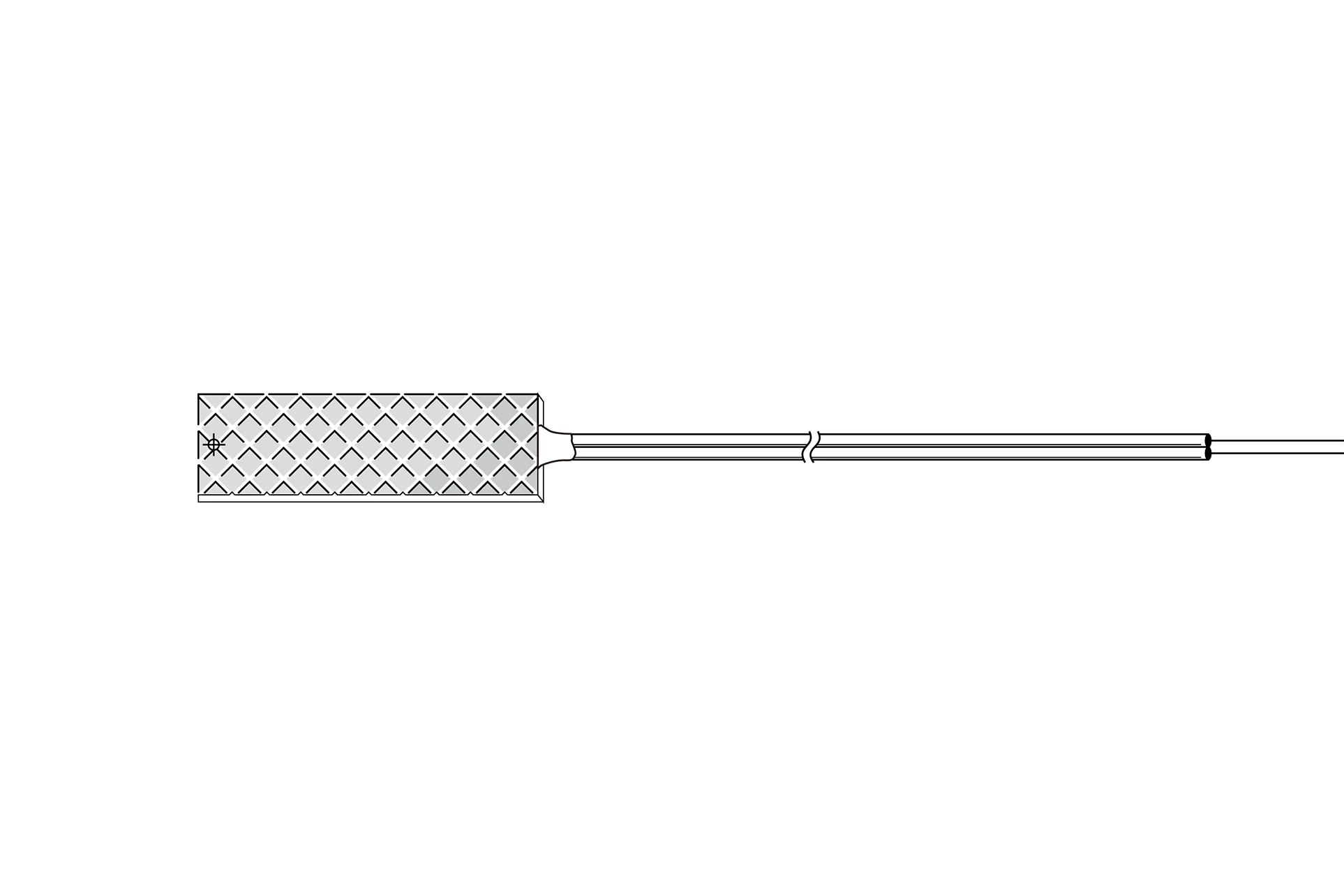

The KM series gages are designed to be embedded in mortar or concrete for the purpose of measuring the internal stress.
To ensure better adhesion to mortar or the like, the KM series gages feature a specially treated surface.
They also provide suitable waterproofness and elastic modulus for the intended purpose.

Technical Information

Major Properties
Materials Resistive element	CuNi alloy
Materials Base	Acrylate
Operating temperature in combination with major adhesives after curing (°C)	(Embedment) -10 to 70ºC
Operating temperature in combination with major leadwire cables (°C)	Vinyl-coated flat cable: -10 to 70ºC
Self-temperature-compensation (°C)	0 to 50ºC
Applicable linear expansion coefficients (×10^-6/℃)	11
Strain limits at normal temp. (approx. %)	0.2
Fatigue lives at normal temp. (times)	-

Contents

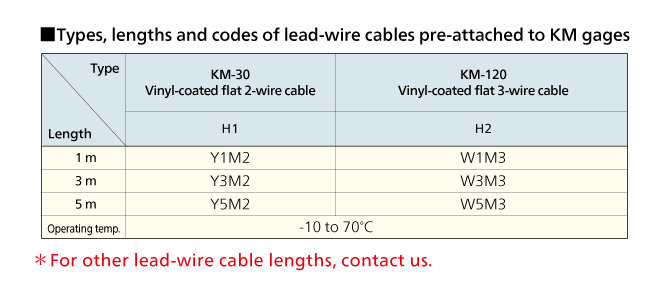

When ordering, suffix the lead-wire cable code to the model number with a space in between.

For the gage with a vinyl-coated ?at 3-wire cable 5 m long
→ KM-120-120-H2-11 W5M3

Remarks

*Some products will be sold together with non-RoHS compliant products.
If you have a request for RoHS compliant products, please contact us.
