Major Properties
Materials Resistive element	CuNi alloy foil
Materials Base	Polyimide
Operating temperature in combination with major adhesives after curing (°C)	CC-35: -10 to 80ºC
Operating temperature in combination with major leadwire cables (°C)	Polyester-coated copper wire: -196 to 150ºC Vinyl-coated flat cable (L-6, L-7): -10 to 80ºC Mid-temperature cable (L-11, L-12): -100 to 150ºC
Self-temperature-compensation (°C)	10 to 100ºC
Applicable linear expansion coefficients (×10^-6/℃)	11
Strain limits at normal temp. (approx. %)	5.0
Fatigue lives at normal temp. (times)	1.2x10^7 (±1500μm/m)

Contents

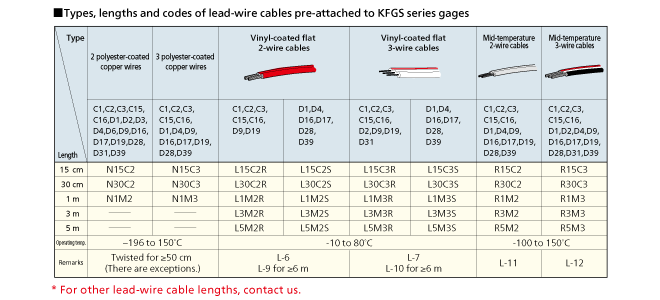

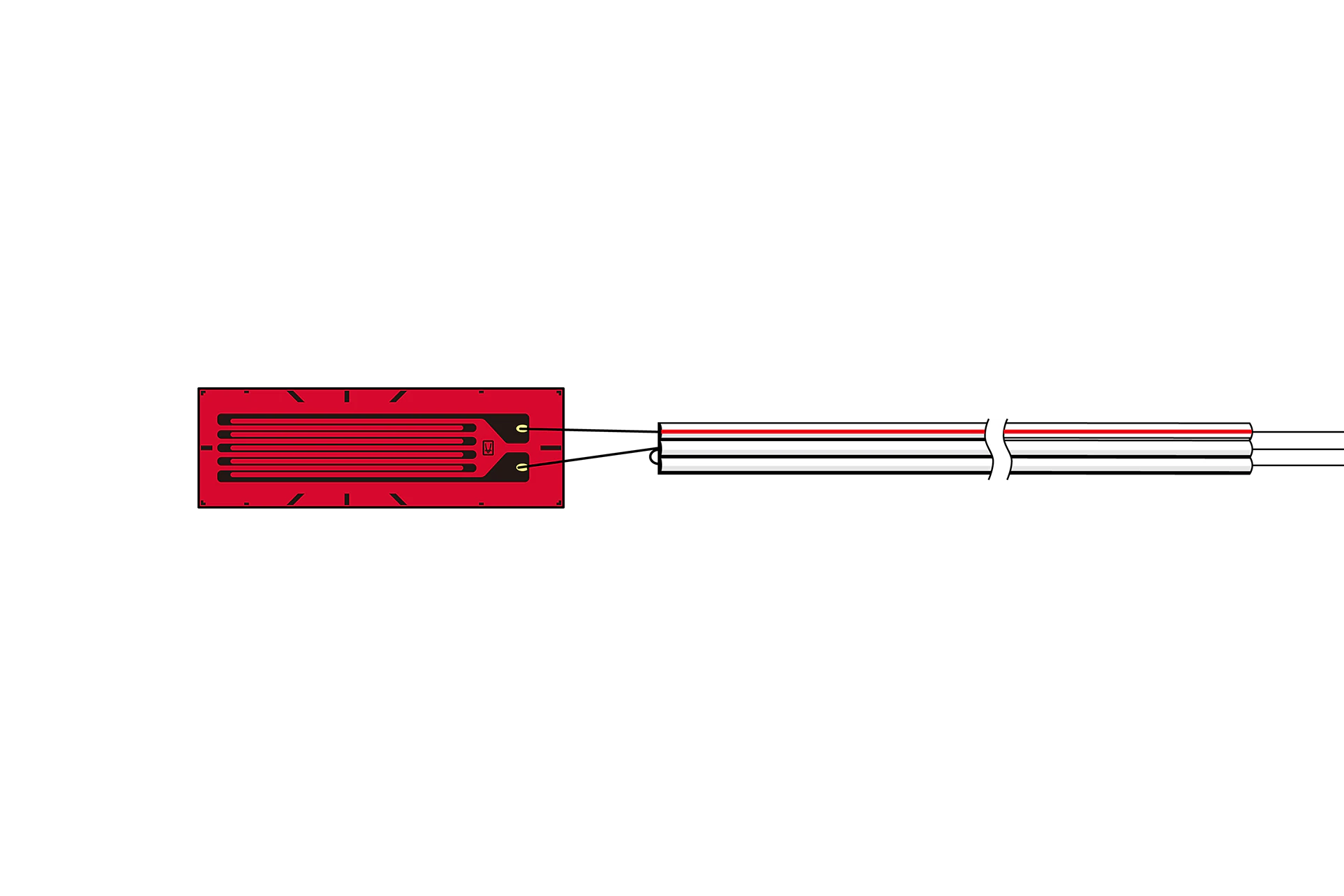

When ordering, suffix the lead-wire cable code to the model number with a space in between.

KFGS-30-120-C1-11 With a vinyl-coated flat 3-wire cable 1 m long
→ KFGS-30-120-C1-11 L1M3R

Notes on pre-attached lead-wire cables
- Standard color of the 2-wire cable pre-attached to uniaxial gages is red (R). * If desired, allows a white, green, yellow or black cable to be pre-attached.
- Standard 3-wire cable pre-attached to uniaxial gages has red stripes (R).
* If desired, allows the red stripes to be changed to blue or yellow stripes.
- In the case of a biaxial gage and triaxial gage, 2-wire cables are color-coded with red, white and green stripes for 0°, 90° and 45°, respectively and 3-wire cables, with red, yellow and blue stripes for 0°, 90° and 45°, respectively.
* The letter code is S in common.
