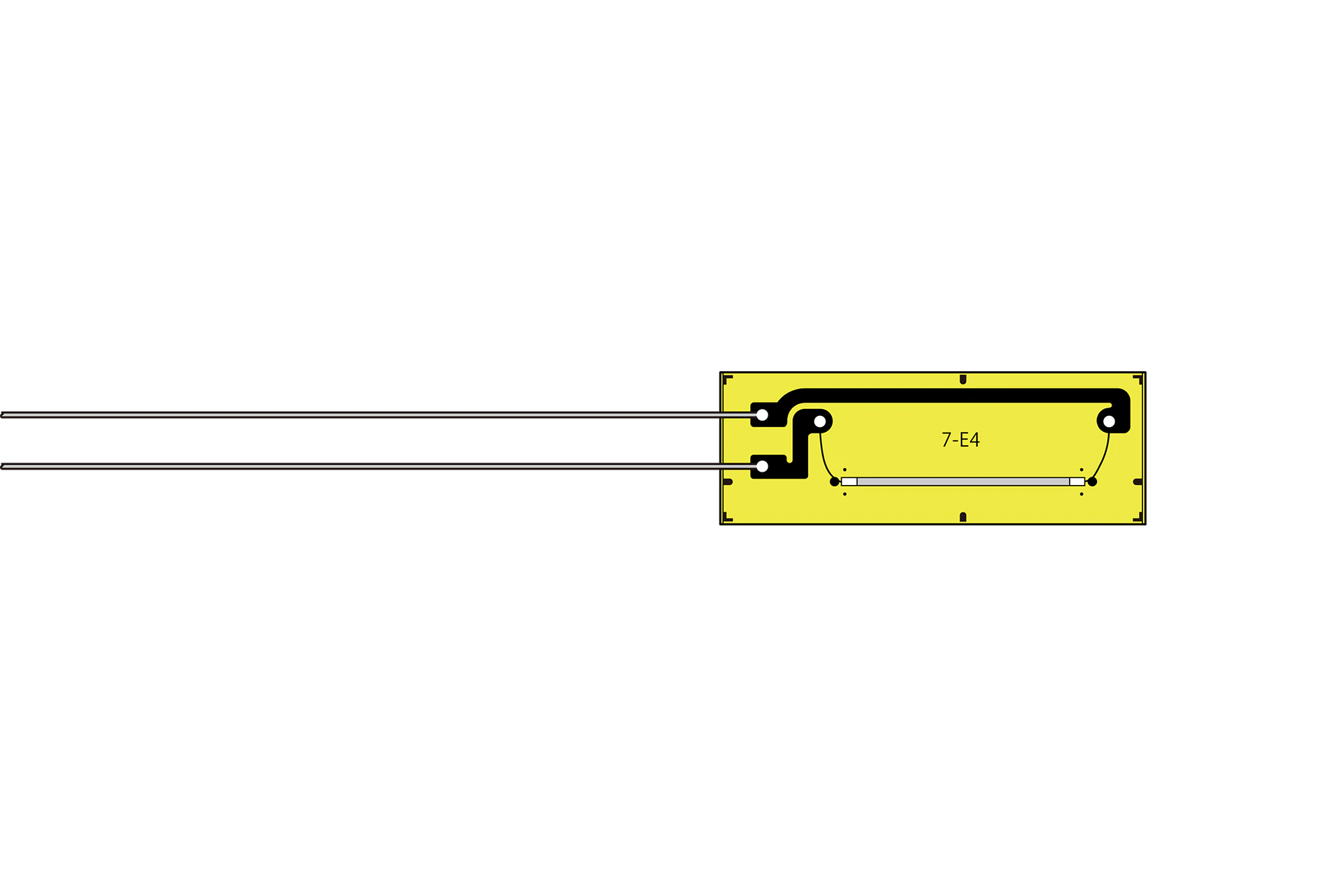

Ultra Linear Semiconductor Strain Gage
Overview
The KSPLB gage features a superior linearity of resistance change against strain in a comparatively wide range, thereby making it suitable as a sensing element of transducers.
Technical Information
Major Properties
Materials Resistive element P type Si
Materials Base Polyimide
Operating temperature in combination with major adhesives after curing (°C) EP-340:-50 to 150 ºC
CC-33A:-50 to 120 ºC
Operating temperature in combination with major leadwire cables (°C) Silver-covered copper wires: -50 to 150ºC
Self-temperature-compensation (°C) -
Applicable linear expansion coefficients (×10^-6/℃) -
Strain limits at normal temp. (approx. %) 0.15
Fatigue lives at normal temp. (times) 2x10^6 (±1000 μm/m)
