Electric Kick Bike
Overview

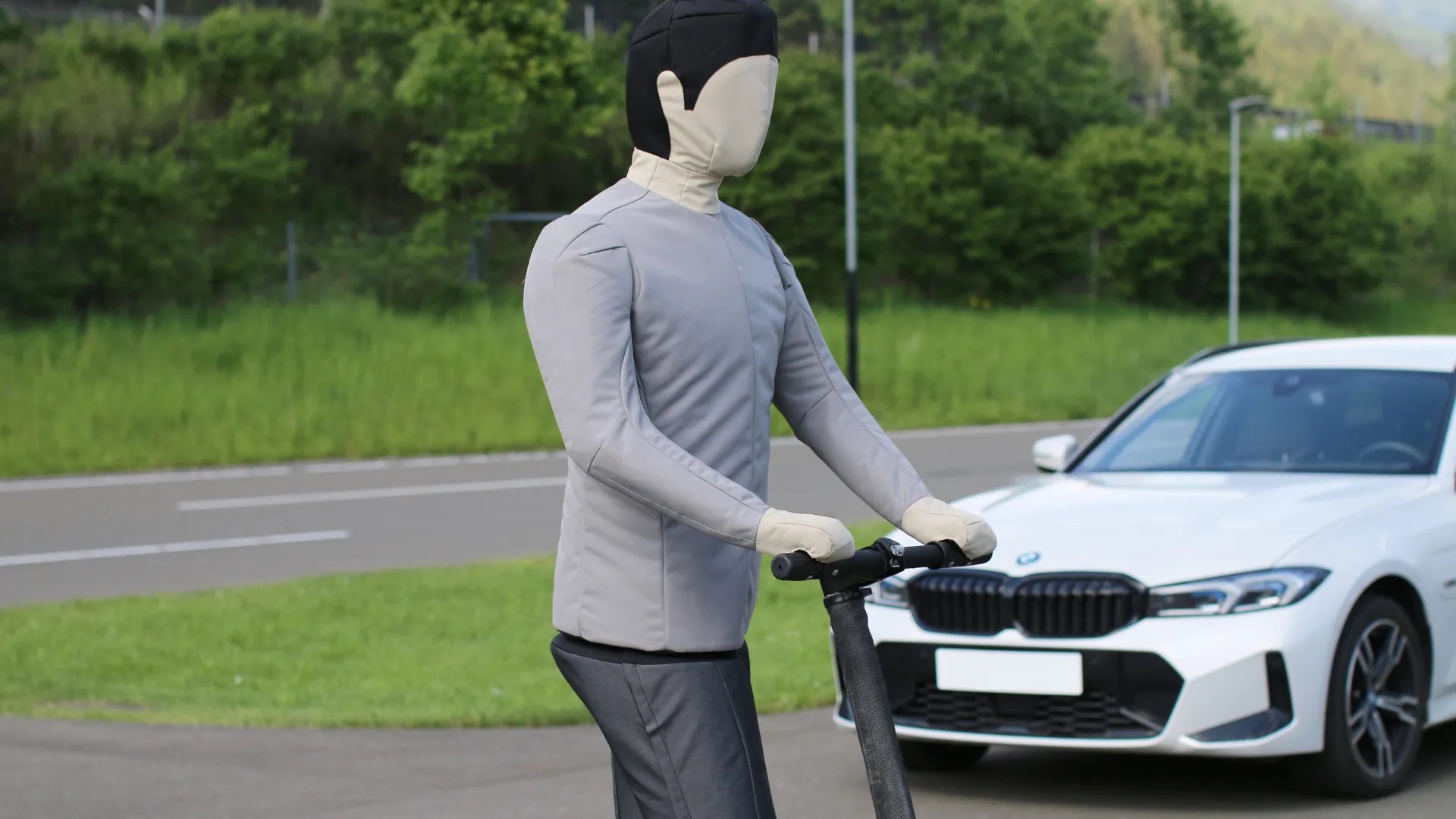

Nowadays a familiar sight in cities, these kick scooters are subject to potentially dangerous situations. Due to their higher speeds and them moving close to parking lanes, “dooring” is often a major cause for serious injuries. The Electric Kick Bike is designed for potential future Euro NCAP scenarios.

To take action against rising numbers in accidents, we did not hesitate to start developing an active safety dummy for this specific field. Thanks to our many years of experience in the field of radar characteristics, radar detection and implementation, we have produced the only scooter target on the market with “Micro-Doppler” properties.

This target stands out with its robust design, light weight, perfect radar properties and the ingenious crash concept; which makes it crash-able but still very durable, even at higher speeds. Night tests can be achieved easily with a heated version of our Electric Kick Bike dummy. In addition, we offer this dummy in a variety sizes as well as colors.This dummy is also compatible with with the LP Series from AB Dynamics
Key Features
designed according to related ISO-standards
realistic response for Radar-, Lidar, Camera and IR-Systems
absolutely waterproof - testing under rainy conditions
soft structure to prevent damage on VUT
easy and fast change of spare parts
Technical Information
Performance
mono/stereo camera system, Lidar sensors Yes
360° - Radar characteristic Yes
micro-Doppler spread Yes
near infrared / far infrared (optional) Yes
ultra-sonic Yes
crash speed up to 60km/h
operation speed up to 10km/h
Dimensions adult
body height 1685mm
shoulder width 425mm
head width 160mm
weight < 4kg
Dimensions scooter
total height 1170mm
total width 486mm
footboard height 150mm
wheel base 915mm
wheel diameter 203mm
Downloads
Brochure
