Articulated Pedestrian Test Dummy

Articulated Pedestrian Test Dummy

Advanced Articulation

Robust Foam Body

Technical Information

Product overview

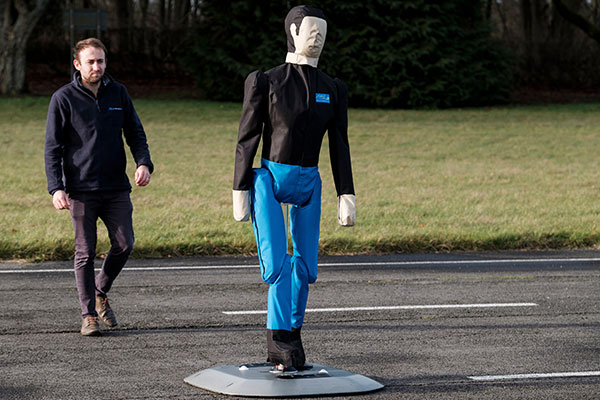

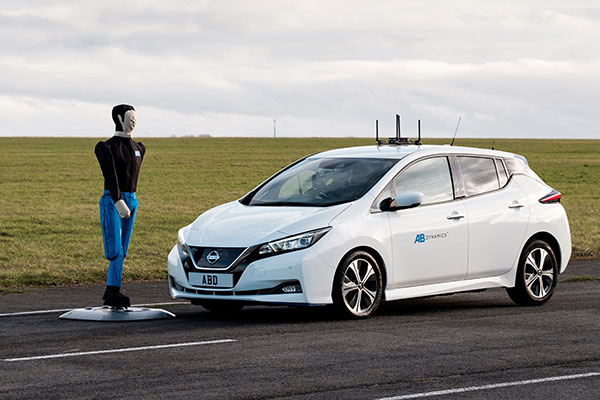

Developed by DRI, the Soft Pedestrian 360 reimagines the VRU pedestrian target, and its design has been carefully considered to reduce lifespan cost, minimise damage to test vehicles and improve realism. By using the Soft Pedestrian 360 target, the automotive industry can more accurately test the safety of their vehicles and ensure they are future-proofed for increasingly demanding ADAS testing and development activities.

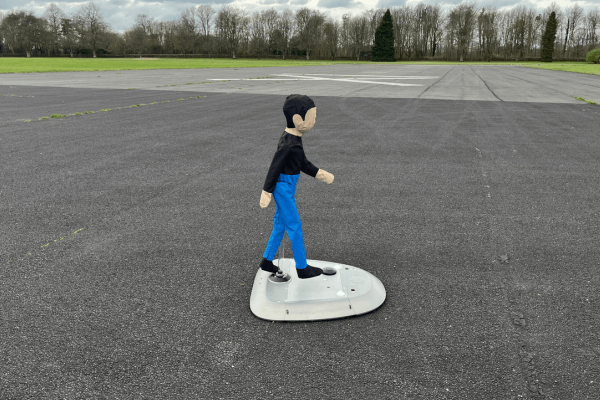

The Soft Pedestrian 360 is available in both adult and child variants, and compatible with the SPT and all our LaunchPad models, including the LaunchPad Spin.

Advanced articulation for more human-like movemen

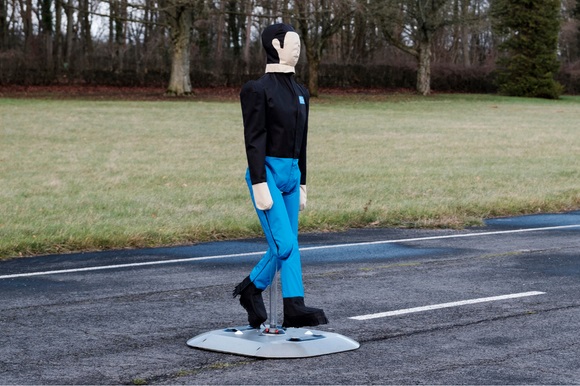

Configurable to allow active articulation of the knee, hip, shoulder and neck, the Soft Pedestrian 360 has been designed with improved sensor perception and categorisation in mind. Its “step-in-sync” gait is automatically synchronised with the target’s position, speed and acceleration, avoiding the “Flintstoning” phenomenon.

Configured as either partially articulated or fully articulated

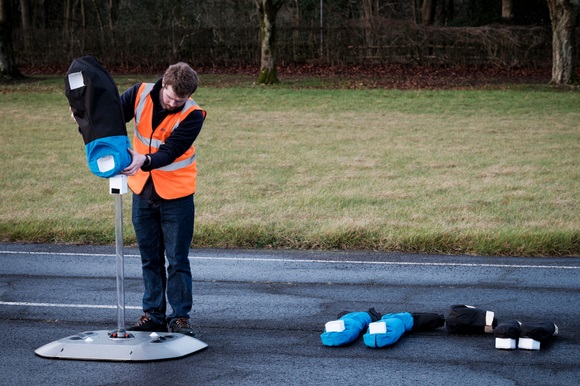

Operators can enjoy increased testing flexibility, as the articulating arms and head can be swapped for static units or changed to increase the variety of testing. Whether conducting NCAP tests or development work, the Soft Pedestrian 360 is a cost-effective and efficient solution for ADAS testing.

Technical Information

Dimensions	Adult	Child
Height	1800 mm	1154 mm
Shoulder width	500 mm	308 mm
Weight	6 kg (fully articulated)	2.6 kg

Performance	Adult	Child
Maximum collision speed	80 km/h	60 km/h

Supported sensor testing	Adult	Child
Ultrasonic	Yes	Yes
Mono/stereo camera	Yes	Yes
Lidar	Yes	Yes
Radar	Yes	Yes
Near infrared	Yes	Yes

Articulation options	Adult	Child
Full	Hip, knee, shoulder, neck	-
Standard	Hip, knee, shoulder	-
Basic	Hip, knee	Hip, knee

Compliance	Adult	Child
Euro NCAP TB029	Yes	In progress
ISO 19206-2	Yes	Yes
