Overview

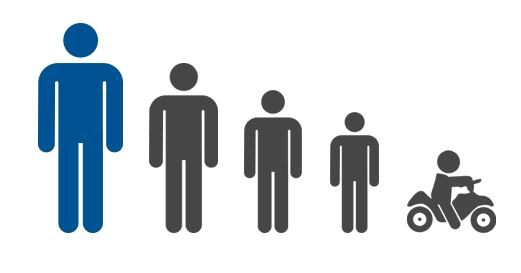

The static pedestrian target is available as 50% adult male, 7-year,
2-year and 1-year old child. These targets replicate human properties in size, shape and realistic sensor response. The robust construction allows testing under rough conditions and the modular system enables an easy and fast change of spare parts.

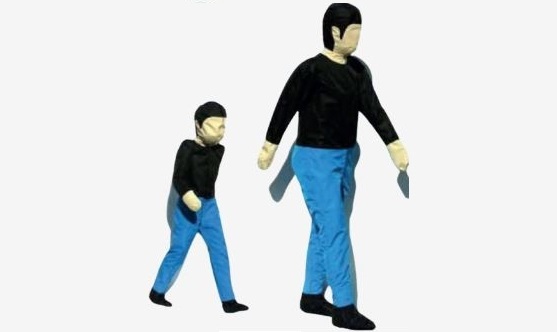

Adult & Child Dummy

Static pedestrian target
· replicates human properties in size, shape and articulation
· check-square complies with ISO 19237, ISO 19206-2, Euro NCAP, JNCAP, …

Allows testing under rough conditions
· check-square extremely light and soft structure to prevent damage on VUT
· check-square robust and modular system - easy and fast change of spare parts
· check-square realistic response for Radar-, Lidar, Camera and IR-Systems

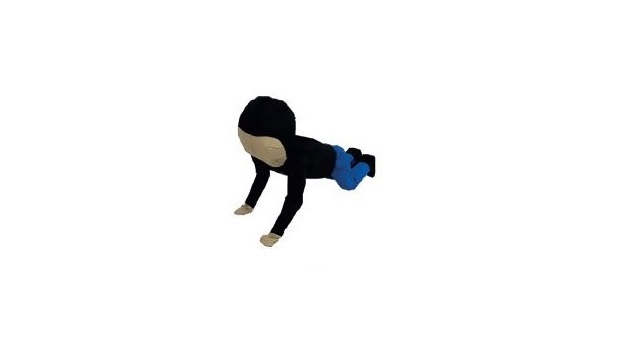

1 Year Child Dummy

1 year child dummy
· for testing automated valet parking systems (AVPS)
· simulates typical postures of a 1 year old child
· complies with ISO 19206-2

Allows testing under rough conditions
· extremely light and soft structure to prevent damage on VUT
· robust and modular system - easy and fast change of spare parts
· realistic response for Radar-, Lidar, Camera and IR-Systems

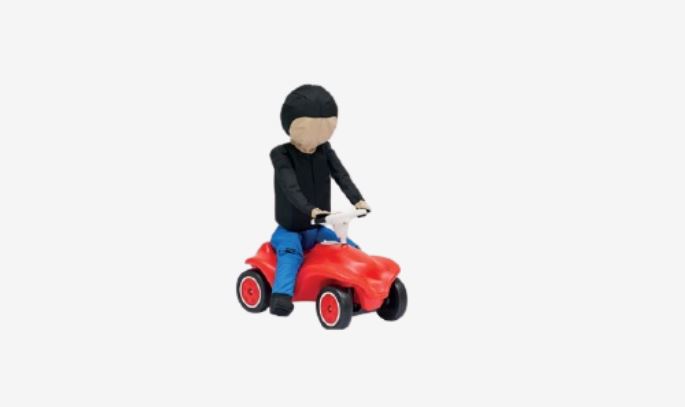

2 Years Child Dummy

2 years child dummy
· for testing automated valet parking systems (AVPS)
· simulates typical postures of a 2 years old child
· complies with ISO 19206-2

Allows testing under rough conditions
· extremely light and soft structure to prevent damage on VUT
· robust and modular system - easy and fast change of spare parts
· realistic response for Radar-, Lidar, Camera and IR-Systems

Technical Information

Model	Adult	Child	2 years child	1 year child
Body height	1800mm	1154mm	865mm	658mm
Shoulder width	500mm	298mm	232mm	172mm
Torso angle	85°	78°	85°	85°
Weight	< 4kg / 7.5kg	< 2kg / 4kg	< 2kg	< 2kg
mono/stereo camera system Lidar sensors 360° - Radar characteristic micro-Doppler spread near infrared (far infrared ) ultra-sonic	Yes	Yes	Yes	Yes
Crash speed	up to 60km/h	up to 60km/h	up to 60km/h	up to 60km/h
Operation speed	up to 10km/h	up to 10km/h	up to 10km/h	up to 10km/h
