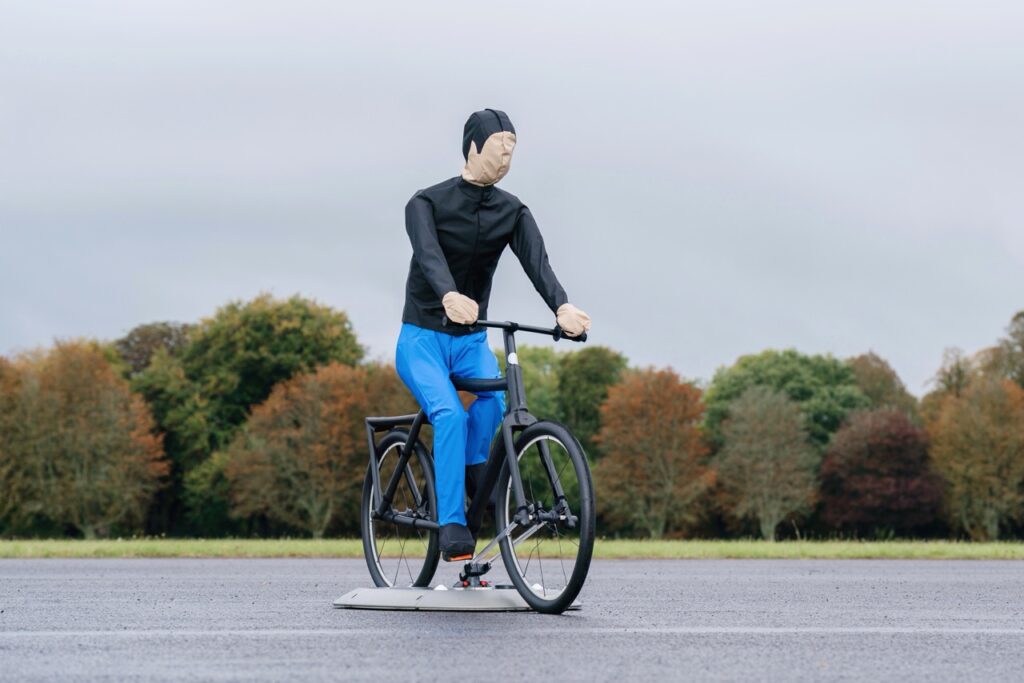

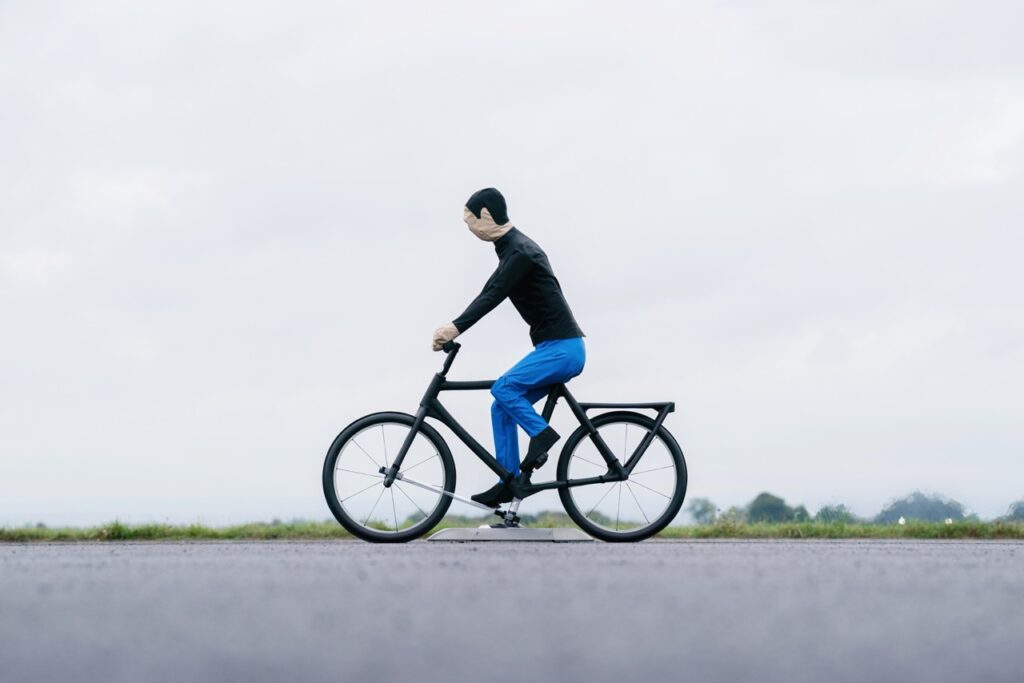

Soft Bicycle 360
Overview
The Soft Bicycle 360 target from DRI aligns with growing concerns about cyclist safety. As cyclist fatalities continue to rise worldwide and regulatory bodies such as Euro NCAP expand scenarios involving cyclists, the need for a reliable and innovative ADAS bicycle target has never been greater.

The Soft Bicycle 360’s design focuses on realism and minimising damage to vehicles under test. By being compact, lightweight and robust, the Soft Bicycle 360 increases test efficiency and uptime so you can conduct more tests without interruption.

Developed by the same team from DRI that brought us the iconic Soft Car 360® and Soft Pedestrian 360TM, the Soft Bicycle 360 is the result of years of real-world testing experience gained working with the world’s leading OEMs and the NHTSA.
Key Features
30% lighter than comparable bicycle targets

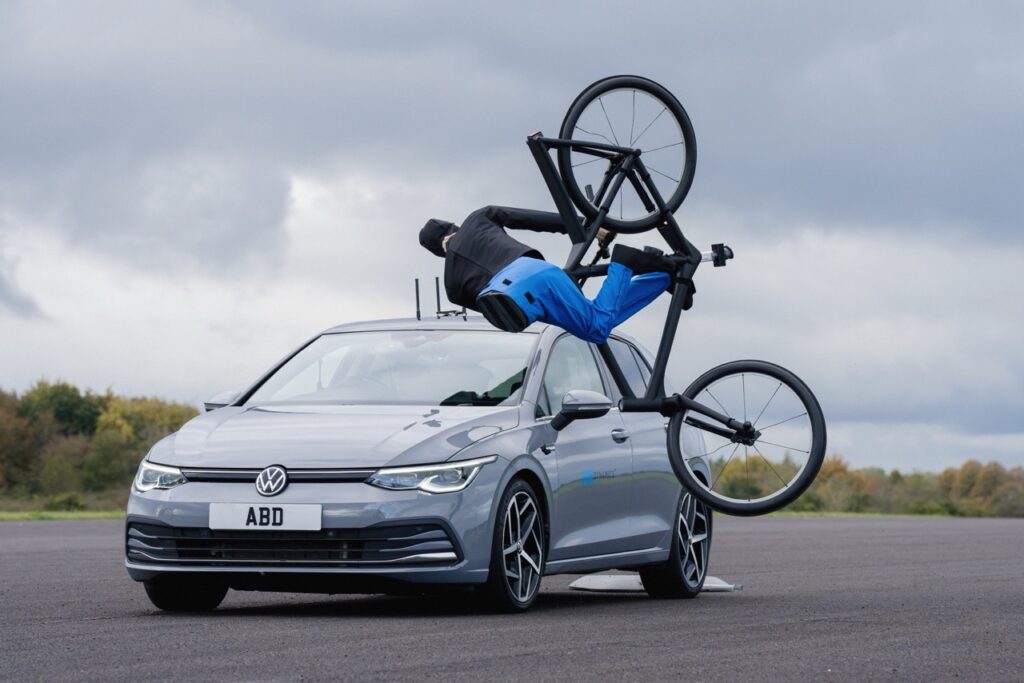

Soft structure and light weight minimises target and test vehicle damage
Durable nylon hub and spoke wheel design with soft protruding tyres
Rotating wheels provide speed-matched Doppler effect for radar sensors
Smooth reverse running for easy repositioning
Stable at up to 40 km/h when paired with LaunchPad™
Less than 3 minute rebuild time
Complies with 19206-4 requirements for bicyclist targets
Modular design for easy reassembly
Moulded rubberised single piece frame with internal reinforcement
Technical Information
Dimensions
Wheelbase 1210mm
Wheel diameter 680mm
Weight 8.2kg
Performance
Maximum speed at which target is stable 40km/h
Supported sensor testing
Micro-doppler Yes
Camera Yes
Lidar Yes
Radar Yes
Compliance
Euro NCAP Submission pending
ISO 19206-4 Yes
Downloads
Brochure
