RBR1500

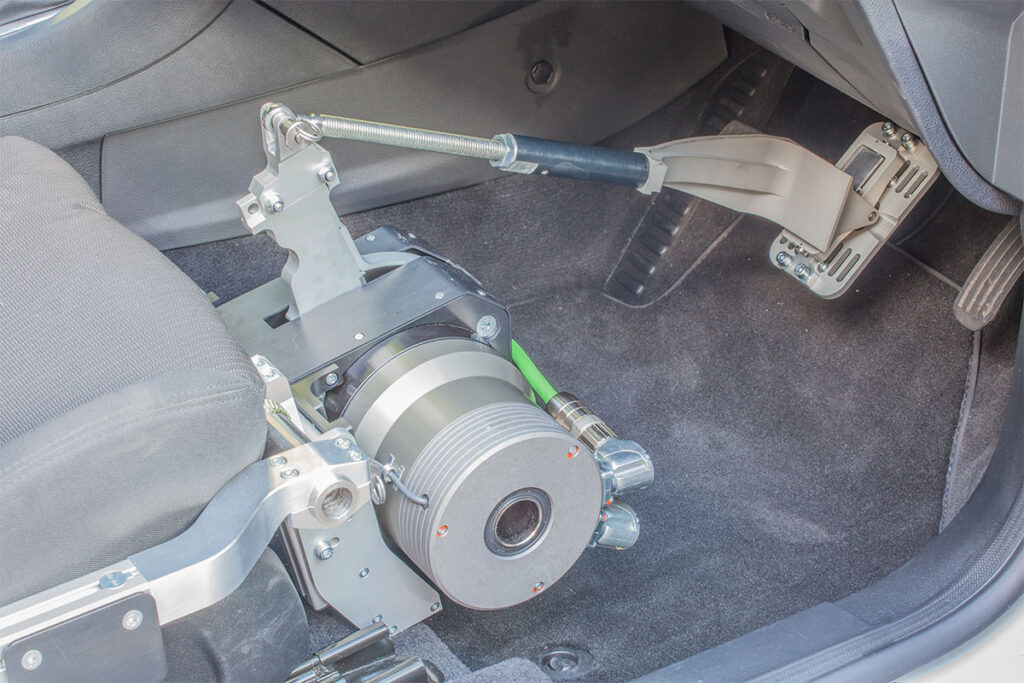

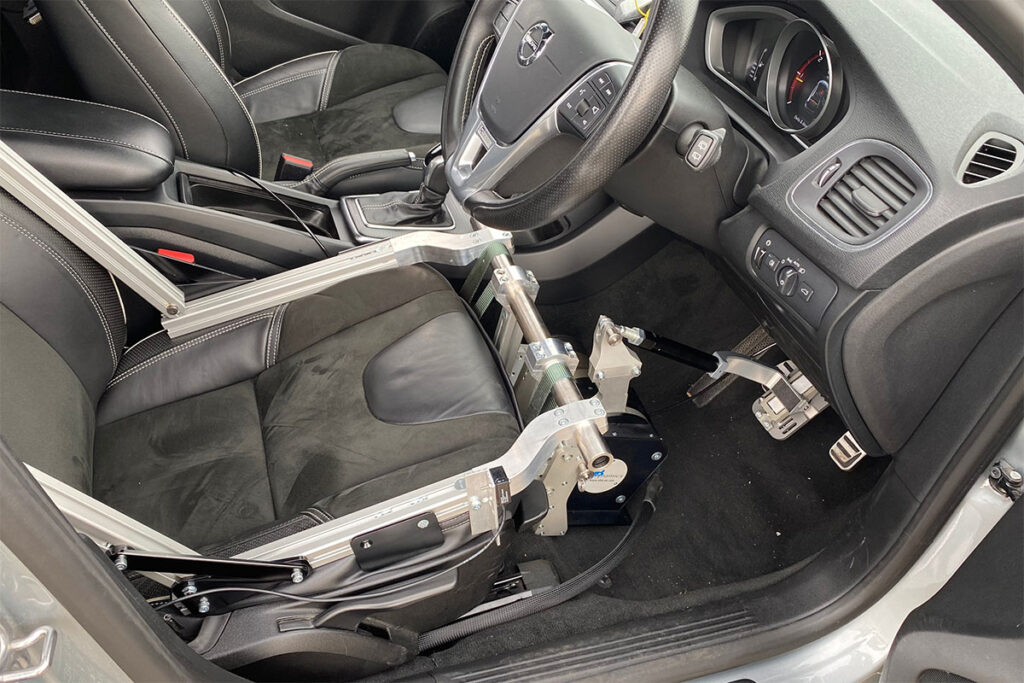

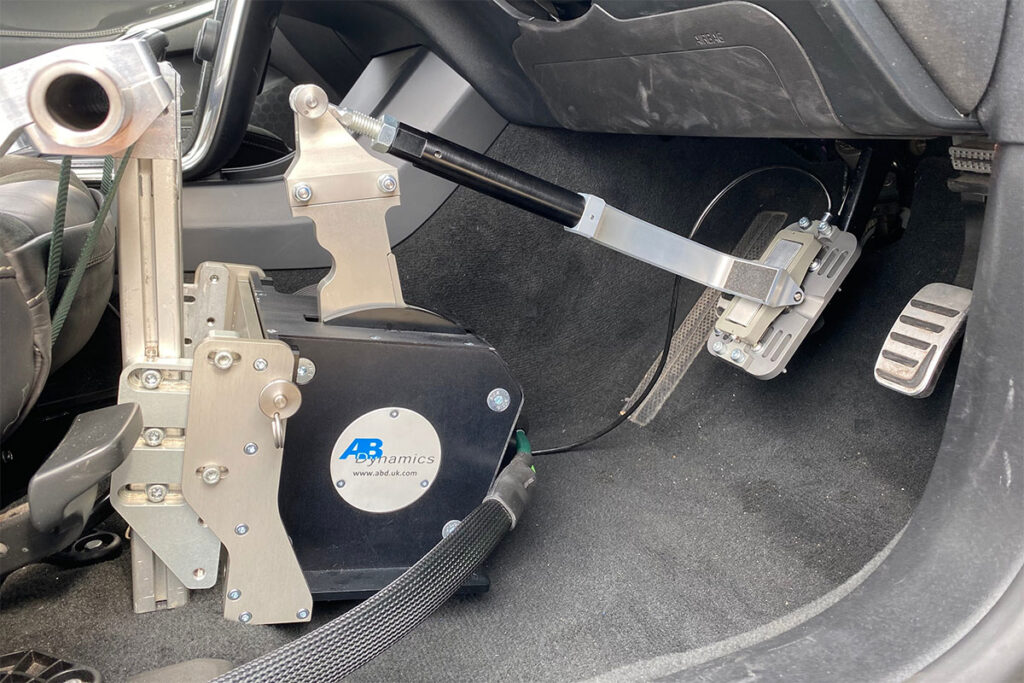

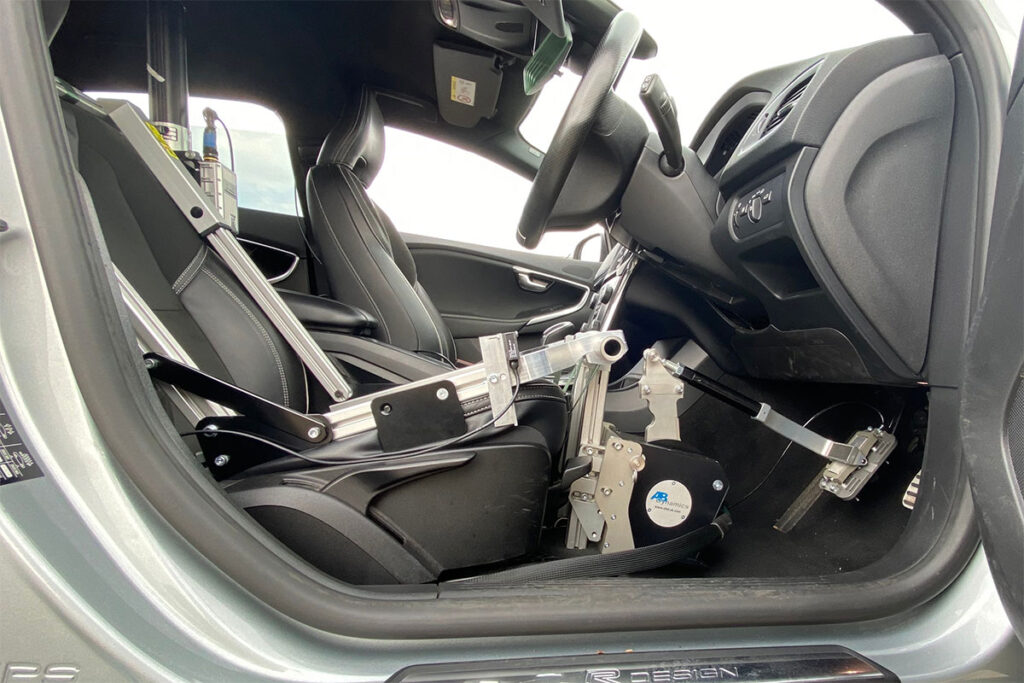

Developed for aggressive brake stop testing, this floor mounted brake actuator has the capability to accurately apply the brake pedal with a force of up to 1600 N
Capable of applying a pedal force of 1600 N at rate of 800 mm/s, the Rotary Brake Robot (RBR) 1500 is ideal for all brake applications, especially those that require high pedal forces such as system failure testing. With its ultra-powerful rotary actuator, the RBR 1500 can push the pedal faster and harder than most human drivers, ensuring consistent and realistic results.

Setup and control of the RBR is provided by our Robot Control (RC) Software. This software provides a user-friendly interface where predefined templates can be selected, which can then be configured to suit the users required pedal input. Control of the pedal input can be selected from stroke, force, acceleration, or mixed mode where the robot can swap is control parameter if required, giving the user the ability to input almost any pedal application. This functionality makes the RBR perfect tool for all brake tests.
Technical Information
Model RBR 1500 Robot
Maximum apply force 1600N
Apply rate at max force 800mm/s
Maximum apply rate 1600mm/s
Apply force at max apply rate 200N
