CBAR600L
Offering the same brake performance as the CBAR 600 but in a more compact package, the CBAR 600L is ideal for AEB tests and other ADAS testing

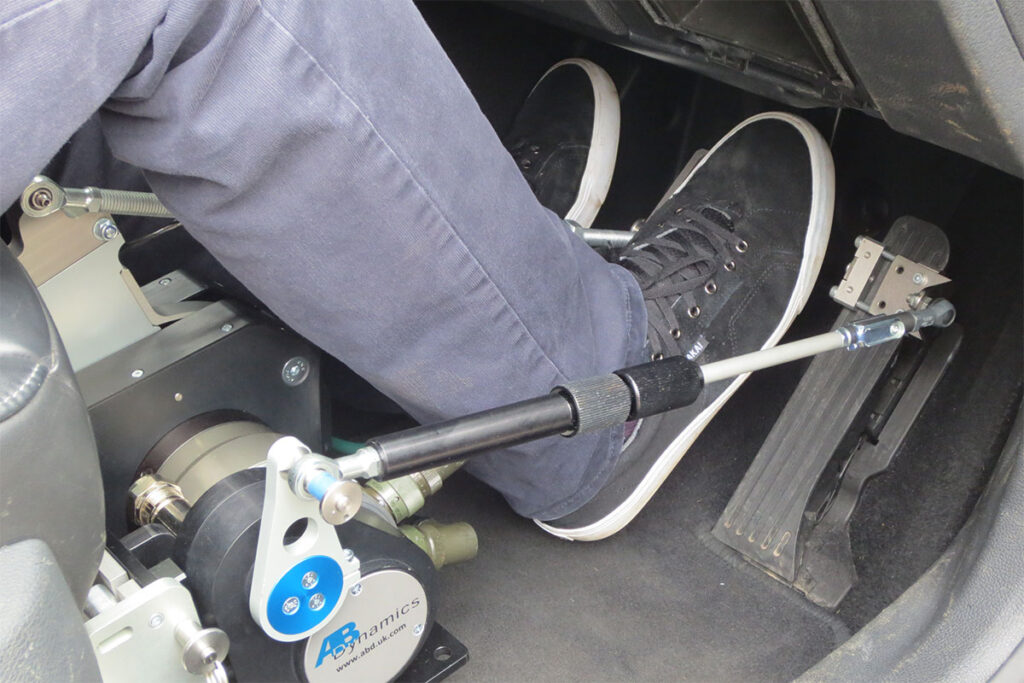

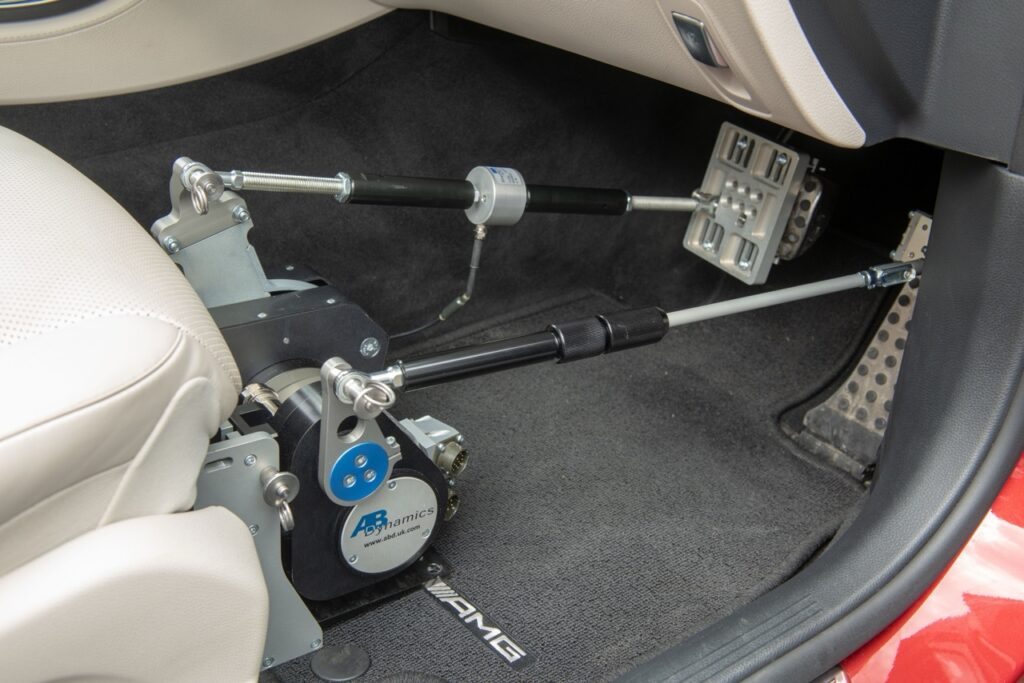

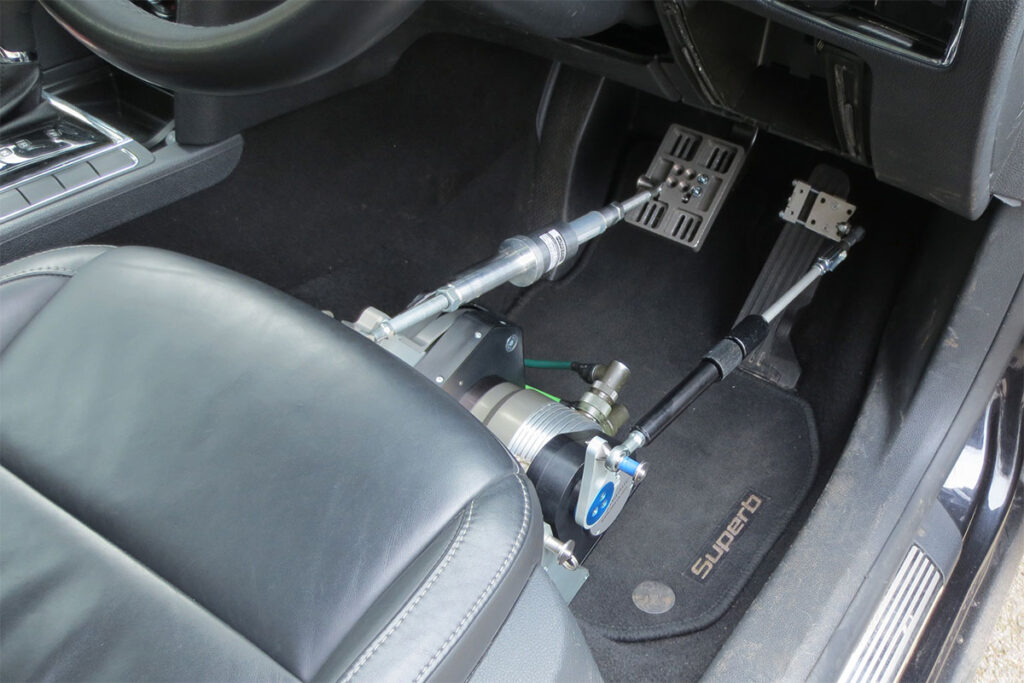

With a lower-profile actuator for improved driver ergonomics, the Combined Brake and Accelerator Robot (CBAR) 600L is a development of the original CBAR 600. With a more compact footprint, it is more comfortable for a driver, especially in vehicles with lower seating positions.

Like the CBAR 600, the CBAR 600L can perform vehicle speed control tests with precision, reliability, and efficiency, and can also be easily configured and controlled with our RC Software, which offers predefined templates for C-NCAP, Euro NCAP, JNCAP, NHTSA test scenarios and UN requirements, as well as custom options. Not only does this functionality save time and effort for the operator but also gives more flexibility and control over test criteria.
Technical Information
Model CBAR 600L Robot
Maximum brake apply force 750N
Apply rate at max force 1000mm/s
Maximum apply rate 1300mm/s
Apply force at max apply rate 500N
Maximum throttle force 175N
Maximum throttle speed 715mm/s
Maximum throttle stroke 125mm
Typical use cases Steering feel, handling dynamics,
NCAP assessment, anti-lock braking,
EV and hybrid evaluation, brake feeling development and brake assist
