CBAR1000

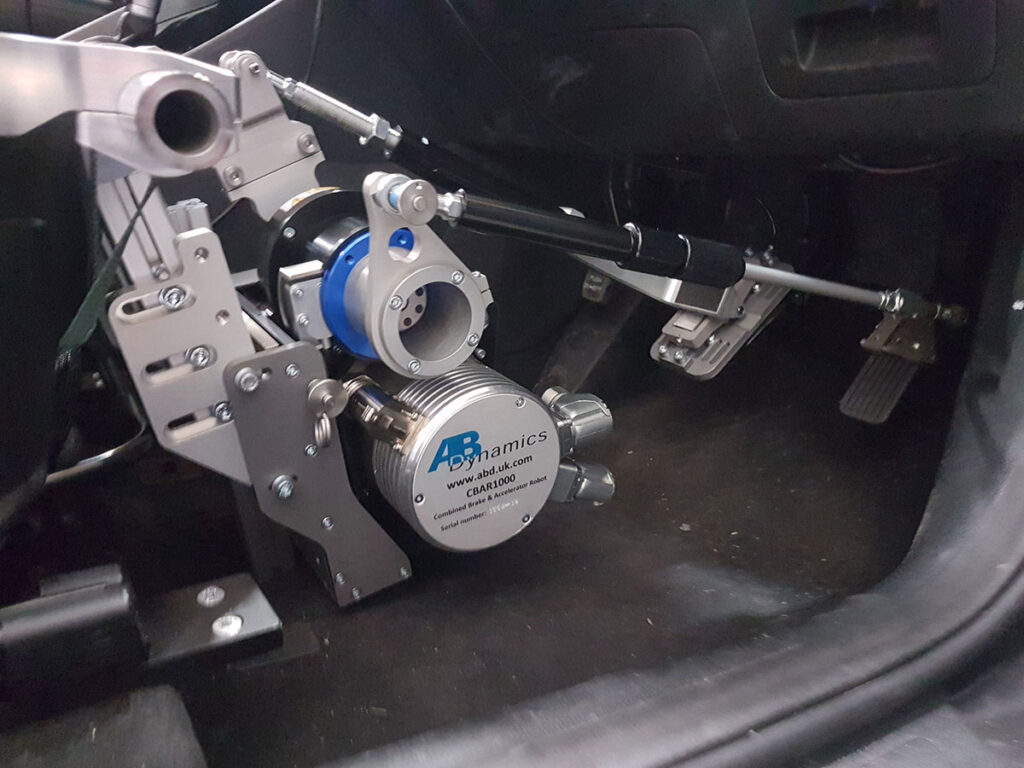

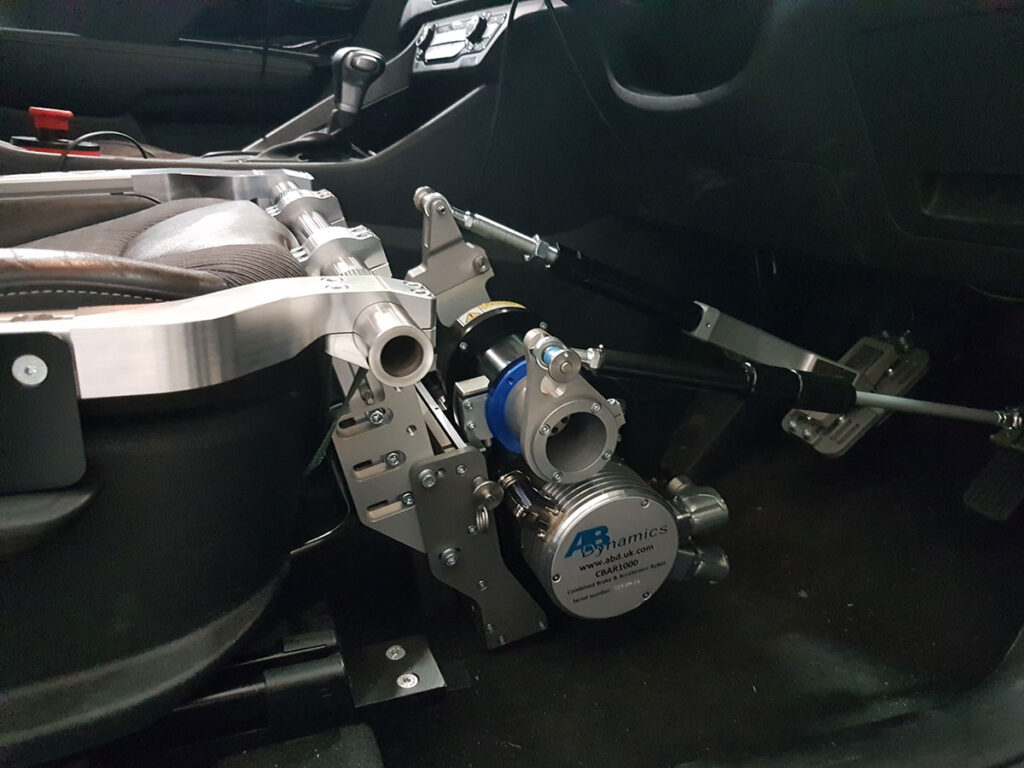

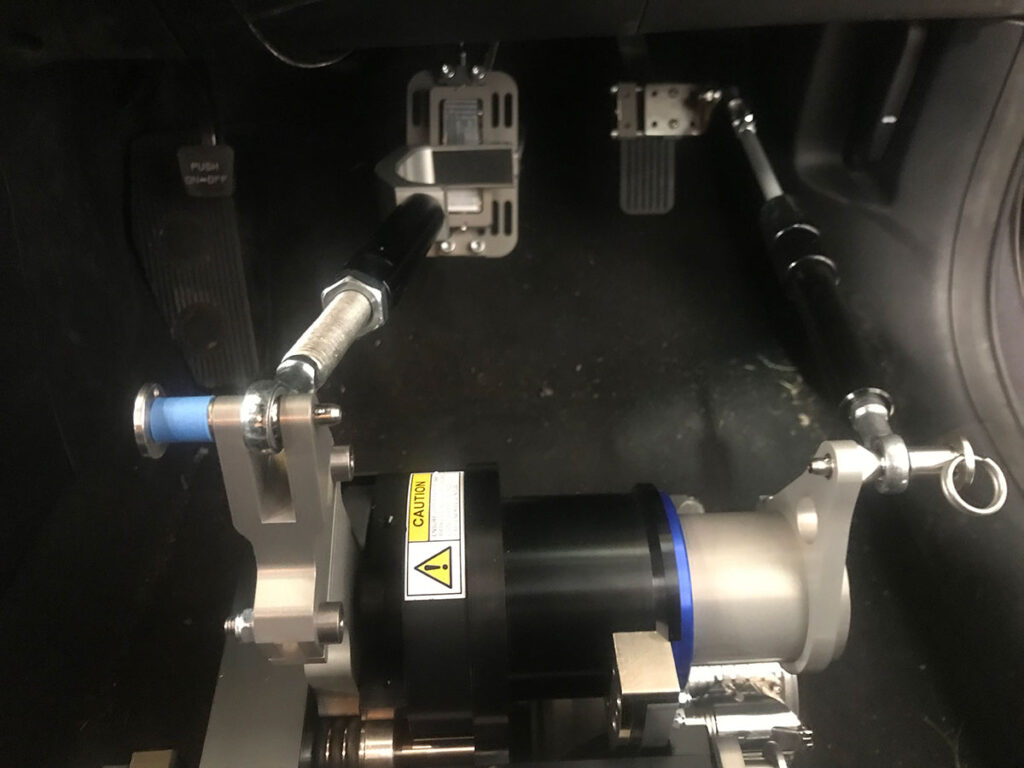

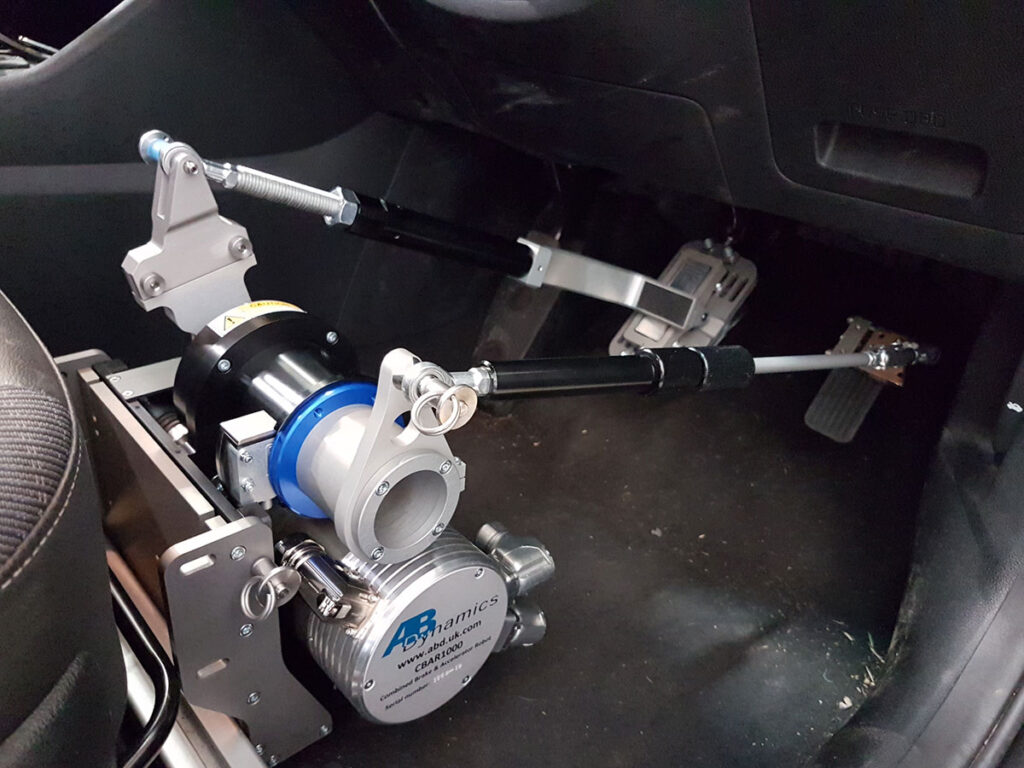

A powerful and reliable robot, the CBAR 1000 can perform various brake and speed control tests
Where more brake force is needed, the Combined Brake and Accelerator Robot (CBAR) 1000 - the big brother of the CBAR 600 - has enough power for aggressive brake testing. The CBAR 1000 has been specifically designed for high-performance vehicles that require high brake forces and high pedal speeds, delivering up to 1300 N of brake force and 800 mm/s of pedal speed. With the addition of an optional safety brake, the CBAR 1000 can be used for driverless applications.

This pedal robot is also suitable for general speed control use and ADAS testing, and like the CBAR 600, the CBAR 1000 shares a floor mounted actuator design and can also be easily configured and controlled with our RC Software, which offers predefined templates for for C-NCAP, Euro NCAP, JNCAP, NHTSA test scenarios and UN requirements, as well as custom options. Not only does this functionality save time and effort for the operator but also gives more flexibility and control over test criteria.
Technical Information
Model CBAR 1000 Robot
Maximum brake apply force 1300N
Apply rate at max force 1000mm/s
Maximum apply rate 1500mm/s
Apply force at max apply rate 300N
Maximum throttle force 200N
Maximum throttle speed 650mm/s
Maximum throttle stroke 125mm
Typical use cases Steering feel, handling dynamics,
NCAP assessment, anti-lock braking,
EV and hybrid evaluation, brake feeling development and brake assist
