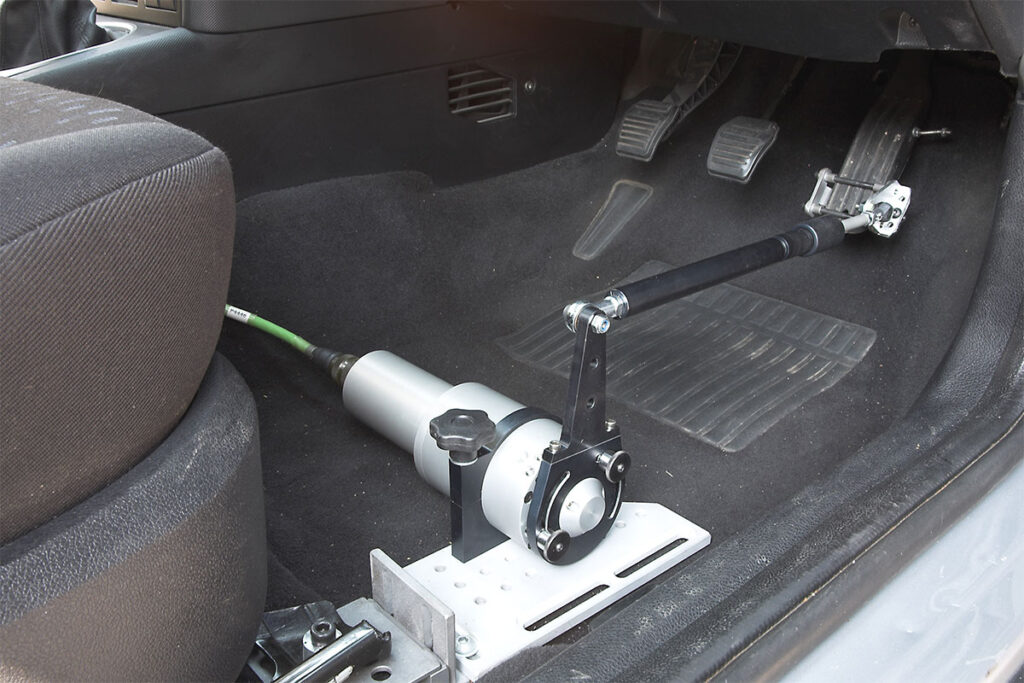

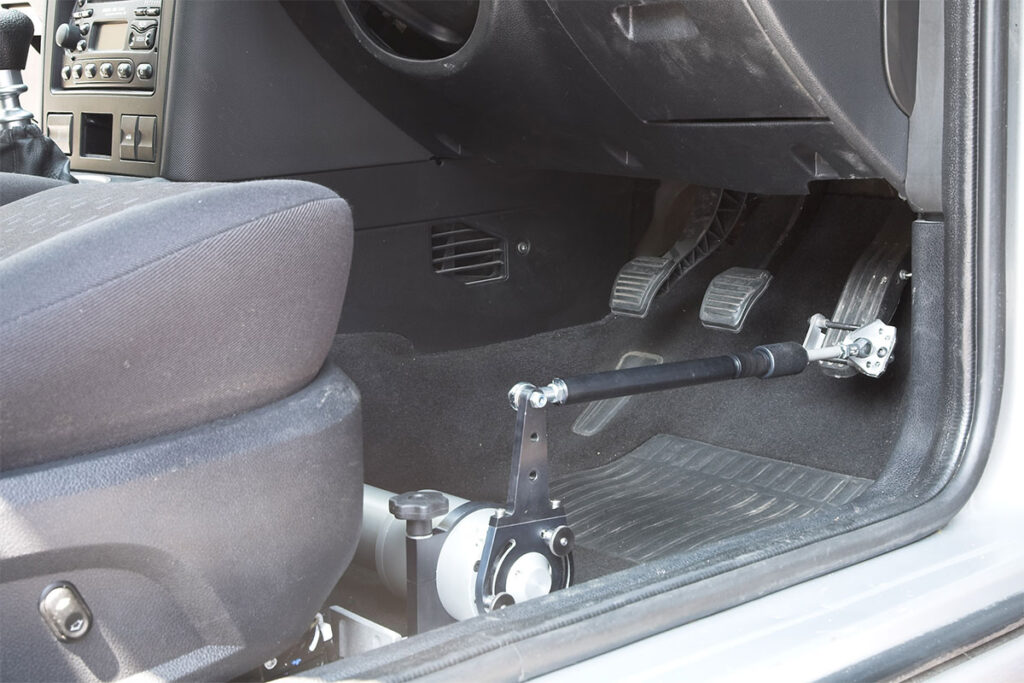

Accelerator Robot
Controlling either throttle pedal position or vehicle speed, the AR Accelerator Robot uses a compact rotary actuator to control throttle pedal with precision and accuracy
The AR Accelerator Robot is adjustable to fit in most vehicles and can be used in both right- and left-hand drive cars. When installed, it also allows normal driving by a driver. Used together with a steering robot and our Path Following software, the AR can reproduce the speed profile of a human driver, for example in laps of a circuit. Another typical application is the control of entry speed to a steering or braking test, with reduced throttle during the test. And like our other pedal robots, the AR is easily configured and controlled with our RC Software, which offers predefined templates for C-NCAP, Euro NCAP, JNCAP, NHTSA test scenarios and UN requirements, as well as custom options.
Technical Information
Model Accelerator Robot
Max force 150N
Max speed 300mm/s
Max pedal stroke 130mm
Downloads
Brochure
