The future of VRU testing today

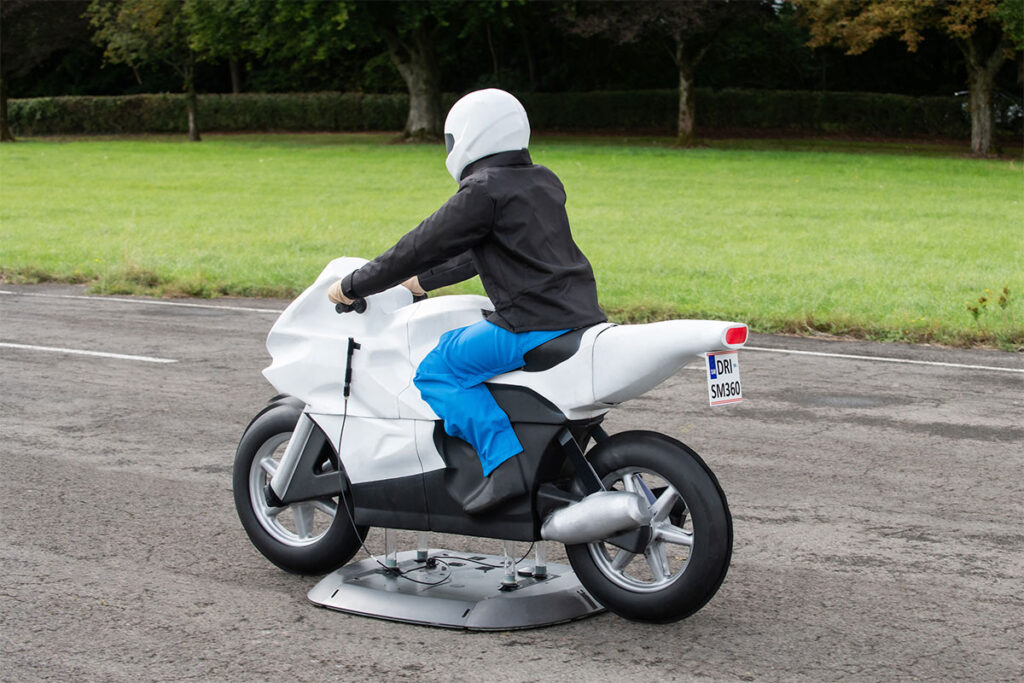

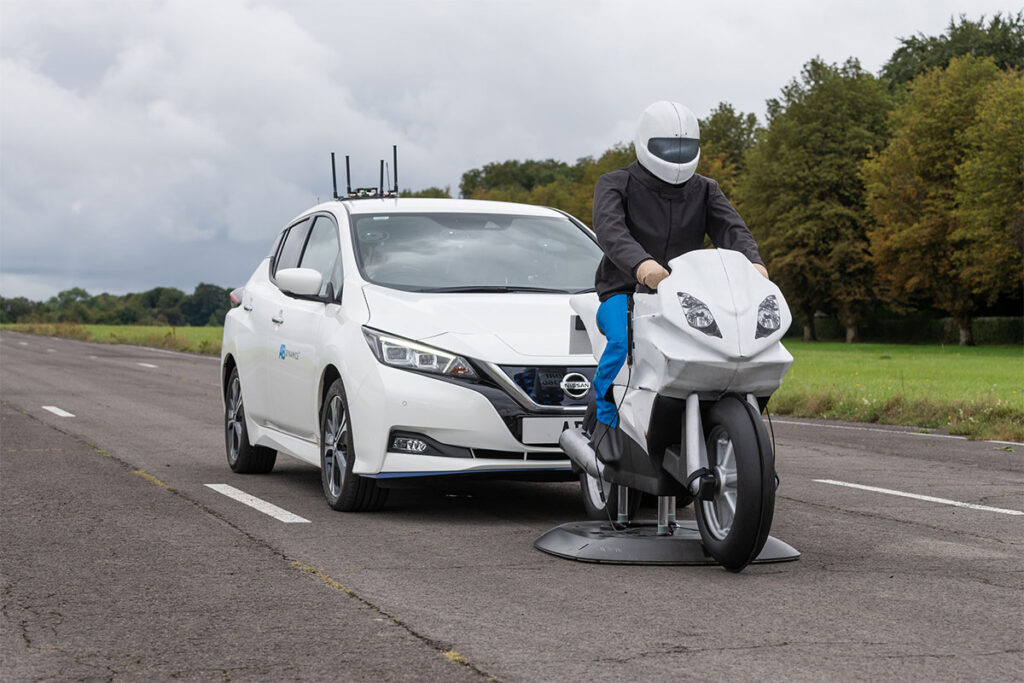

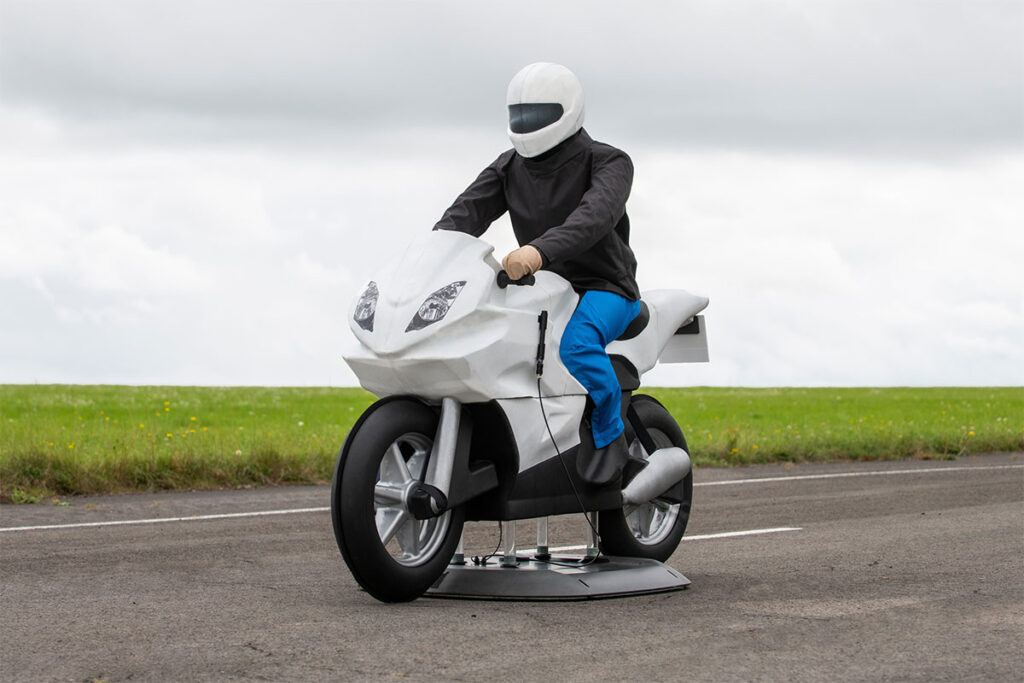

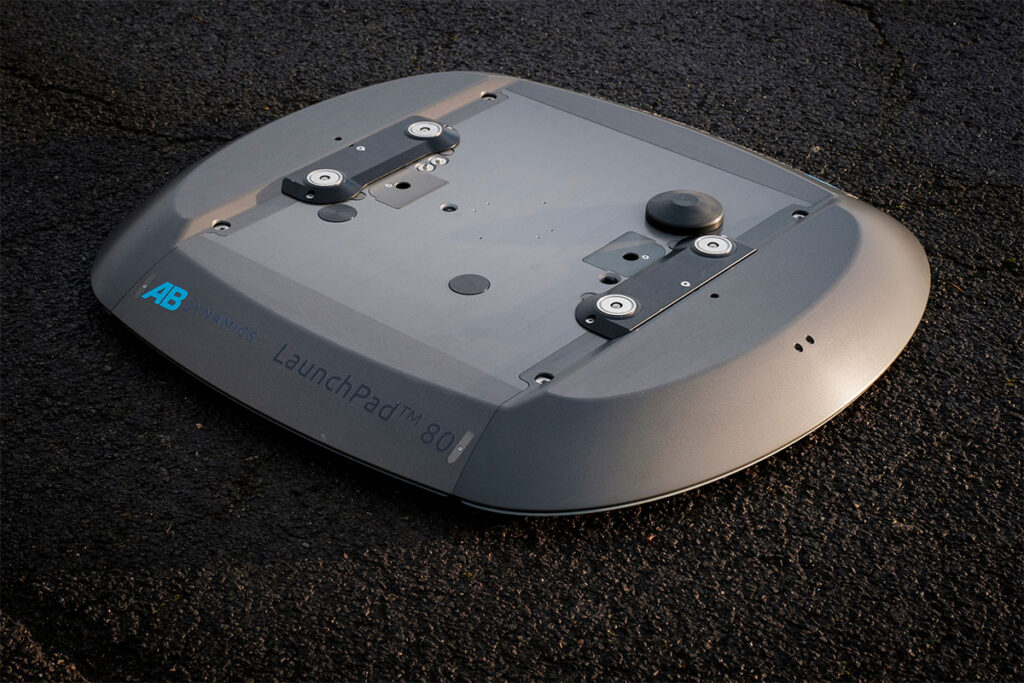

The LaunchPad 80 is the ultimate platform for realistic and reliable testing with motorcycle test objects. It can reach speeds of up to 80 km/h and brake at 0.6 g, simulating the dynamic behaviour of a real motorcycle and complies with the 2023 Euro NCAP AEB/LSS protocols, which require high-speed ADAS testing with motorcycle targets. The LaunchPad 80 platform is also certified by Euro NCAP and works seamlessly with the Soft Motorcycle 360, a realistic and durable motorcycle surrogate target. Together with our RC software, they form a complete and integrated solution for Euro NCAP motorcycle test scenarios, ensuring accurate and repeatable results.

Technical Information

Model	LaunchPad 80
Dimensions	1045 x 960 x 80mm
Weight(approx.)	75kg
Weather resistance	Fully sealed electronics waterproof to IP67
Maximum speed	80km/h
Maximum acceleration(excluding target)	3m/s²
Payload	Maximum 15 kg motorbike moped
Compliance (Euro NCAP TB 029)	Yesh
