LP-Spin
Revolutionising your VRU testing with 360-degree mobility

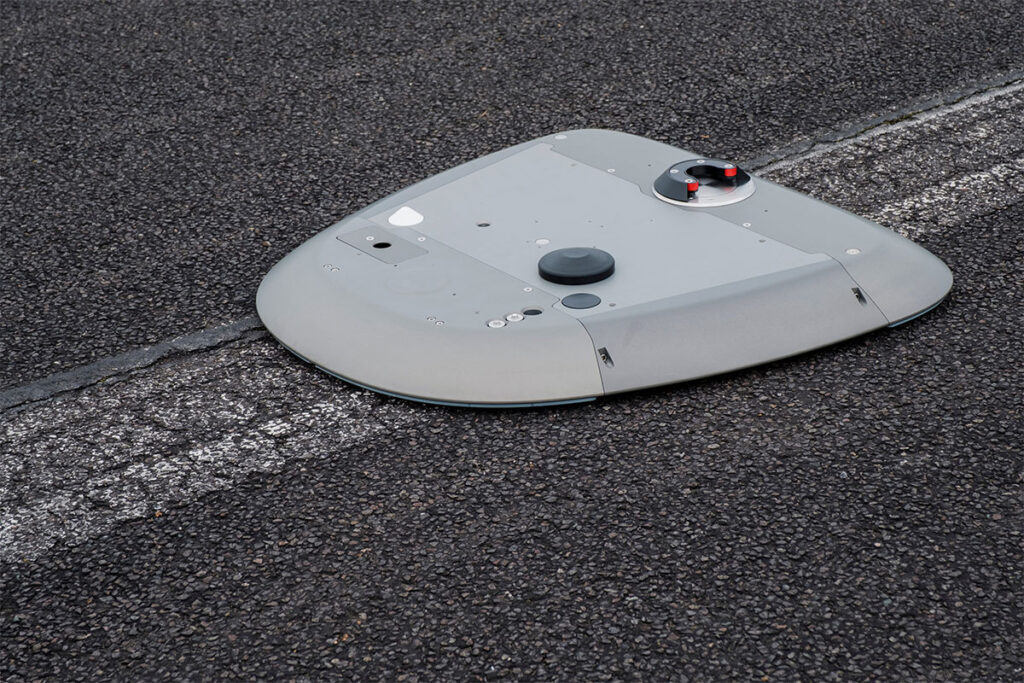

The latest addition to the LaunchPad range, the LaunchPad Spin is a third-generation platform that brings new levels of manoeuvrability to VRU testing. Developed to replicate challenging urban scenarios, its turn?on?the?spot, single-wheel steering gives it the ability to rotate 360 degrees in an instant, so your testing can closely replicate the rapid changes in direction that are common to real-world pedestrian behaviour. Plus, its top speed of 30 km/h also makes it capable of testing scenarios involving cyclists and standing e-scooters.

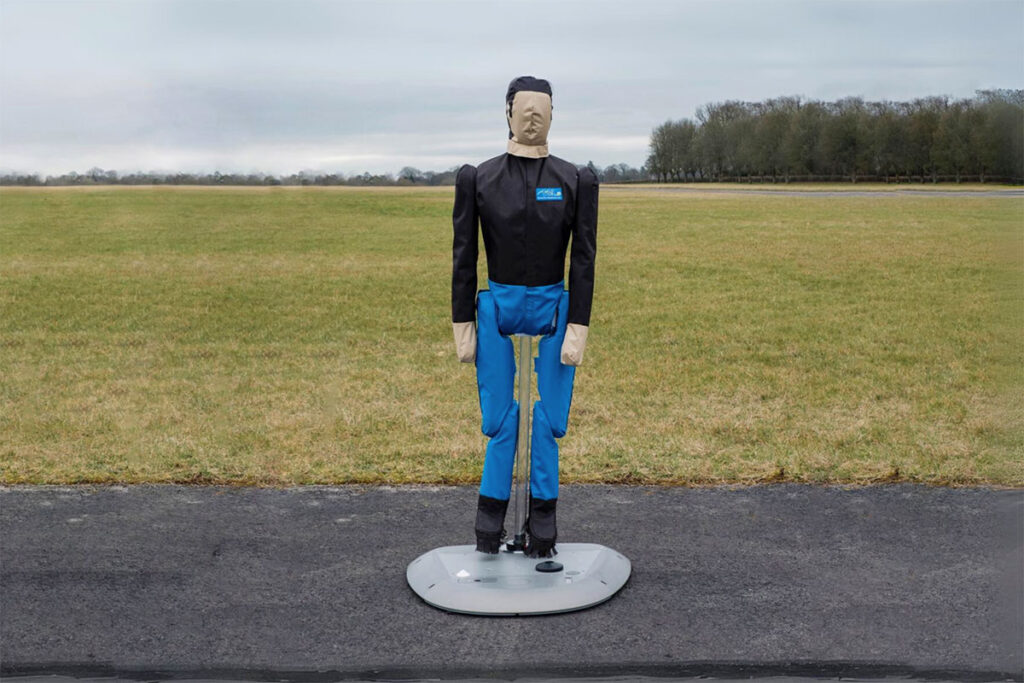

The LaunchPad Spin is a vital tool to enable your development programme to make the jump from basic regulatory testing of ADAS functionality to the sophisticated perception and classification required by autonomous systems. Compatible with the Soft Pedestrian 360, the LaunchPad Spin is future-proofed for increasingly sophisticated ADAS testing and development.
Technical Information
Model LaunchPad Spin
Dimensions 892 x 868 x 65mm
Weight(approx.) 45kg
Weather
resistance
Fully sealed electronics
waterproof to IP67
Maximum speed 30km/h
Maximum acceleration(excluding target) 3m/s2
Payload Pedestrians, cyclists
e-scooters, animals. Maximum 15kg
Compliance (Euro NCAP TB 029) Yes
