Technical Information

Compact VRU test platform

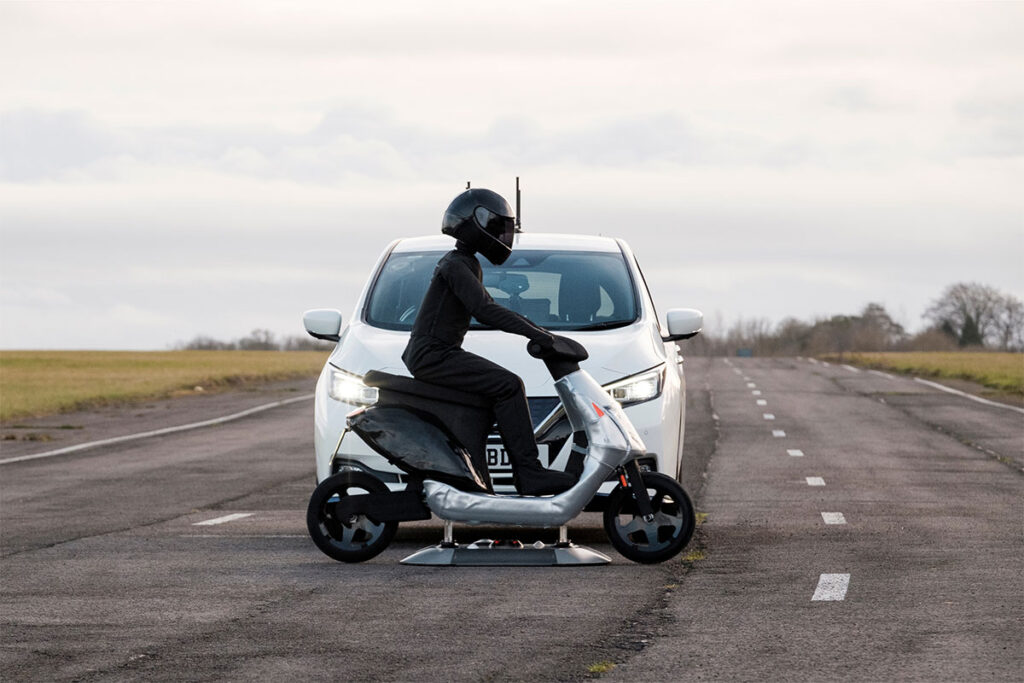

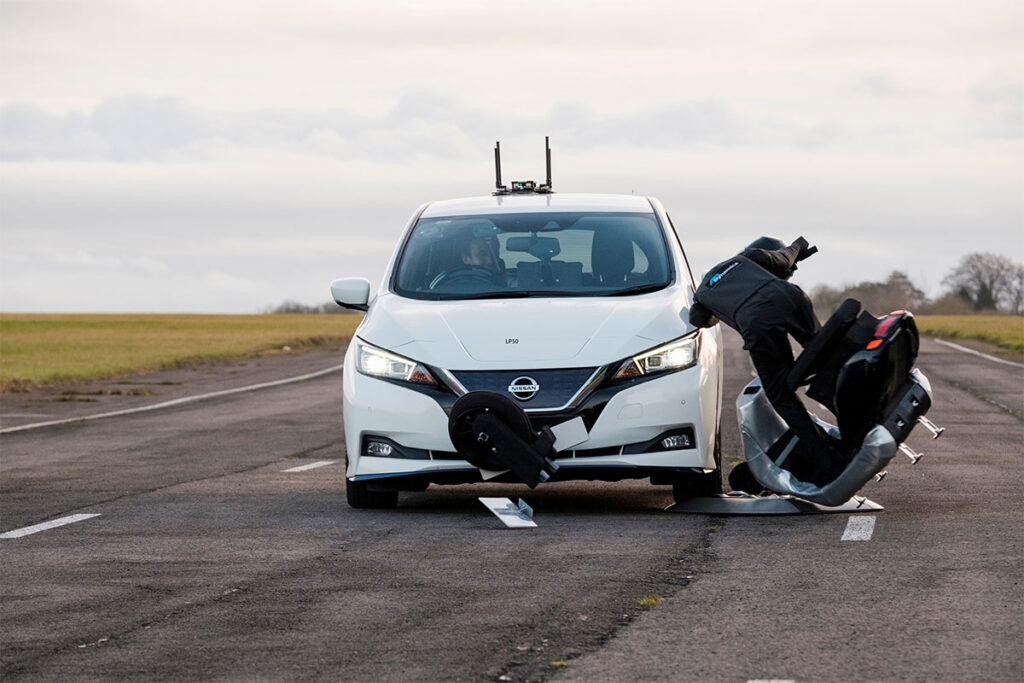

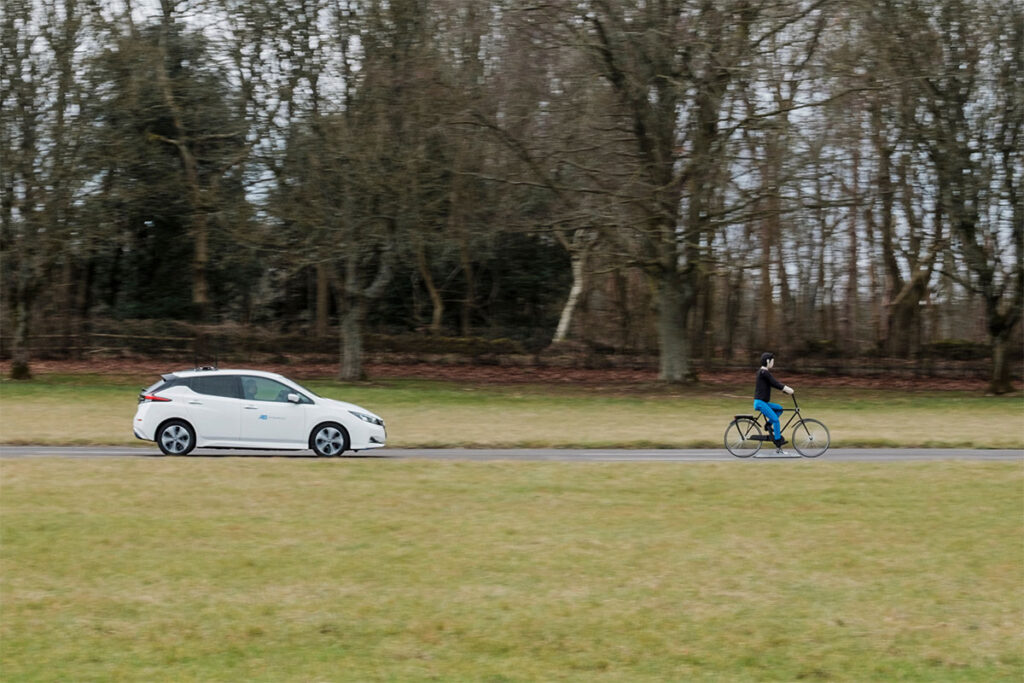

The LaunchPad 50 and LaunchPad 60 are mid-speed platforms designed to carry Vulnerable Road User (VRU) targets for ADAS and AV development and testing. With precise speed control and full path following capability, the LaunchPad can be used with pedestrian, cyclist, moped and motorcycle dummies. With top speeds of 50 km/h and 60 km/h respectively the products are ideal for creating and testing realistic urban scenarios.

Our advanced Synchro control capabilities allow the LaunchPad’s motion to be accurately synchronised with the vehicle under test and other ADAS targets.

Technical Information

Model	LaunchPad 50	LaunchPad 60
Dimensions	917 x 875 x 65mm	917 x 875 x 65mm
Weight(approx.)	40kg	40kg
Weather resistance	Fully sealed electronics waterproof to IP67	Fully sealed electronics waterproof to IP67
Maximum speed	50km/h	60km/h
Maximum acceleration(excluding target)	2.5m/s²	4m/s²
Payload	Pedestrian, cyclist motorbike moped, animal Maximum 15kg	Pedestrian, cyclist motorbike moped, animal Maximum 15kg
Compliance (Euro NCAP TB 029)	Yesh	Yesh
