SR150
With unrivalled steering torque the SR 150 can test power-steering failure in heavy vehicles as required for UNECE R79. The robust and reliable design makes it the ideal partner for heavy vehicle testing

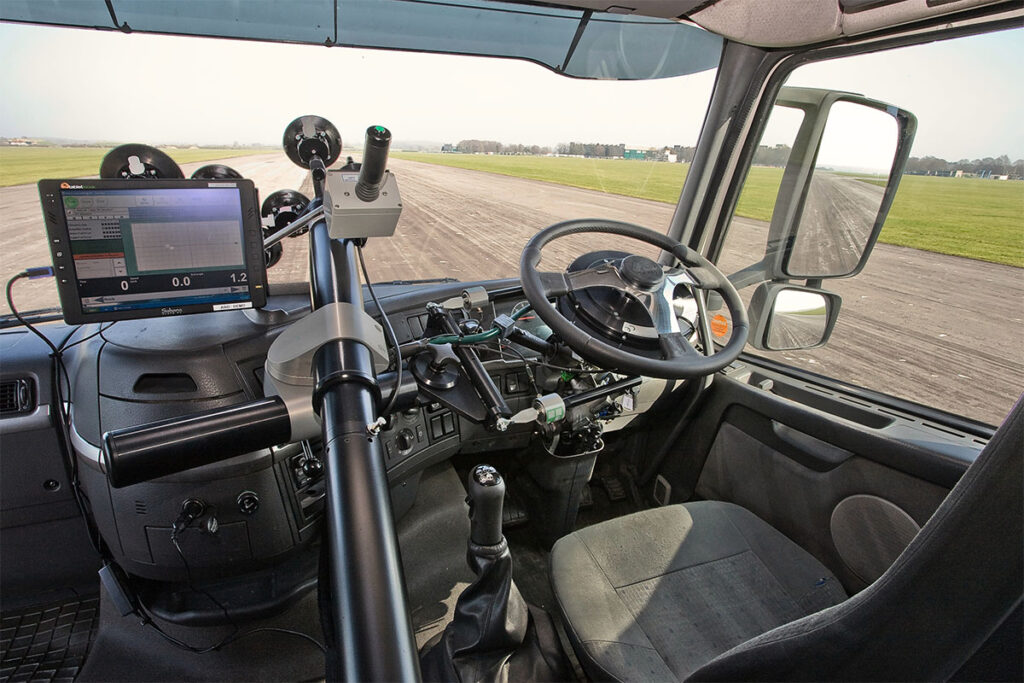

A testament to our commitment to developing cutting-edge solutions for heavy vehicle testing, the SR 150 was designed for testing power-failure situations in trucks and buses - a common homologation requirement - meaning that is has the highest torque of any of our robots. The SR 150 can also be used for a wide range of other handling tests.
Technical Information
Model SR 150 Steering Robot
Direct drive motor Yes
Hollow for use with airbag in place No
Suitable for sine-dwell/fishhook No
Max torque (short duration) 160Nm at 500°/s
Rated torque 150Nm at 550°/s
Max velocity 1500°/s at up to 25Nm
Motor weight 19kg
Suitable for heavy vehicle testing Yes
Downloads
Brochure
