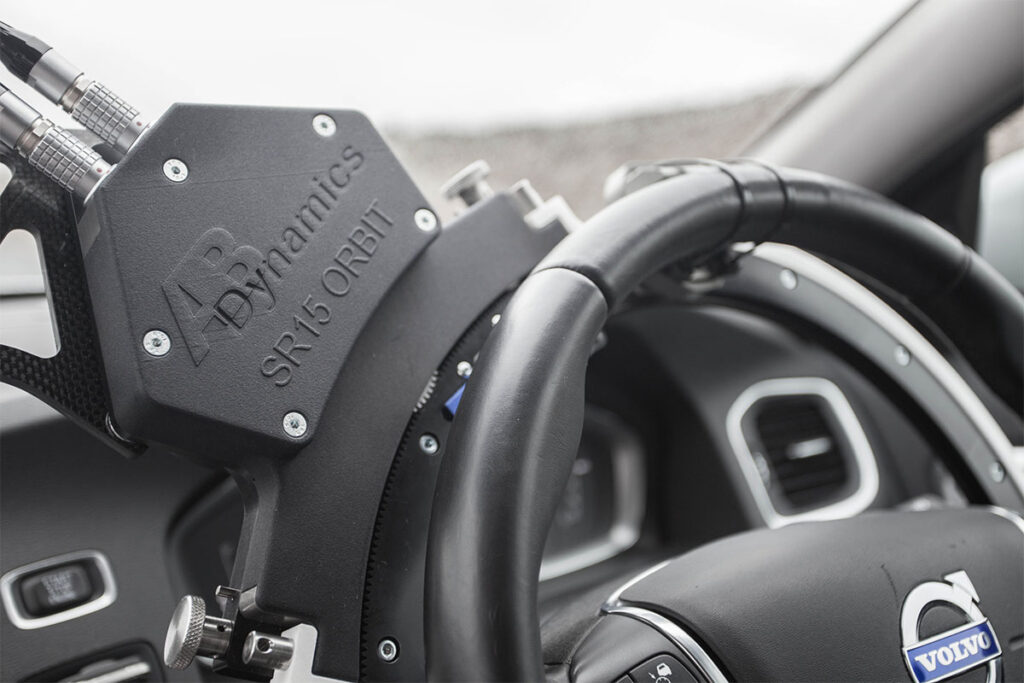

SR15 Orbit
A flexible steering robot that adapts to different wheel rims and test scenarios. The SR 15 Orbit has a lightweight motor and a split-gear design for optimal performance and practicality

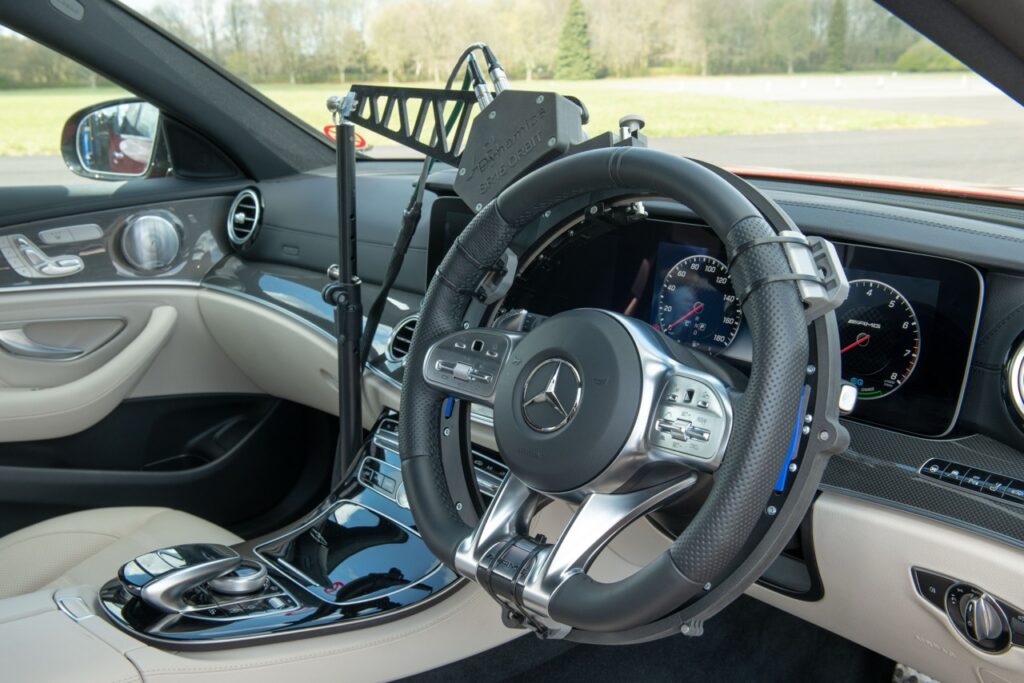

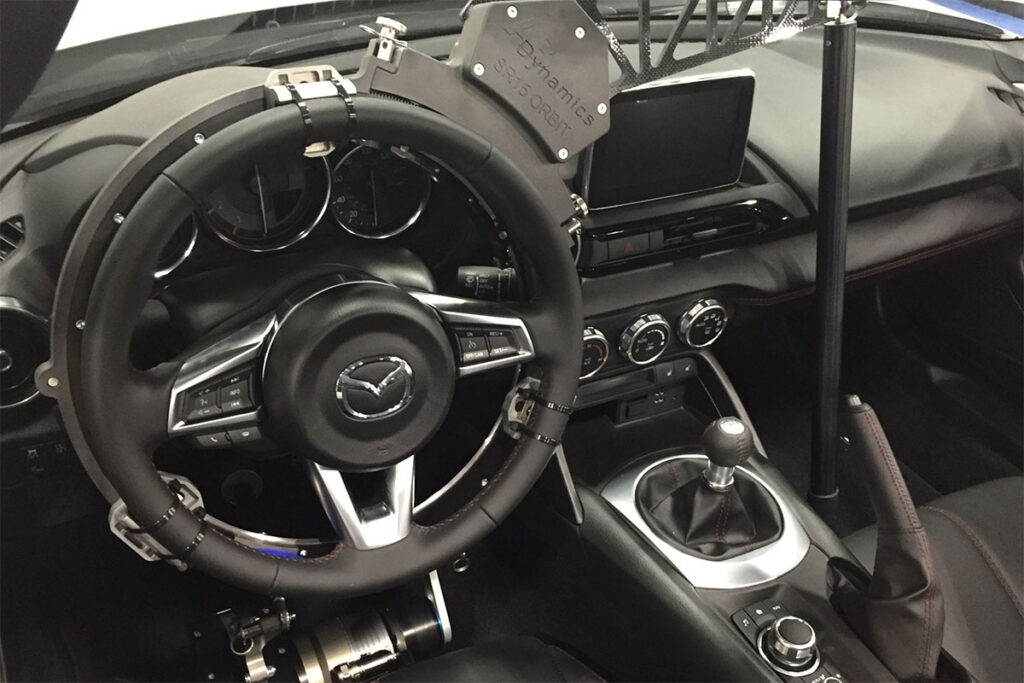

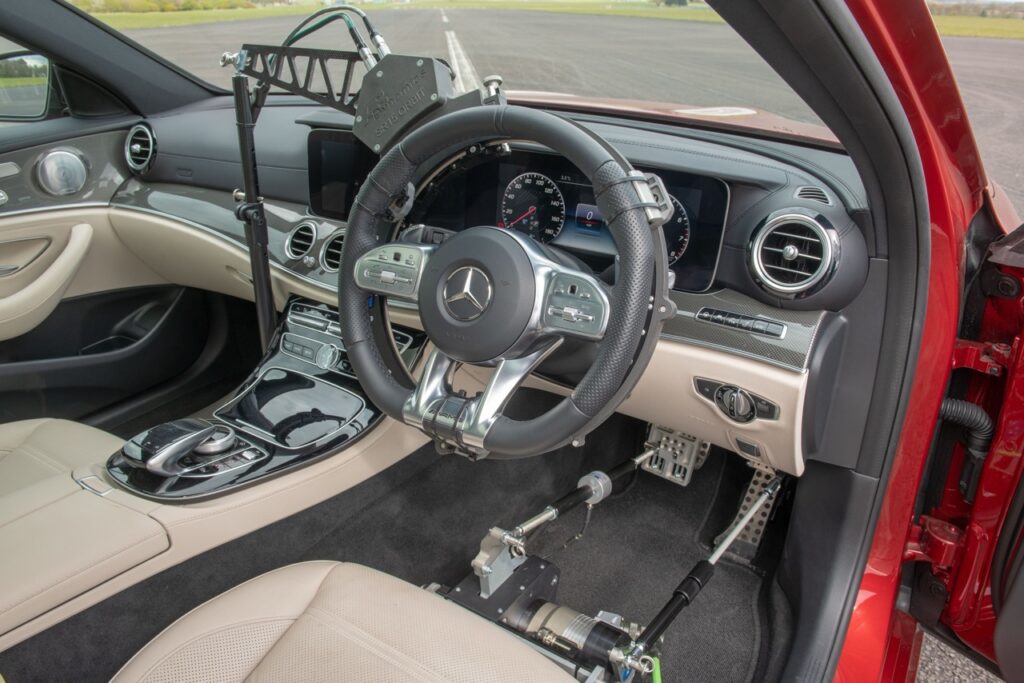

Using the same lightweight motor as the SR 15 combined with the split-gear design of the SR 60 Orbit, the SR 15 Orbit can be installed behind the steering wheel rim providing excellent driver ergonomics preventing the obstruction of sensors and allowing full access to the steering controls. Alternatively, it can be mounted in front of the rim to avoid interference with the dash or stalks.
Technical Information
Model SR 15 Orbit Steering Robot
Direct drive motor No
Hollow for use with airbag in place Yes
Suitable for sine-dwell/fishhook No
Max torque 20Nm @ 200°/s
Rated torque 15Nm @ 500°/s
Max velocity 1000°/s at up to 10Nm
Motor weight 5kg
Adaptable for heavy vehicle testing No
Downloads
Brochure
