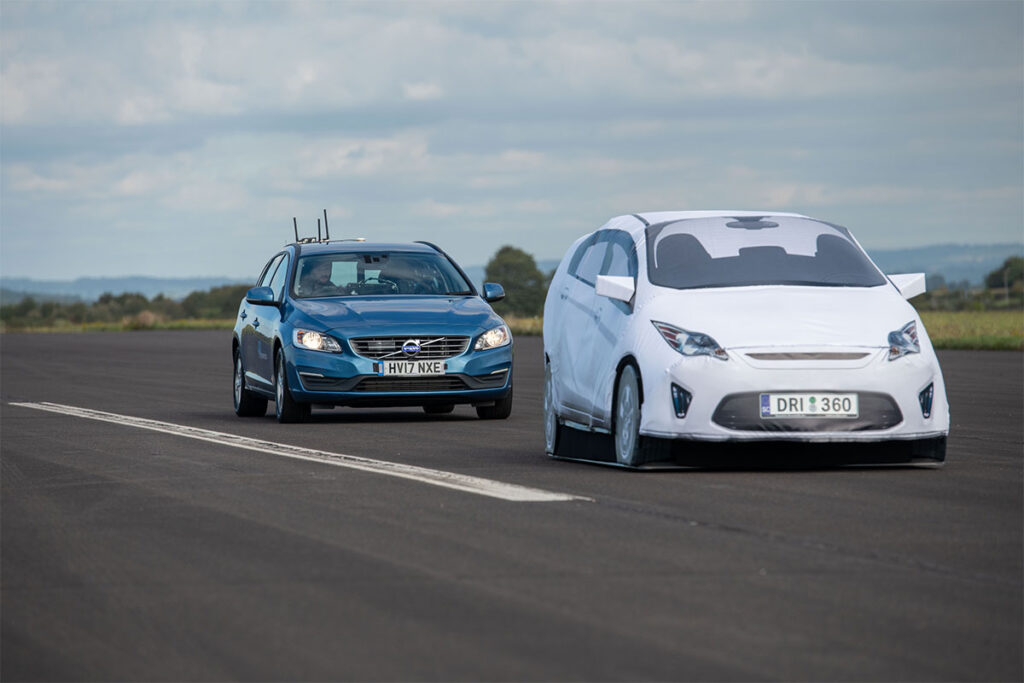

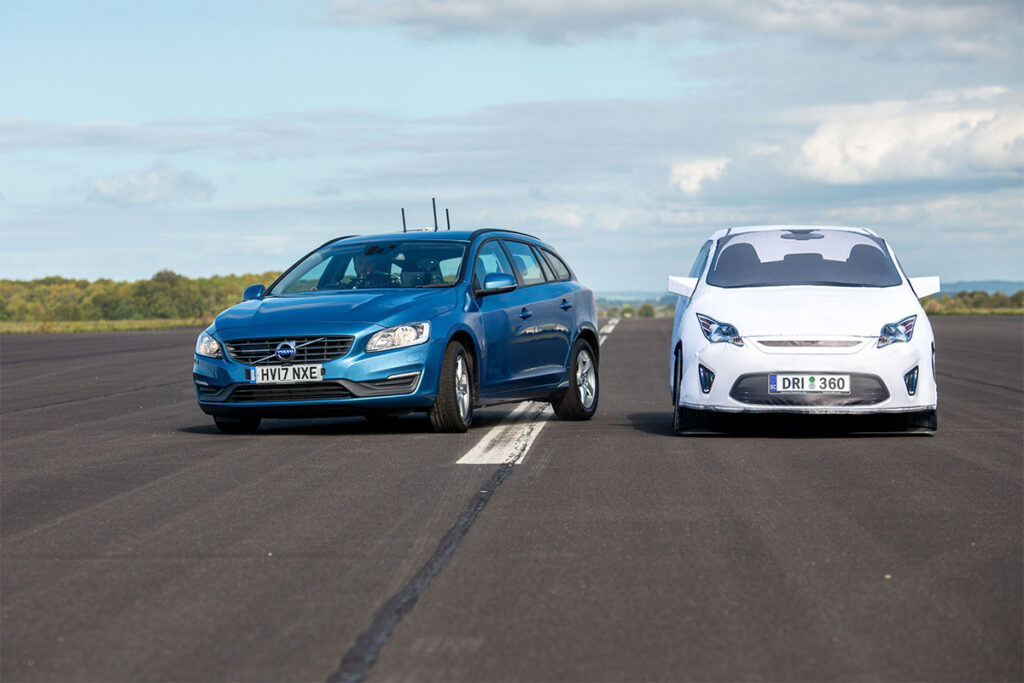

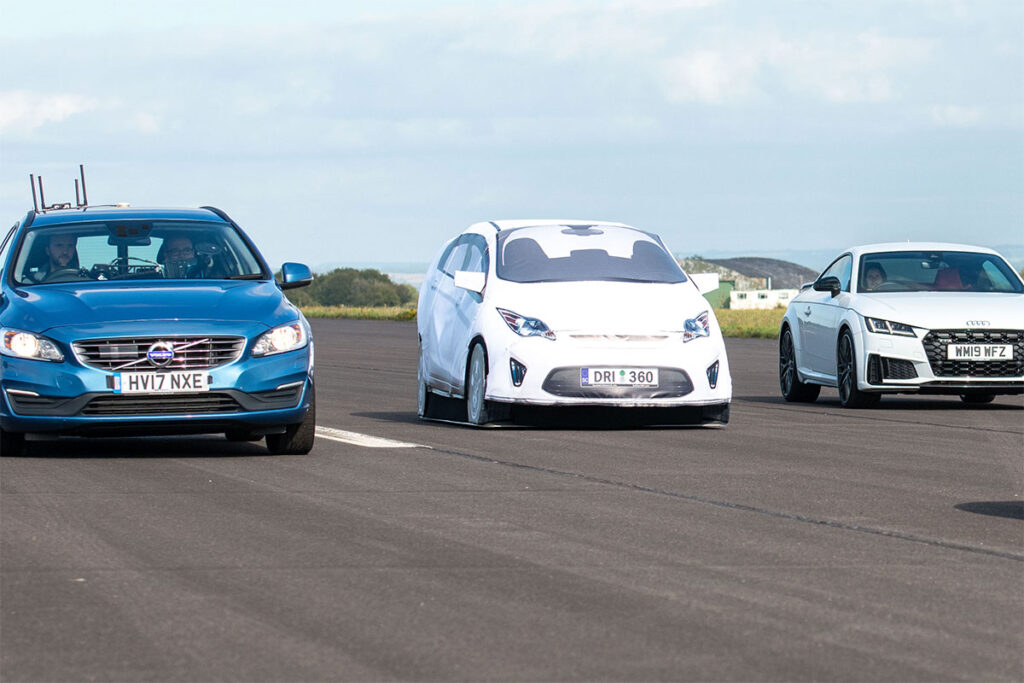

Synchro is the system we use to ensure your ADAS targets arrive at the intersection point at exactly the same time as your test vehicle.

It uses our dependable TrackFi wireless telemetry system together with advanced proprietary software to guarantee perfect synchronisation, even along complex paths and at varying speeds.

The Synchro product family

Synchro is available in different versions to suit your requirements and budget. All are straightforward to set up and run, and are compatible with AB Dynamics' range of driving robots and ADAS targets.

Three Types of Synchro

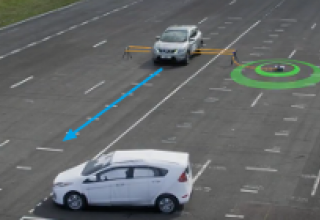

Synchro Beam

No equipment required in Subject vehicle

Uses a double-beam light gate

Forward velocity of Subject vehicle is calculated

Trigger sent to direct the Tracker towards impact point

Cost effective way to rapidly test multiple vehicles

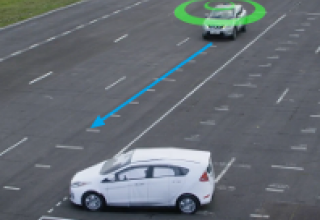

Synchro Lite

Subject vehicle requires a Track-Fi and motion pack

Human driven only (No driving robots)

Motion pack position sent directly to tracker vehicle

Suitable for relative longitudinal and 'time-to-collision' testing

Efficient equipment utilisation

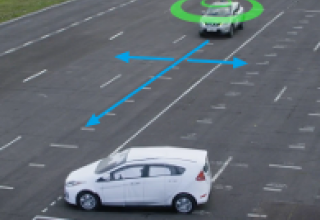

Full Synchro

Subject vehicle requires motion pack, Track-fi and AB Dynamics controller

Multi-directional position error transmitted to Tracker vehicle

Suitable for highly complex curved paths and intersections

Guarantees a consistent relative impact point

Allows up to 16 vehicles to be synchronised

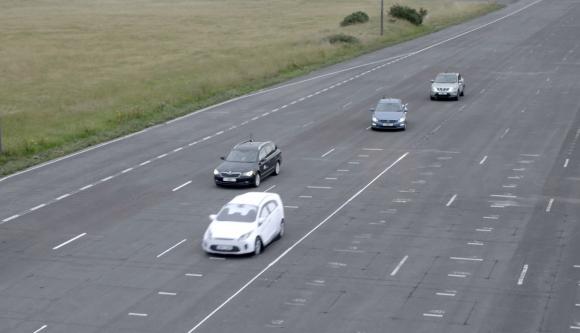

Allows complex scenarios for advanced ADAS and driverless vehicles

Testing self-driving vehicles requires an ever-expanding range of complex tests which may feature large numbers of vehicles and targets. Synchro is the only system which allows highly accurate coordination even at high speeds. AB Dynamics' Synchro system is protected by worldwide patents.
