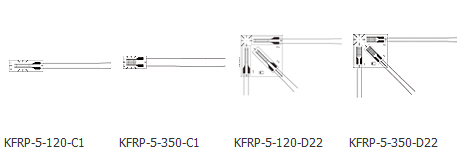

KFRP
The KFRP series foil strain gages are self-temperature-compensation gages (SELCOM?? gages) suitable for strain measurement of composite materials such as CFRP and GFRP. The special gage pattern minimizes the effect of self-heating due to gage current and the effect of reinforcement of low-elasticity materials.
To ensure accurate measurement by avoiding the self-heating effect of gage current, consider the following:
1. Select a lower bridge excitation voltage if the amplifier allows bridge voltage selection.
2. Active-dummy method
3. 350?? strain gages
Applicable Adhesives and Operating Temperature Range after Curing
CC-33A |
-196 to 120??C |
CC-35 |
-30 to 120??C |
CC-36 |
-30 to 100??C |
EP-34B |
-55 to 200??C |
