  • KFG

    The KFG series gages use polyimide resin for the base approximately 13 ??m thick, ensuring excellent flexibility. Besides indoor measurement, the outstanding moisture resistance lets them effectively perform outdoor measurement. Unless directly exposed to water drops, no coating treatment is required.

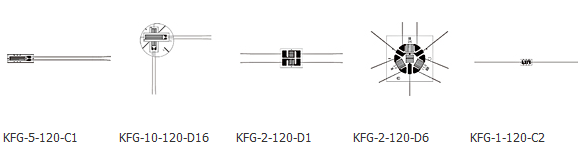

    Typical products
    PDF Download
    Applicable Adhesives and Operating Temperature Range after Curing
    CC-33A -196 to 120??C(When the wires with vinyl??-10 to 80??C)
    CC-35 -30 to 120??C(When the wires with vinyl -10 to 80??C)
    CC-36 -30 to 100??C(When the wires with vinyl -10 to 80??C)
    EP-34B -55 to 150??C(When the wires with vinyl -10 to 80??C)
    PC-600 -196 to 150??C(When the wires with vinyl -10 to 80??C)

    Notes on pre-attached leadwire cables
    ??Standard color of the 2-wire cable pre-attached to uniaxial gages is red (R). If desired, a white, green, yellow or black cable can be pre-attached.
    ??Standard 3-wire cable pre-attached to uniaxial gages has red stripes. If desired, the red stripes can be changed to blue or yellow stripes.
    ??In the case of a triaxial gage, 2-wire cables are color-coded with red, white and green stripes for 0??, 90?? and 45??, respectively and 3-wire cables, with red, yellow and blue stripes for 0??, 90?? and 45??, respectively. The letter code is S in common.
