LUB-B
Compact and Lightweight, Metal Bellows
LUB-5KB to 50KB feature an accuracy of 1/3333 and
LUB-100KB to 2TB feature corrosion-resistant stainless
steel body and bellows. As load detectors, they enable
configuration of accurate and stable weighing systems for
conveyors and tanks.
?? Accuracy:1/3333 ??
?? Special steel body ??
?? Corrosion-resistant ??
*1?? 5 to 50KB
*2?? 100KB to 2TB
*TEDS-installed versions can be manufactured. Inquiries are welcome.
Model |
Rated Capacity |
Natural Frequency
(Approx.) |
Weight
(Approx.) |

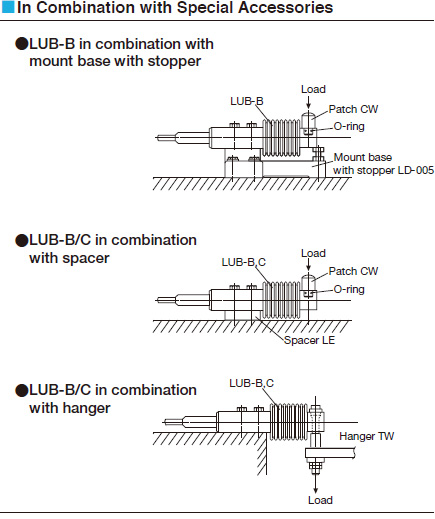

Patch |
Mount Basew/ Stopper |
Spacer |
Hanger |
LUB-5KB |
50N |
250Hz |
350g |
CW-005 |
LD-005 |
LE-005 |
TW-002(for 5 to 20KB)
TW-005(for 5 to 50KB) |
LUB-10KB |
100N |
350Hz |
LUB-20KB |
200N |
500Hz |
LUB-30KB |
300N |
650Hz |
LUB-50KB |
500N |
800Hz |
LUB-100KB |
1kN |
1.8kHz |
350g |
CW-02 |
- |
LE-02 |
TW-02 |
LUB-200KB |
2kN |
1.9kHz |
LUB-500KB |
5kN |
1.1kHz |
1.5kg |
CW-1 |
- |
LE-1 |
TW-1 |
LUB-1TB |
10kN |
1.2kHz |
LUB-2TB |
20kN |
1.1kHz |
2.8kg |
CW-2 |
- |
LE-2 |
TW-2 |
Performance |
Rated Capacity |
See table above |
Nonlinearity |
Within??0.03% RO (LUB-B-5KB to 50KB) Within??0.05% RO (LUB-B-100KB to 2TB)
|
Hysteresis |
Within??0.03% RO (LUB-B-5KB to 50KB) Within??0.05% RO (LUB-B-100KB to 2TB)
|
Repeatability |
0.03% RO or less |
Rated Output |
2 mV/V (4000??m/m)??0.3% |
Environmental Characteristics |
Safe Temperature Range |
-20 to 70??C |
Compensated Temperature Range |
-10 to 60??C |
Temperature Effect on Zero Balance |
Within??0.003% RO/??C |
Temperature Effect on Output |
Within??0.003%/??C |
Electrical Characteristics |
Safe Excitation Voltage |
20V AC or DC |
Recommended Excitation Voltage |
1 to 12V AC or DC |
Input Resistance |
435???60??(LUB-B-5KB to 50KB) 400???50??(LUB-B-100KB to 2TB)
|
Output Resistance |
350???2?? |
Cable |
4-conductor (0.3 mm 2 ) chloroprene shielded cable, 7.6 mm
diameter by 3 m long (5 m long with LUB-B-100KB to 2TB), bared at the tip
|
(Shield wire is not connected to mainframe.) |
Mechanical Properties |
Safe Overload Rating |
150% |
Natural Frequency |
See table above |
Weight |
See table above |
Protection Rating |
IP67 (watertight type conforming to JIS C 0920) |
