전방 충돌 방지(FCP: Front Crash Prevention) 시험용으로 설계됨
· 안전한 시험을 위해 실제 Vanguard 트레일러와 유사하게 시뮬레이션
· 트레일러의 Overhang을 사실적으로 디자인하여 정확한 레이더 신호 특성을 재현합니다.
· LiDAR, Radar, Camera 기반 센서와 호환되도록 개발됨
· 맞춤형 옵션 제공 (예: 특수 텍스트, 브랜드 커버, 색상 변경 등)

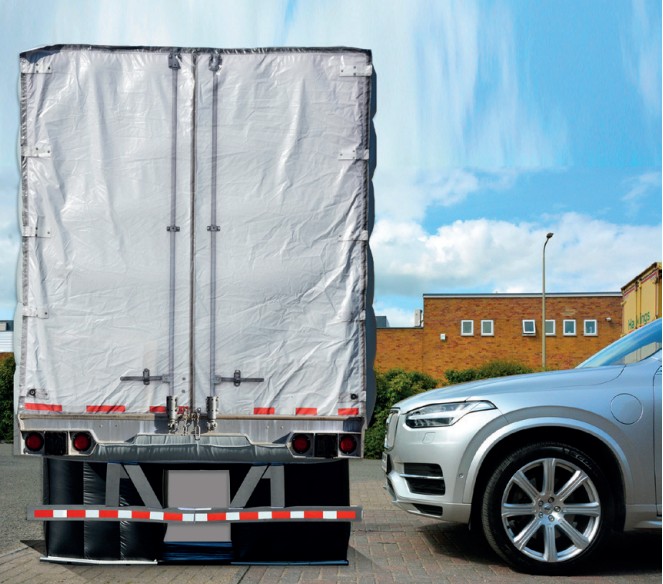

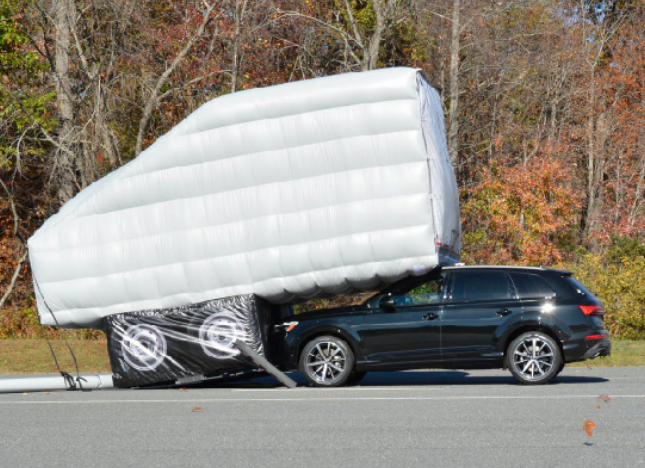

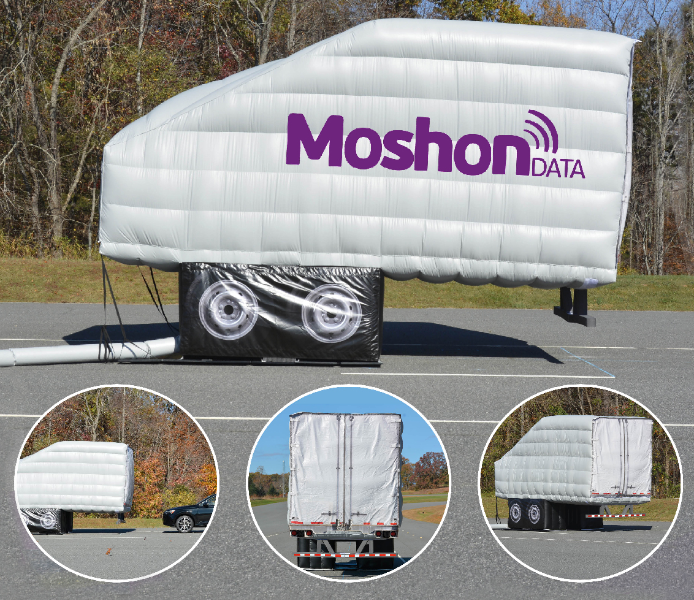

Built for the IIHS Vehicle-to-Vehicle Front Crash Prevention (FCP) 2.0 Test Protocol
A combination of inflatable and foam components with high-tech fabrics and
complex construction aimed at replicating the shape of a real semi-truck trailer whilst
maintaining the correct radar signatures required for high-fidelity simulation.
Applications
FCP (Front Crash Prevention)
AEB (Auto Emergency Braking)
Technical Information
Height: 3.96m / 13ft Width: 2.59m / 8.5ft
3D depth perception from rear end enables radar to resolve structural features like axle position

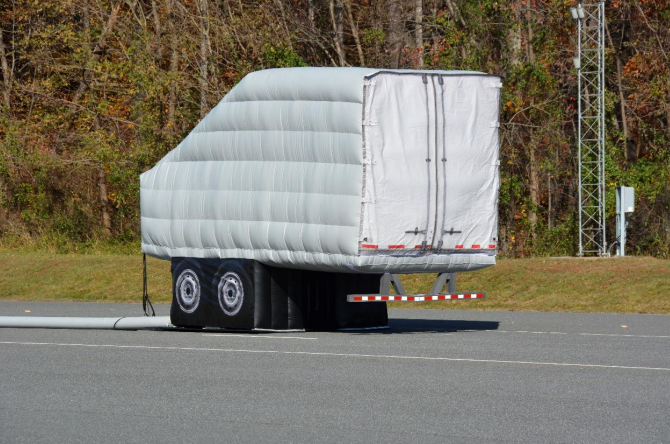

Made from Foam and Inflatable components for easy transportation, assembly and storage

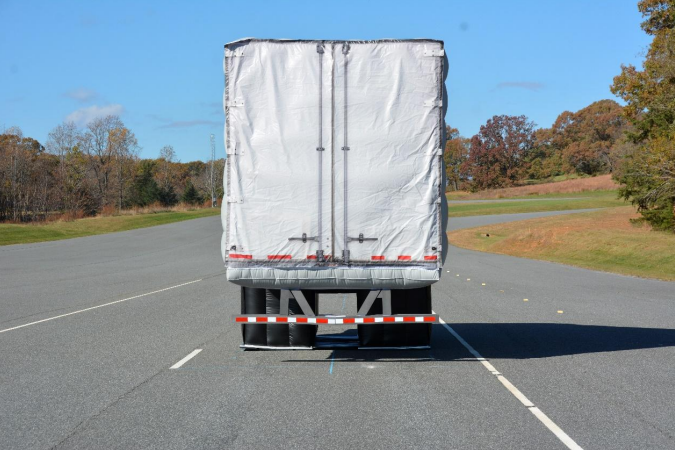

Open space beneath target simulates real trailer gap for accurate radar pass-through

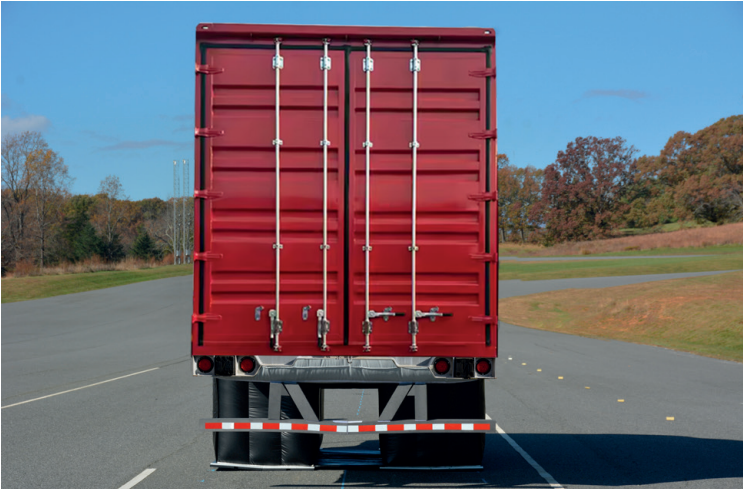

Application of high-tech metallic fabrics to simulate solid metal sections of a real semitruck trailer
