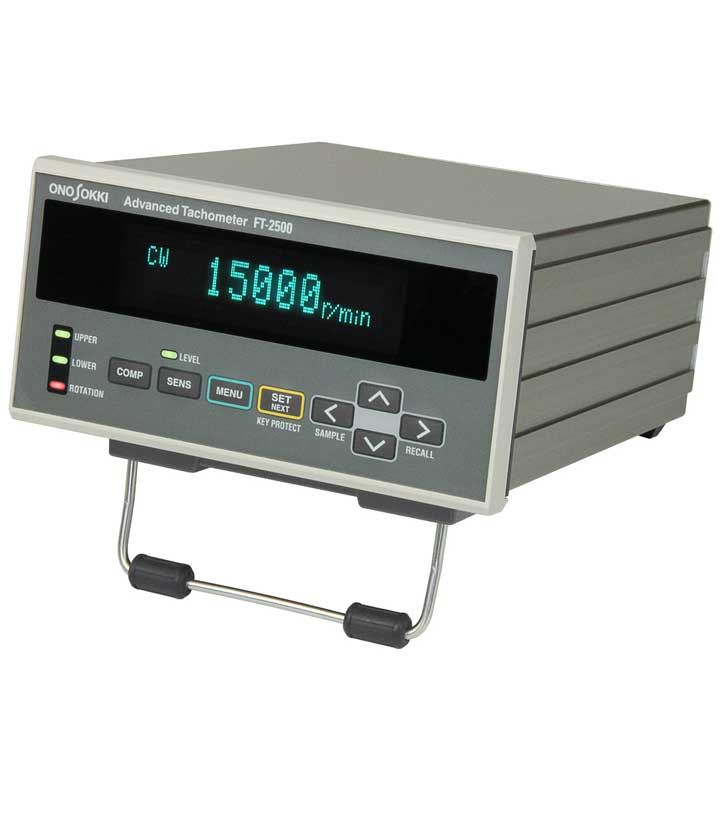

| Model | FT-2500 | |
|---|---|---|
| Computing System | 1024-Point FFT Calculation | |
| Measurement RPM Range | 500Hz Range: 3.75Hz to 500Hz, 2kHz Range: 15Hz to 2kHz, 10kHz Range: 75Hz to 10kHz | |
| RPM Resolution | Frequency Range(Hz) / 12800 x 60 / Set Pulse Count (P/R) | |
| Measurement Accuracy | +/- 2 x RPM Resolution +/- 1 | |
| Measurement Time | 500ms or Less | |
| Display | Blue-Green LED, 6 Digits | |
| Pulse Count Set Range | 0.5 to 199.5P/R in 0.5Steps | |
| Rotational Direction Determination Function | Displays CW or CCW(When Used With FT-0501) | |
| Exponential Averaging | Select: Off, 2, 4, 8, or 16Times | |
| Analog Output | 0 to 10V / Full Scale | |
| Comparator Output | Yes | |
| Interface | D-SUB(15-Pin Connector) | |
| Dimensions | 144mm (W) x 72mm (H) x 180mm (D) | |
| Weight | Approximately 1.2kg | |
| Pulse Output | 0 to 5V TTL | |
