GTC (Ground Traffic Control Solution) Core
The essential software for monitoring and coordinating test traffic
Ground Traffic ControlTM (GTC) is a centralised platform that provides a powerful and scalable solution for accurate monitoring and coordination of test track traffic, including robot-controlled vehicles and ADAS target platforms. GTC is now available in two variants: GTC Core and GTC Pro.

GTC Core provides a software-only solution designed specifically for ADAS testing, managing up to six test objects. It offers comprehensive control over test execution, allowing operators to start, stop, and resume all traffic or individual test objects with ease. By providing live tracking of connected vehicles and test objects from mobile units or base stations, GTC Core ensures operators have a constant, live overview of all ongoing activities, resulting in enhanced situational awareness.

GTC Core delivers enhanced safety and operational efficiency, all within an intuitive interface designed to streamline test track traffic management.
Key Features
Real-time monitoring of vehicles and other test objects from mobile and permanent base stations
Multi-screen support and customisable screen layouts for optimised monitoring
Software only solution for rapid deployment
Auto-detection of vehicles improves situational awareness
All traffic can be stopped with one press of a button
Perfect partner for managing your ADAS tests, supporting up to 6 systems
Customisable map overlays, icons and live robot data
Compatible with AB Dynamics systems including driving robots, Flex-0™, SPT™, LaunchPad™ and GST™ products
Technical Information
Model GTC™ Core
Maximum number of concurrent driverless systems connected 6
Manage text execution Intuitive start, abort, stop and rejoin controls
Products supported All PowerPMAC based driving robots, Flex-0,
LaunchPad and GST products
Recommended installation Mobile base station
Mapping Microsoft Bing Maps or high resolution
proving ground image map
Customisation / User definable vehicle colours and icons
/ Custom screen layouts
Real-time robot information display / Map view and vehicle cards
/ Customisable live robot data
/ Live inter-vehicle grid
Map overlays / Inter-vehicle lines
/ Stop zones
/ Path courses
/ Trajectories
/ Path visibility
/ Show/hide notification pins

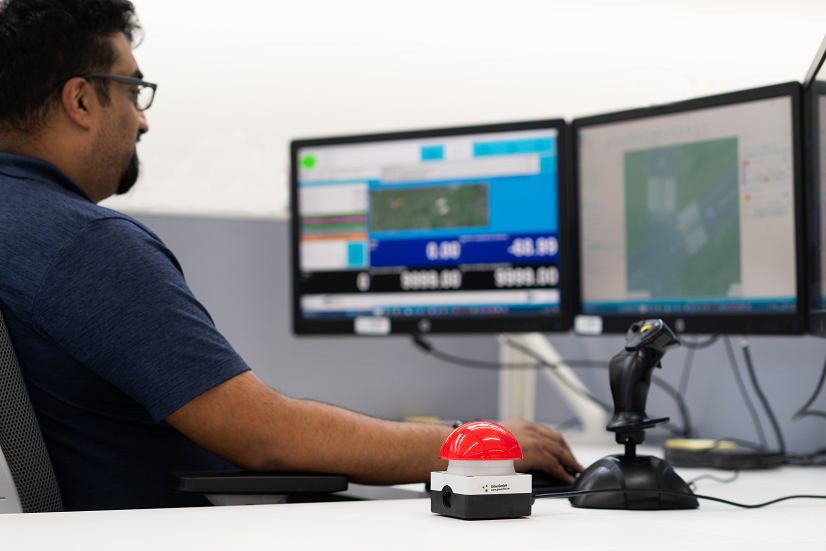

Compatible accessories / USB abort button
/ Logitech driving force racing wheel and floor pedals
/ Microsoft Xbox controller
/ Logitech Extreme 3D Pro joystick
/ Thrustmaster USB joystick
