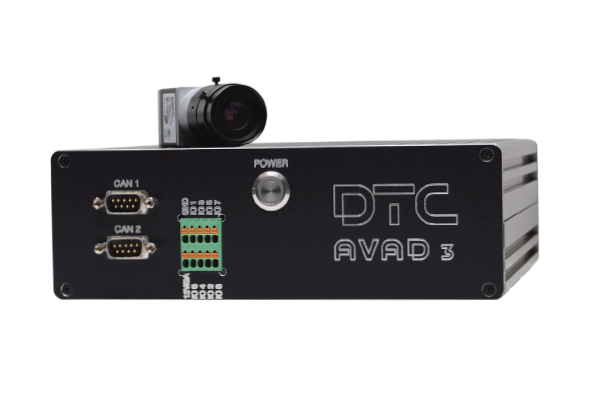

AVAD-3
Detector for audio-visual signals from the vehicle
The ultimate alert detector system for capturing audible or visual signals of driver assistance systems like lane keeping and autonomous brake assist systems for EuroNCAP testing.

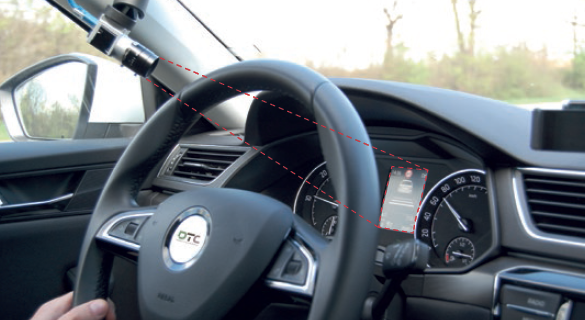

The AVAD3 is capturing acoustic and optical alerts and signals generated by advanced driver assistance systems in the vehicle
It outputs triggers to the TTL, LAN and CAN when it recognizes changes of the shapes and colors of defined icons or when audible signals are identified. The latency of the resultant output is only within a few ms. The core of the AVAD3 is a very fast high end processor for the analysis of the images and signals which is packed with all signal conditioning and I/O-modules in a robust automotive box.
Key Features
Low latency (typ. 2 – 5ms)
Frame rate 100Hz; CAN- and LAN-output rate max. 1KHz
Configuration via internet browser
Insensitive to vibrations in the car
Measurement profiles can be saved and loaded later
A start/stop switch enables easy operation during the tests
Status signals may activate the memory function of the AVAD3 or be used as markers
Via the I/O interface the status of the vehicle contact can be detected by an impact switch
The delay of information between alarm signal and the output as TTL- CAN and LAN information is in the range of a few microseconds
