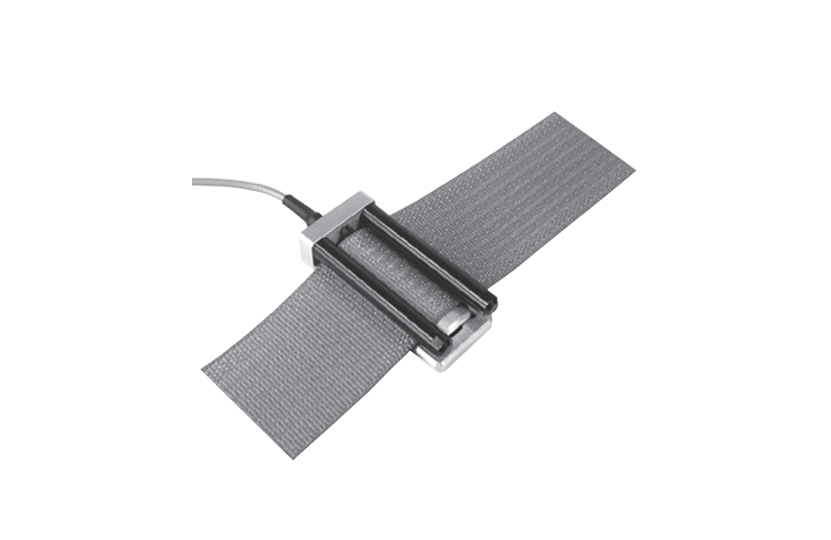

LBT-D-100NSA1-H
Measures tensile force when installing CRS (Child Restraint Seat)
The LBT-D is designed to measure the belt tensile force when installing CRS to the vehicle. Compact, lightweight and disassembly-friendly design.
Technical Information
Model LBT-D-100NSA1-H
Rated capacity 100N
Nonlinearity Within 1.5RO (With a built-in compensation circuit)
Rated output 1.0mV/V (2000 10-6 strain or more)
Safe Excitation 10VDC
Recommended excitation 2 to 10 VDC
Input resistance 700 to 900
Output resistance 700 3
Safe overloads 120%
Weight Approx. 65g
