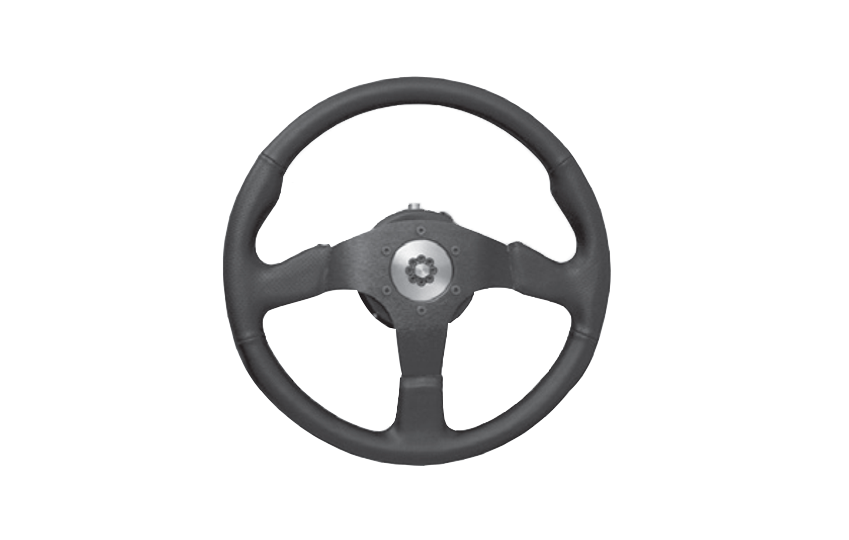

SFA-H-SA
Lightweight and Easy to install to steering shaft
This unit is lightweight and easy to mount to and remove from the steering shaft.
Key Feature
Steering force (torque) is strain output and steering angle is voltage output
Technical Information
Model SFA-H-SA
Steering torque
Rated capacity 50Nm, 200Nm
Rated output 1mV/V (2000 10-6 strain) or more
Nonlinearity Within 0.3%RO
Hysteresis Within 0.3%RO
Safe overloads 120%
Input/Output resistance 350 1%
Steering angle
Rated capacity 5 rotations
Rated Output 5V
Recommended excitation 9 to 16VDC
General
Weight Approx. 2.5kg (Including 1kg of steering wheel)
