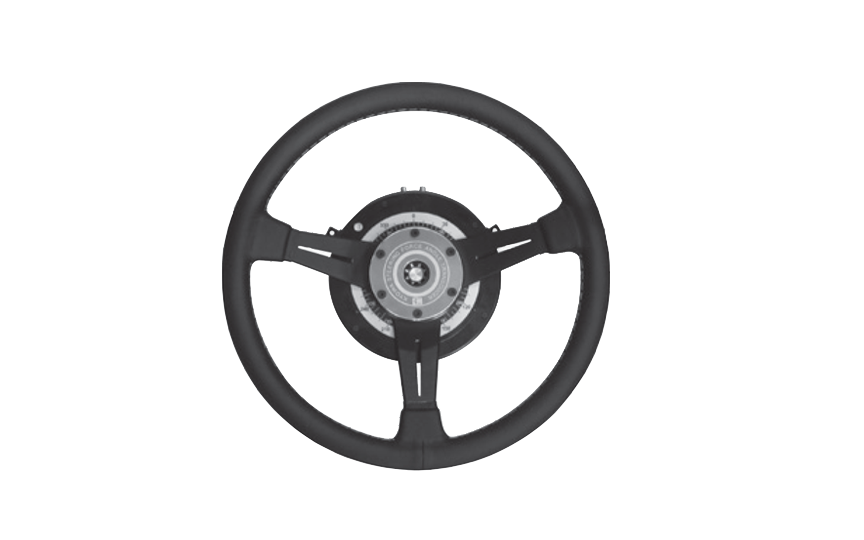

SFA-F-SA
Easy to install to steering shaft
This unit is easy to mount to and remove from the steering shaft, and both steering force (torque) and steering angle are output as strain. *Type that adds output for small angles (rated 160) output are available.
Key Feature
Steering force (torque) and steering angle are strain output
Technical Information
Model SFA-F-SA
Steering torque
Rated capacity 20 to 200Nm (As specified)
Rated output 1mV/V (2000 10-6 strain) or more
Nonlinearity Within 0.3%RO (150Nm or more: 0.5%RO)
Hysteresis Within 0.3%RO (150Nm or more: 0.5%RO)
Safe overloads 120%
Input/Output resistance 350 1%
Steering angle
Rated capacity 3 rotations
Rated Output 1mV/V (2000 10-6 strain) or more
Nonlinearity Within 0.5%RO
Hysteresis Within 0.5% RO
General
Weight Approx. 3.3kg (Including 1kg of steering wheel)
