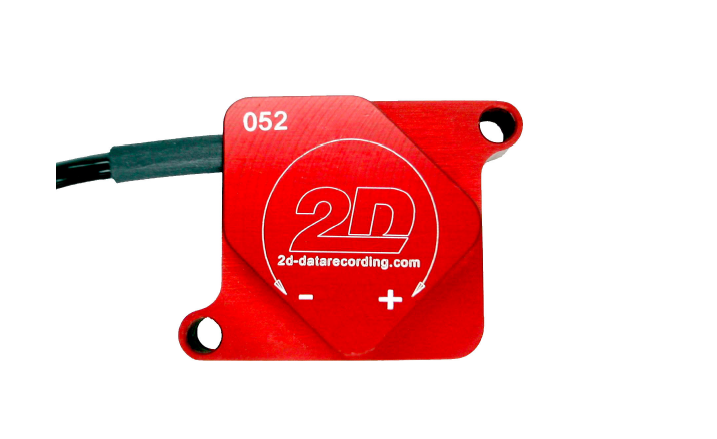

SA-GYxxxV4-000
Yaw rate sensor 200 or 500/s (Gyro)
This sensor is available in different measurement ranges. Choose the sensor type depending on the application to use the full ouputrange for maximum resolution.
Applications
To measure pitch-, roll- and yaw-speed of vehicle
To measure banking angle speed of a bike
To calculate the inclination of the bike (the required function is included in the software)
Technical Information
Model SA-GY200V4-000 SA-GY500V4-000
Power supply 4.75 - 5.25VDC
Operating current Max. 50mA
Range -200/s@0.5V
200/s@4.5V
-573/s@0.5V
573/s@4.5V
Sensitivity 200 / s 573 / s
Resolution 0.1 /s
Linearity <0.5%FS
Dimensions 40mm x 30mm x 16mm
Weight 22g (Including cables)
Cable type PUR-cable
Cable wire cross section 3 x AWG26
Cable length 800mm
