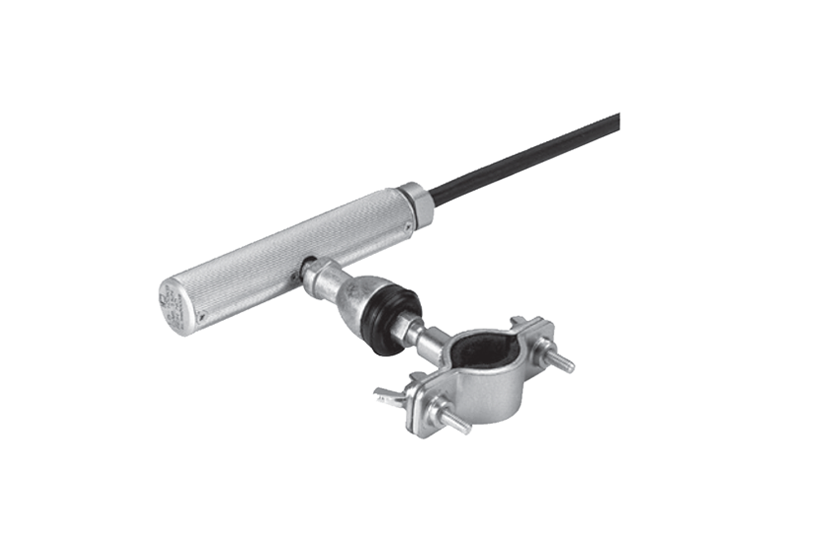

LB-B
Easy to install to hand brakes on the market
The LB-B is a load cell to measure tension of hand brakes. Adopting a universal joint, the LB-B measures the tension accurately.
Technical Information
Model LB-50KB LB-100KB
Rated capacity 50N 1kN
Nonlinearity Within 1%RO
Hysteresis Within 1%RO
Repeatability 1%RO or less
Rated output 1 to 2mV/V (2000 to 4000 10-6 strain)
Safe excitation 10V AC or DC
Recommended excitation 1 to 5V AC or DC
Input/Output resistance 350 1%
Safe overloads 120%
Weight Approx. 800g
