HF

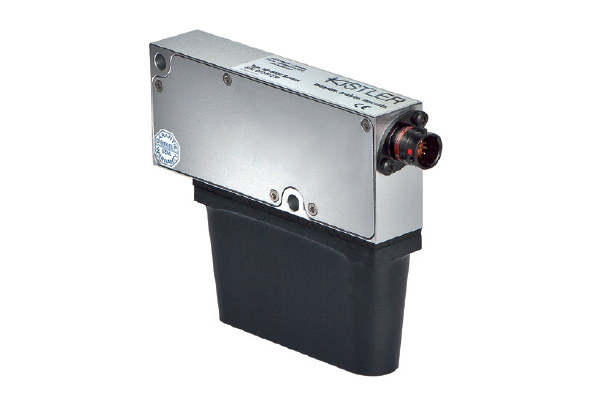

HF Sensors: optical laser height-sensors
For non-contact distance measurement in vehicle dynamics testing applications; for example uplift measurements, spring deflection, dynamic tire flat spotting, tire lift-off (Fishhook Test). Working ranges of 100 900 mm.
Applications
Height-sensors for measuring e.g. pitch and roll angle according to ISO 4138 (steady-state circular-course drive)
Further fields of application are for instance uplift measurements, spring deflection, dynamic tire flat spotting, tire lift-off (Fishhook Test)
Two HF sensors mounted at the wheel enable dynamic camber angle measurement (refer to Kistler DCA System)
Key Features
HF sensors with working ranges of 100 ... 900 mm, depending on Type
Compact design
For static and dynamic measurements
Signal outputs: Analog, CAN and RS-232C
Negligible service and maintenance requirements
Technical Information
Model HF-250C HF-500C HF-750C
Measuring range 100 ... 350mm 125 ... 625mm 150 ... 900mm
Resolution 0.1mm 0.2mm 0.3mm
Linearity 0.2% 0.2% 0.3%
Sampling rate 0.3 ... 8kHz
Laser class 3R (EC608251)
Laser power <5mW
Wave length 660nm
Spot size (approx.) 1 x 2mm
