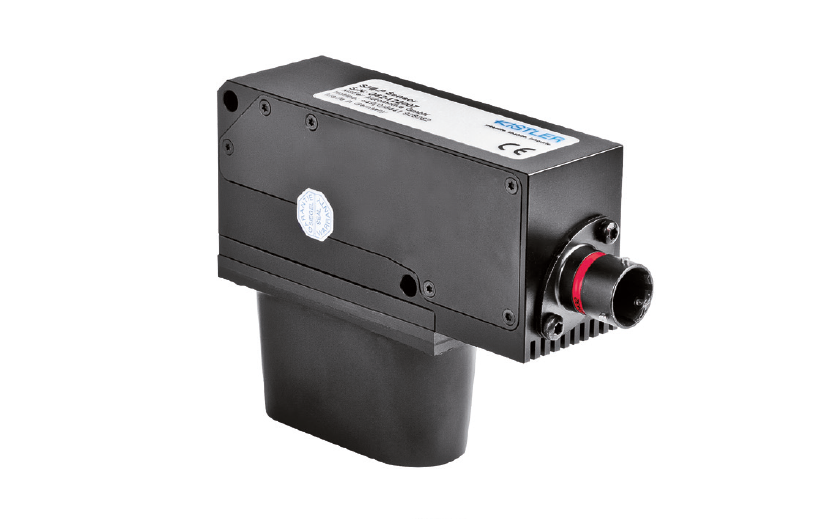

Correvit SFII
Correvit SFII: 2-axis optical sensors
For high-precision measurement of distance, speed and angle in vehicle dynamics testing applications. Small and lightweight (180 ... 250 grams); with long-life, vibration-resistant infrared LED illumination. Suited for racing applications.
Applications
High-precision
Longitudinal and transversal speed as well as angle for vehicle dynamics
Slip-free measurement of distance
Key Features
Developed for measurement of slip angle
Small and lightweight
Adjustable filter time (unfiltered, moving average 8 ... 512ms)
Measurement accuracy <0,5%FSO
Improved features by application of advanced DSP technology
Signal outputs: Analog, Digital, CAN-Bus or RS-232C
Technical Information
Model SFII SFII-P
Speed range 0,3 ... 250km/h
Distance resolution 2,08mm
Measurement accuracy <0,5%FSO
Angle range 40
Angle resolution <0,1
Meas. accuracy angle <0,5
Meas. frequency 250Hz
Working distance and range 180 50mm
