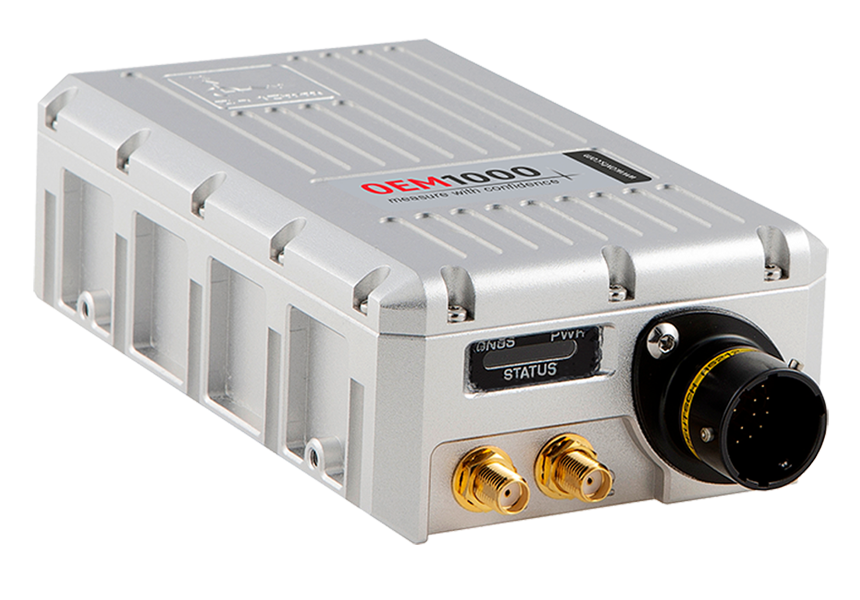

OEM1000
Budget-friendly, compact INS for space-constrained products
Space constraints shouldn't limit your ability to capture high-accuracy measurements. The OEM1000 offers a simple, effective solution for product innovations which require high-performance INS capabilities but are limited by space constraints.

Featuring a combination of GNSS receivers and MEMS IMU, you will always receive accurate readings-whether the product is being used in tunnels, bridges or obstructed environments with poor satellite visibility. Dual GNSS receivers enable accurate and stable heading even when stationary. The blended INS measurements provide a comprehensive list of measurements including position, velocity, acceleration, and orientation.
Applications
Autonomous vehicles
Guided ADAS platforms
Robotic systems
Industrial automation
Key Features
CAN output
GX/IX™ RTK tight coupling technology
On-board NTRIP client
Wheel speed odometer input support
Network differential
Generic aiding input
Increased output rate up to 250 Hz
Technical Information
Parameter OEM1000
Positioning L1, L2 GPS / L1, L2 GLONASS / B1, B2 Beidou
Positioning Accuracy (CEP) 2cm
Velocity Accuracy (RMS) 0.1km/h
Pitch/Roll Accuracy (1σ) 0.05˚
Heading Accuracy (2 m baseline) (1σ) 0.1˚
Acceleration bias stability 0.02mg
Acceleration range 30g
Angular Rate bias stability 3˚/hr
Angular Rate range 300˚/s
Maximum output rate 250 Hz
Operating temperature -40˚C to +70˚C
Specification temperature -10˚C to +70˚C
Power input 10-31V
Power consumption 9W
Dimensions 142 x 77 x 41mm
Weight 425g
Internal storage 32GB
Interfaces Ethernet, RS-232, CAN
Dual antenna Yes
