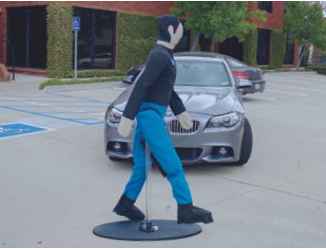

EuroNCAP 3D Static Dummy (Adult, Child, Cyclist)
Dummies, which replicate human properties in size and shape
The child dummy represents a child at the age of 7 years. Dummies can be recognized by mono and stereo cameras as well as radar and infrared systems. In infrared is 50% reflectivity, between 850nm and 910nm. There is no danger of crashes for the dummy, respectively the test vehicle, during a test.
Key Features
For testing in rainy conditions
Very robust - crashes up to 60km/h
No hard impact points
3rd leg for better stability in windy conditions
The dummy is EuroNCAP compliant
Heated cover (Option)
Additional spare parts are available (Option)
Technical Information
Model Adult Child
Body height 1,800mm 1,154mm
Shoulder width 500mm 298mm
Torso angle 85 78
Weight < 4kg < 2kg
* IR reflectivity : from 850 to 910nm measured in 45and 90/ Clothes and skin 40%~60% / Hair 20%~60%
