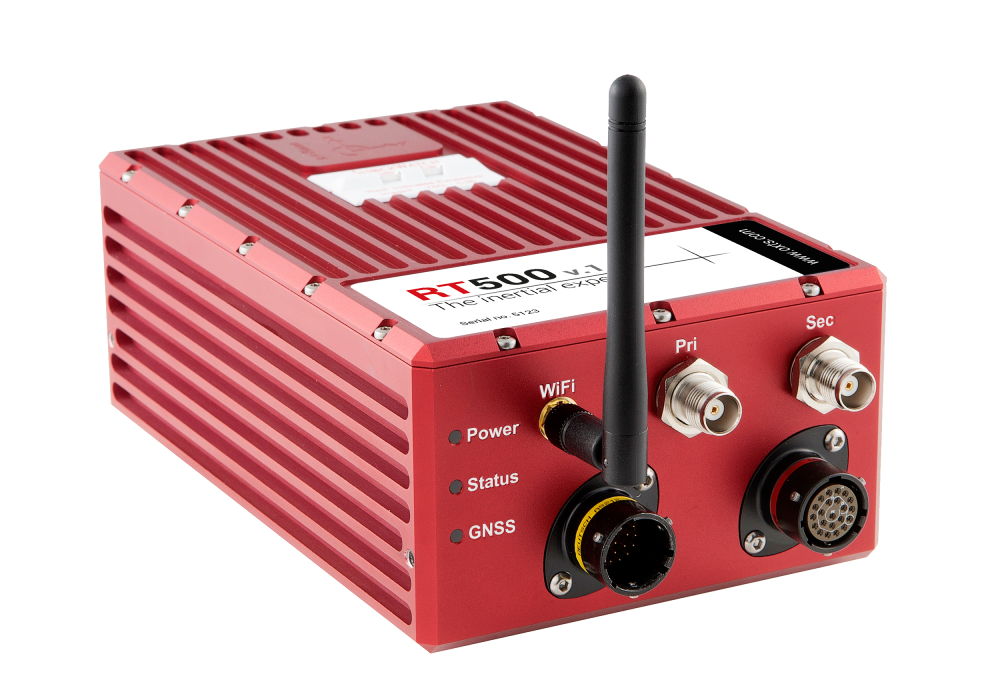

RT500
Low cost entry GNSS/INS for low dynamics automotive testing
The RT500 is our new entry level GNSS/INS product. It combines the high data rate and robustness of inertial navigation systems with the absolute precision of GNSS data at our lowest price point. It provides robust, precise and accurate real-time position, orientation and velocity measurements even in poor GNSS environments meaning it is widely used across the automotive industry for vehicle dynamics applications.
Applications
Vehicle dynamics testing
Performance testing
Brake testing
Coastdown tests
Low precision slip angle measurement
Key Features
Tightly-coupled GNSS/INS
Up to 1 centimetre position accuracy, 0.2 slip angle accuracy
Dual antenna GPS/GLONASS for accurate heading
Real-time CAN, Ethernet and serial output at up to 250Hz
Technical Information
Model RT500
Position 2.0m SPS / 1.0m SBAS / 0.5m DGPS
Velocity 0.1km/h
Pitch / Roll 0.05
Heading 0.15
Slip angle at 50 km/h 0.25
Dual antenna Yes
