Sensor FCS-D-150

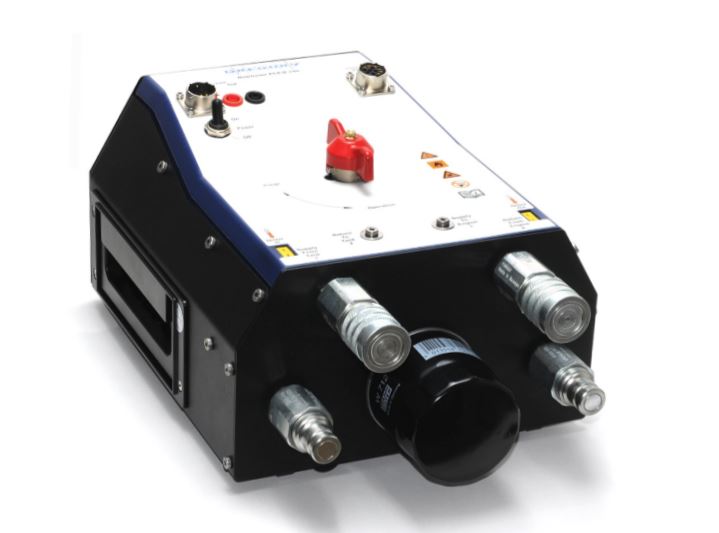

The FCS-D-150 system is an integrated system for diesel fuel consumption measurement
The FCS system-D-150 is an integrated system for the measurement of engines (diesel engines) with forward and return line for fuel supply with the fuel pump at the engine (suction). The measuring range is 0.1 to 250l/h, and the output of the internal pump for fuel circulation is max. 170l/h. The FCS-D-150 system can be easily installed into the existing fuel supply via four fuel tube connections equipped with quick lock couplings.
Application
Fuel consumption measurement of engines (typically diesel engines) with the fuel supply pump located at the engine
Technical Information
Model FCS-D-150
Applications Fuel consumption measurement of engines (typically diesel engines) with the fuel supply pump located at the engine
Permitted fuel types Diesel, optionally gasoline, bio and alcohol based fuel
Measurement parameters Fuel volume, Fuel temperature (option),
Fuel pressure (option)
Flow rate Measuring range 0,1 ... 250l/h
Volume Measuring accuracy 0.5% of value (at a flow rate within 1 ... 50l/h)
Measuring resolution 0.004ml
Flow temperature (option) Measuring range -20 ... +75
Measuring accuracy K-type thermo couples DIN IEC 584, class 1
Measuring resolution Depending on external data acquisition
(not included to delivery)
Fuel circulation rate 130 - 170l/h
Inner diameter (mm) of engine fuel tube 16
Nominal width of couplings NW 9.5
Quick lock couplings Self closing
Operational pressure Max. 0,2 bar
Operating temperature -20 ... 70
Fuel filter Located on the front side
Operating directions Any
Mounting By thread inserts M5 in the bottom plate
(see operational manual)
Dimensions (W H D) Approx. 265mm 193mm 390mm
(depending on system configuration)
Weight Approx. 15kg
Power supply Nominal 12VDC
Power consumption Max. 95W
normal operational power consumption approx. 100W
