| Model |
Rated Capacity |
Measuring Force
(Approx.) |
Weight
(Approx.) |
| DT-10D |
10mm |
1.7N |
160g |
| DT-20D |
20mm |
2.1N |
310g |
| DT-30D M150 |
30mm |
2.2N |
260g |
| DT-50D M150 |
50mm |
2.7N |
300g |
| Performance |
| Nonlinearity |
Within ??0.5% RO |
| Hysteresis |
Within ??0.5% RO |
| Repeatability |
0.3% RO or less |
| Rated Output |
1.5 mV/V (3000??m/m) or more |
| Environmental Characteristics |
| Safe Temperature Range |
0 to 55 o C (non-condensing) |
| Compensated Temperature Range |
0 to 50 o C (non-condensing) |
| Temperature Effect on Zero Balance |
Within??0.03% RO/??C |
| Temperature Effect on Output |
Within??0.03%/??C |
| Electrical Characteristics |
| Safe Excitation Voltage |
12V AC or DC |
| Recommended Excitation Voltage |
1 to 4V AC or DC |
| Input Resistance |
350?? ??2% |
| Output Resistance |
350?? ??2% |
| Cable |
4-conductor (0.08 mm 2 ) vinyl shielded cable,3 mm diameter by 5 mm long, bared at the tip |
| (Shield wire is not connected to mainframe.) |
| Mechanical Properties |
| Safe Overload Rating |
100% |
| Frequency Response Range |
DC to approx. 0.8 Hz |
| Measuring Force |
See table above |
| Weight |
See table above |
| Optional Accessories |
| Replacement probes |
X,XS,SH |
| Magnet base |
MB-B |

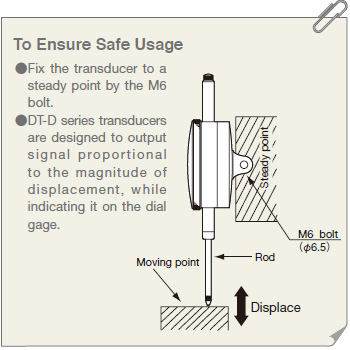

Notes:
1. Avoid usage in vibration.
2. If large displacement is applied momentarily, it takes some time that output is settled.
3. Do not apply any displacement in other than expansion/contraction direction of the rod.
4. If the DT-50D M150 is used in horizontal position, the rod inclines by approximately 10 mm due to its own weight and may not follow displacement.
