MAGUS

DTJ-A-200

Excellent temperature characteristics,Highly accurate with nonlinearity ??0.3% RO

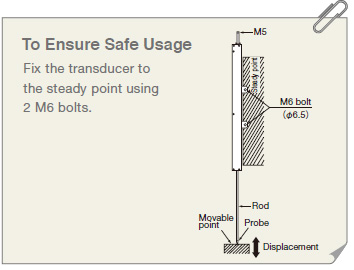

The high rated capacity of 200 mm makes this transducer widely applicable for measurement of structural relative displacement or absolute displacement from a steady point.

Features

?? Large output by 5 mV/V (10000 ??m/m)
?? Both tention and compression
?? Graduated

* TEDS-installed versions can be manufactured. Inquiries are welcome.

PDF Download

Specifications

Performance
Rated Capacity	200mm
Nonlinearity	Within ??0.3% RO
Hysteresis	Within ??0.3% RO
Repeatability	0.3% RO or less
Rated Output	5 mV/V (10000??m/m)??0.3%

Environmental Characteristics
Safe Temperature Range	-10 to 70^o C (non-condensing)
Compensated Temperature Range	0 to 60 ^o C (non-condensing)
Temperature Effect on Zero Balance	Within??0.02% RO/??C
Temperature Effect on Output	Within??0.02%/??C

Electrical Characteristics
Safe Excitation Voltage	6V AC or DC
Recommended Excitation Voltage	1 to 4V AC or DC
Input Resistance	350?? ??1%
Output Resistance	350?? ??1%
Cable	4-conductor (0.065 mm²) vinyl shielded cable,4mm diameter by 3 mm long, bared at the tip

Mechanical Properties
Frequency Response Range	DC to approx. 2 Hz
Measuring Force	Approx. 5.9 N
Weight	Approx. 560 g

Optional Accessories
Extension rod	EB-300
Replacement probes	X,Xs,SH
Magnet base	MB-B

Notes:
1. Initial unbalance with the rod fully extended is approximately -5000 to -6000??m/m.
2. Avoid usage in vibration.
3. If large displacement is applied momentarily, it takes some time that output is settled.
4. Do not apply any displacement in other than expansion/contraction direction of the rod.
