* TEDS-installed versions can be manufactured. Inquiries are welcome.
| Performance |
| Rated Capacity |
50 mm (DT-50A),100 mm (DT-100A) |
| Nonlinearity |
Within ??0.5% RO |
| Hysteresis |
Within ??0.5% RO |
| Repeatability |
0.3% RO or less |
| Rated Output |
1.5 mV/V (30000??m/m)??20% |
| Environmental Characteristics |
| Safe Temperature Range |
0 to 60 o C (non-condensing) |
| Compensated Temperature Range |
0 to 50 o C (non-condensing) |
| Temperature Effect on Zero Balance |
Within??0.05% RO/??C |
| Temperature Effect on Output |
Within??0.05%/??C |
| Electrical Characteristics |
| Safe Excitation Voltage |
5V AC or DC |
| Recommended Excitation Voltage |
1 to 4V AC or DC |
| Input Resistance |
120?? ??3% |
| Output Resistance |
120?? ??3% |
| Cable |
4-conductor (0.008 mm 2 ) vinyl shielded cable,4mm diameter by 5m long, bared at the tip |
| (Shield wire is connected to mainframe.) |
| Shield wire is connected to mainframe |
| Frequency Response Range |
DC to approx. 1.5 Hz |
| Measuring Force |
Approx. 4.4 N |
| Weight |
Approx. 380g (50A), approx. 450g (100A)
(not including cable) |
| Optional Accessories
|
| Magnet base |
MB |
| Replacement probe |
X, XS or SH cannnot be used. |

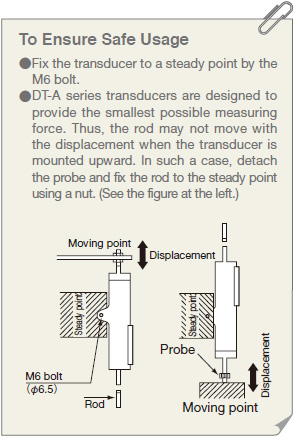

Notes:
1. Avoid usage in vibration.
2. If large displacement is applied momentarily, it takes some time that output is settled.
3. Do not apply any displacement in other than expansion/contraction direction of the rod.
TOP
