Dedicated Compression Load Cell of Explosion-Proof Construction.
*Please contact us for details| Model | Rated Capacity | Natural Frequency (Approx.) |
Weight (Approx.) |
Lord-bearing Unit | Movable Saddle | Mounting Base |
|---|---|---|---|---|---|---|
| LCS-500KD | 5kN | 4kHz | 4kg | --- | --- | CF-80 |
| LCS-1TD | 10kN | 5.3kHz | ||||
| LCS-2TD | 20kN | 6.2kHz | 4kg | CA-10B | ER-5B | CF-80 |
| LCS-5TD | 50kN | 6kHz |
| Performance | |
|---|---|
| Rated Capacity | See table above |
| Nonlinearity | Within ??0.2%RO |
| Hysteresis | Within ??0.2%RO |
| Repeatability | 0.2% RO or less |
| Rated Output | 2mV/V ( 4000??m/m) ??0.2% |
| Environmental Characteristics | |
| Safe Temperature Range | -15 to 75??C |
| Compensated Temperature Range | -10 to 70??C |
| Temperature Effect on Zero Balance | Within??0.007% RO/??C |
| Temperature Effect on Output | Within??0.005%/??C |
| Explosion-proof Environmental Conditions |
Ambient Temperature : -10 to 40??C |

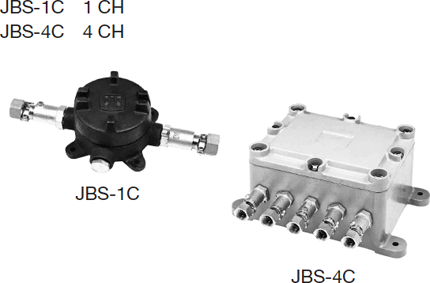

| Relative Humidity : 45 to 85%RH | |
| Electrical Characteristics | |
| Safe Excitation Voltage | 15V AC or DC |
| Recommended Excitation Voltage | 1 to 10V AC or DC |
| Input Resistance | 350???0.5% |
| Output Resistance | 350???0.5% |
| Cable | 4-conductor (0.3 mm 2 ) chloroprene shielded cable, 7.6 mm diameter by 5 m long, terminated with connector plug |
| (Shield wire is not connected to mainframe.) | |
| Mechanical Properties | |
| Safe Overload Rating | 120% |
| Natural Frequency | See table above |
| Weight | See table above |
