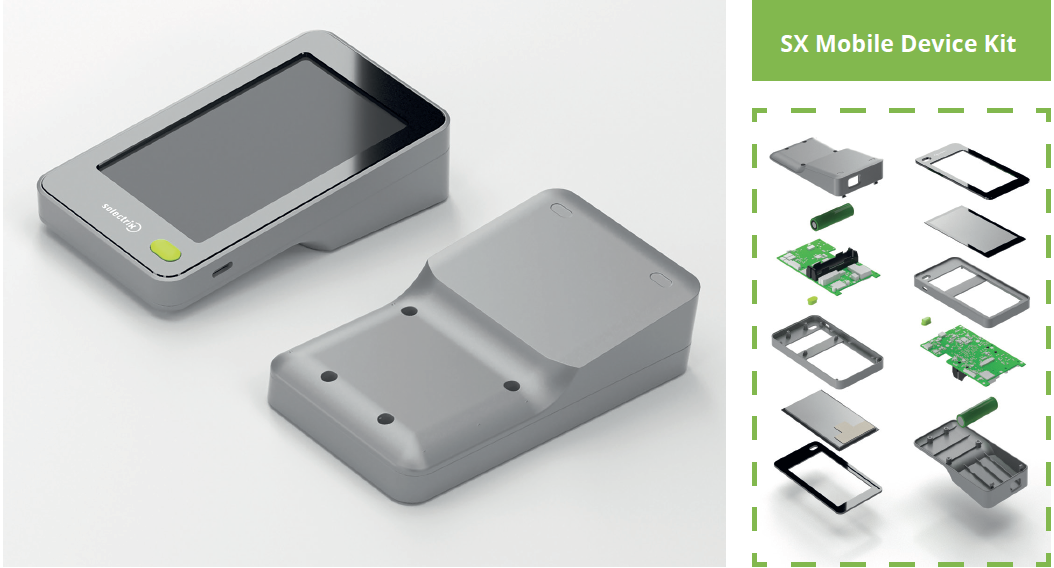

SX Mobile Device Kit - The platform for the direct entry into the development of mobile devices

The SX Mobile Device Kit is based on years of experience in the development of mobile devices for commercial use. It offers a completely prepared device design that includes not only hardware and software, but also a flexible housing concept. This significantly facilitates the entry into the development of a mobile device.

At the heart of the versatile electronics is an NXP i.MX8M Mini. The SX Mobile Device Kit includes selected components for the implementation of all the popular periphery expected of a mobile device. The optional USB host and Ethernet capabilities enable use as a single-board computer. A flexible interface allows the system to be expanded with selected image sensors for specific image processing applications.

Board Support Packages are available for both Linux and Android. On request we will adapt the hardware and software exactly to your requirements.

Technical Information

Model	SX Mobile Device Kit
CPU	NXP i.MX8M Mini
	up to Quad-core Cortex-A53, 2.0GHz
	Single-core Cortex-M4F, 400MHz
	2D / 3D GPU (OpenGL ES 2.0)
DRAM	2GB LPDDR4
Storage	8GB eMMC Flash
Wireless	Redpine RS9116
	802.11 a/b/g/n (2.4 GHz and 5 GHz), 802.11j
	Dual-mode Bluetooth 5 ("Bluetooth Classic and BLE")
Display	4-lane MIPI DSI
	Capacitve Touch interface
	Ready for DEM 7201280A Display Moduler
	5" TFT / Resolution 720x1280
Camera	Flexible sensor extension interface
	4-lane MIPI CSI-2
	Power supply for sensor extension boards
	I2C interface for sensor configuration
	GPIO signals for flash / illumination control
Location	Quectel L86
Location	Compact GNSS Module (GPS, GLONASS, and QZSS)
Audio	Maxim MAX98357A PCM Class D Amplifier
	Magnetic Speaker (0.7W / 88dB)
	PDM Microphone
Connectivity	microSD card slot
	2x USB Type-C (1x charging only / 1x USB OTG)
	miniPCIe connector
	RJ45 1GB Ethernet (optional)
	1x USB Type-A (optional)
	FT232 USB-to-UART
Power	Power Supply via USB Type-C
	18650 Li-Ion battery holder
	TI bq24161 charger on-board
	TI bq27520 Fuel Gauge on-board
	Wireless Charging extension connector
Operating systems	Android 9 ("Pie")
	Yocto Linux BSP
	Debian Linux BSP
PCB dimensions	125mm × 78mm
