The gage element is made of NiCr alloy, which exhibits excellent characteristics under low-temperature environments and is sandwiched between polyimde films.
Thus, the KFLB series gages are suitable for strain measurement of tanks and vessels containing low-temperature liquids such as LNG and LPG.

Click here for details.

Technical Information

Major Properties
Materials Resistive element	NiCr alloy foil
Materials Base	Polyimide
Operating temperature in combination with major adhesives after curing (°C)	EP-270: -269 to 30ºC PC-600: -269 to 150ºC CC-33A: -196 to 120ºC
Operating temperature in combination with major leadwire cables (°C)	Polyester-coated copper wire: -196 to 150ºC Mid-temperature cable (L-11, L-12): -100 to 150ºC Fluoroplastic-coated high/low-temp. 3-wire cable (L-3): -196 to 150ºC
Self-temperature-compensation (°C)	10 to 250ºC
Applicable linear expansion coefficients (×10^-6/℃)	11, 16, 23
Strain limits at normal temp. (approx. %)	2.2
Fatigue lives at normal temp. (times)	1x10^6 (±1500μm/m)

Contents

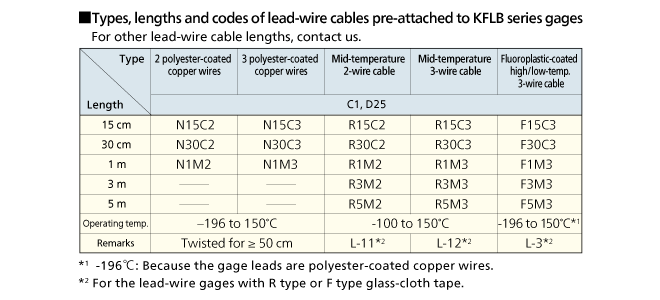

When ordering, suffix the lead-wire cable code to the model number with a space in between.

KFLB-5-120-C1-11 with a fluoroplastic-coated high/low-temperature 3-wire cable 5 m long pre-attached
→ KFLB-5-120-C1-11 F5M3

If no lead-wire cable code is suffixed, the gage is delivered with gage leads only.
(Silver-covered copper wires 25 mm long)
