| Major Properties | |
|---|---|
| Materials Resistive element | CuNi alloy foil |
| Materials Base | Polyimide |
| Operating temperature in combination with major adhesives after curing (°C) | CC-35: -10 to 80ºC |

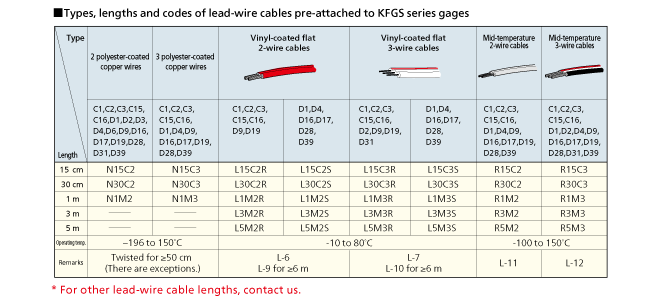

| Operating temperature in combination with major leadwire cables (°C) | Polyester-coated copper wire: -196 to 150ºC Vinyl-coated flat cable (L-6, L-7): -10 to 80ºC Mid-temperature cable (L-11, L-12): -100 to 150ºC |
| Self-temperature-compensation (°C) | 10 to 100ºC |
| Applicable linear expansion coefficients (×10^-6/℃) | 11 |
| Strain limits at normal temp. (approx. %) | 5.0 |
| Fatigue lives at normal temp. (times) | 1.2x10^7 (±1500μm/m) |
