A quick and easy-to-use mounting system for vehicles

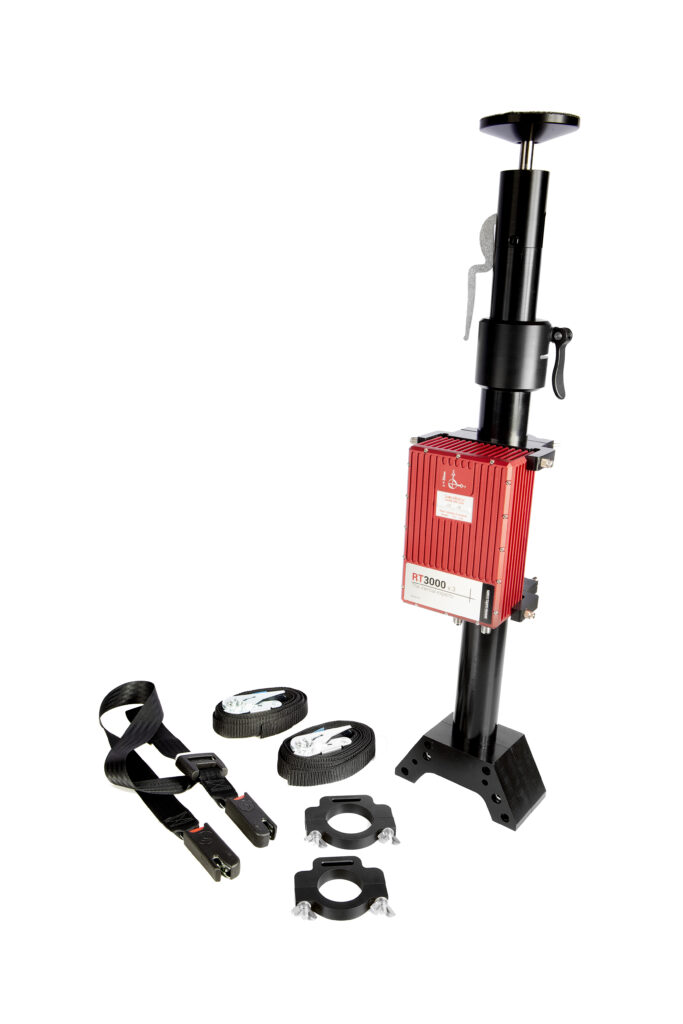

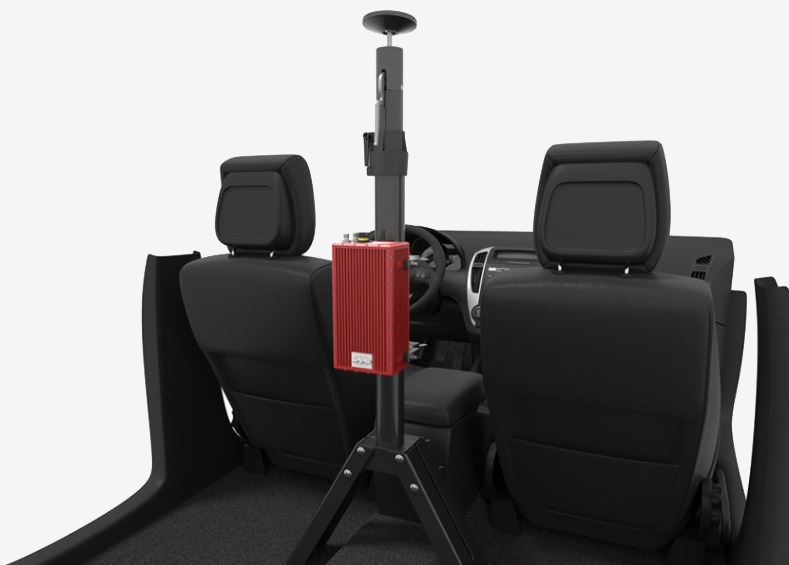

The RT-Strut is a fast car mounting system for our GNSS/INS products. Equipment can be mounted securely on the strut in most vehicles in minutes.
Quick to install

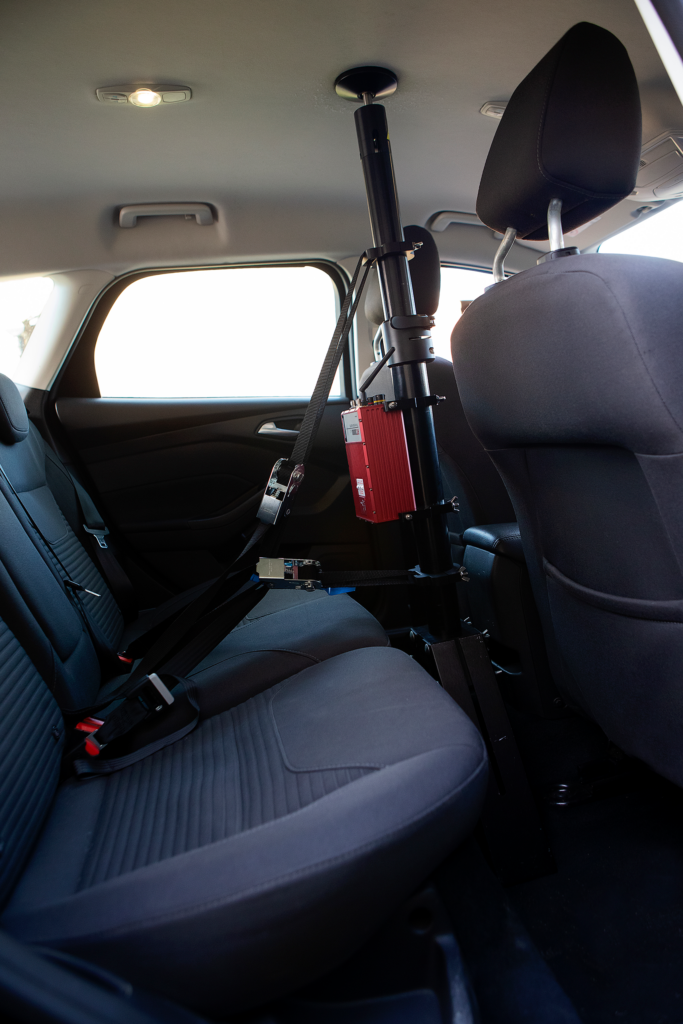

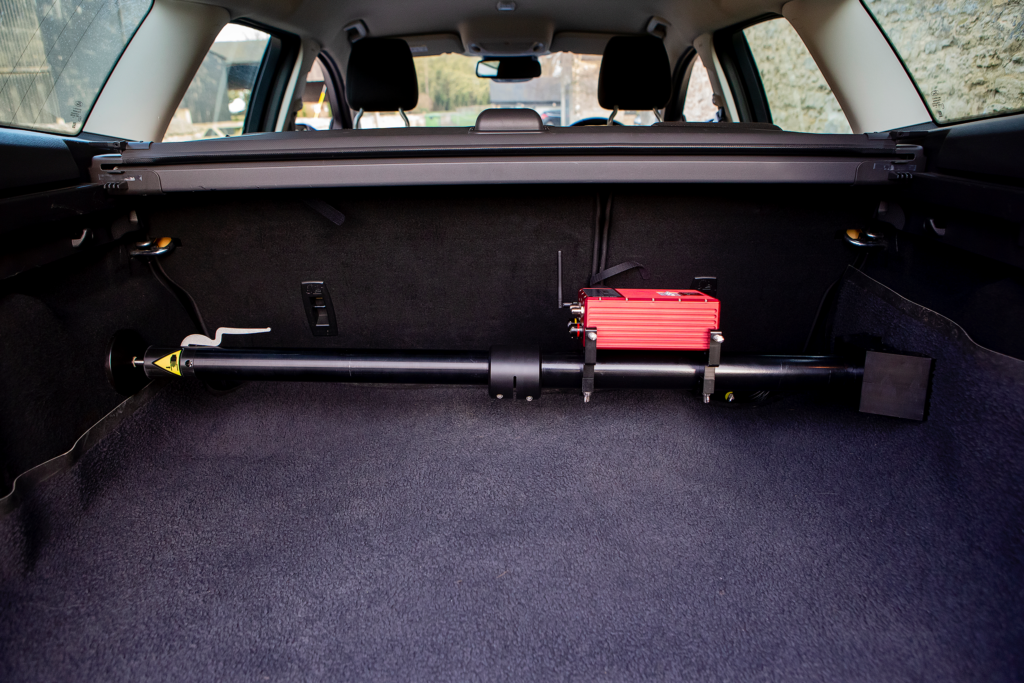

The RT-Strut fits between the floor and the roof of the car. A built-in spring provides the necessary force required to keep the RT-Strut in place. Fitting is simply a matter pulling a lever.
Application

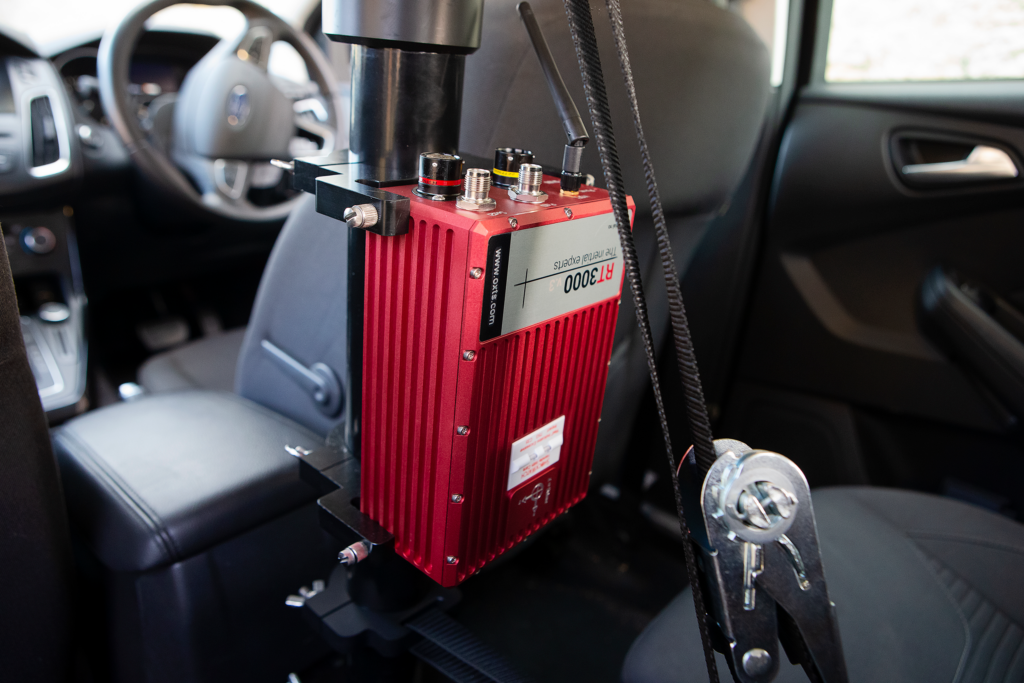

To mount your OxTS products quickly and securely in a vehicle
Key Features
Installs in seconds
Light-weight, 4.4kg
Adjustable installation height from 0.8m to 1.5m
Excellent yaw stiffness
Option for extended height version
Technical Information
Parameter Standard version Extended version
Weight 4.4kg 5.3kg
Maximum extension 1.50m 2.40m
Minimum extension 0.81m 1.30m
Temperature range -10 ... +70˚C -10 ... +70˚C
Downloads
Brochure
