Inertial Measurement Unit ADMA-Slim: If size and weight matters

The new full-fledged Inertial Measurement Unit has been specially developed for applications with space or weight restrictions. It is smaller, lighter and more compact, without limitations in functionality or quality of measurement data. The ADMA-Slim is the perfect choice for applications in motorcycles, overrunnable platforms for GSTs (Guided Soft Targets) or VRUs (Vulnerable Road Users such as pedestrians or cyclists), for example.

Applications

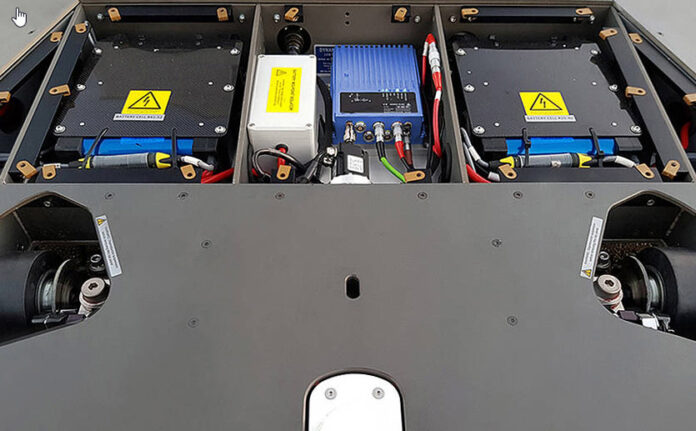

One of the key advantages of the ADMA is its excellent suitability for installation on overrunable platforms. Unlike many other inertial devices, the ADMA does not require a lengthy initialization process. The stability of the Kalman filter guarantees reliable results without the need for reinitialization even after an overrun of the platform.

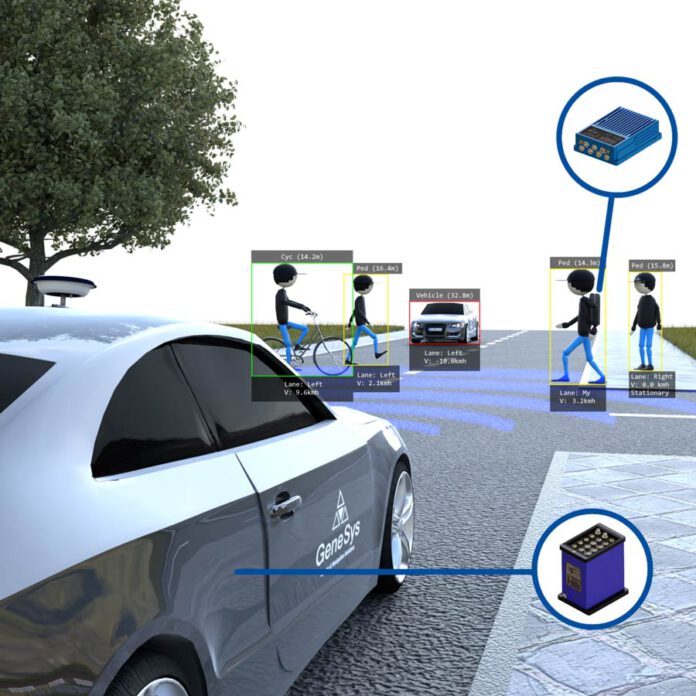

Additionally, the ADMA Inertial Measurement Unit is also suitable for all other testing applications, such as VD (vehicle dynamics) or ADAS (Advanced Driver Assistance Systems) testing. Its robust design and stable performance make it a versatile tool for various testing scenarios.

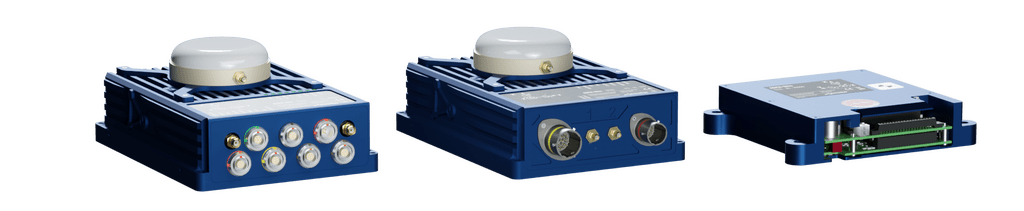

ADMA-Slim Inertial Measurement Unit is available in three different versions

The Inertial Measurement Unit ADMA-Slim is available either with an L1 GNSS receiver with SBAS and DGNSS correction data reception capability or with an L1/L2 GNSS receiver with RTK2 correction data reception capability, allowing for position accuracy down to the centimetre.

Fullfledged Inertial Measurement Unit with proven ADMA technology

Extremly small, lightweight and convenient size

Measuring of vehicle movements in all three measuring axes, even with GPS outage

Robust MEMS inertial sensors in strapdown technology with 5, 10 or 15g

Improved satellite reception via Multi-GNSS (GPS, GLONASS, GALILEO, BEIDOU)

Also as Dual Antenna version available

Mounting with high power magnets possible

Direct attachment of the GPS antenna to the inertial sensor technology possible

Available in a waterproof housing or as unhoused version for OEMs

Compatible with all common overrunnable platforms

Optional extendable, e.g. with RTK or DELTA option

Technical Information

COMPLETE SYSTEM
GNSS constellations	GPS L1, L2 GLONASS L1, L2 BeiDou B1, B21 Galileo E1, E51
Dual antenna	Optional
Position accuracy (1σ)*2	0.01 / 0.20 / 0.60 / 1.20 / 1.50m
Angle Measurement accuracy roll & pitch (1σ) / yaw (1σ) / sideslip (RMS)	0.02 / 0.05 / 0.15 °
Angle resolution	0.005 °
Velocity accuracy (RMS)*3	0.04km/h
Position error after 10 / 30 / 60sec GNSS outage (RMS)*3	0.4 / 5.0 / 40.0m
Velocity error after 10 / 30 / 60sec GNSS outage (RMS)*3	0.06 / 0.5 / 1.5m/sec
Roll / Pitch angle error after 10 / 30 / 60sec GNSS outage (RMS)*3	0.05 / 0.15 / 0.30°
Heading angle error after 10 / 30 / 60sec GNSS outage (RMS)*3	0.05 / 0.15 / 0.30°
Data output rate	50 / 100 / 200 / 250 / 500 Hz / (1000 Hz)*1
Calculation latency	1msec
SENSORS - GYROS
Sensor Technology	3 MEMS gyros
Measurement range	± 450 °/s
Data output resolution	0.2°/s
Bias repeatability typ. (1σ)	0.2 °/s
In-run-bias typ.	6°/h
Noise (random walk) typ.	0.3°/√h
Scale factor	0.2%
Sensor bandwidth	330Hz
SENSORS - ACCELEROMETERS
Sensor Technology	3 MEMS accelerometers/td>
Measurement range	± 5g / ± 15g*1
Data output resolution	0.0001g / 0.0001g
Bias repeatability typ.	4mg / 16mg
In-run-bias typ. (1σ)	32ug / 70ug
Noise (random walk) typ.	50ug /√Hz / 63ug /√Hz
Scale factor	0.2% / 0.2%
Sensor bandwidth	330Hz / 330Hz
INTERFACES
Ethernet	1x 1 Gbit Data input/output, configuration and firmware update, driving robot data output, optional for relative data calculation and DGNSS routing./td>
CAN	1 x CAN 2b, 1Mbit Data output, input*1
Serial	1x RS232 GNSS Receiver; DGNSS correction data input 1x RS232 GNSS Receiver; GPGGA Log output, IPS (Indoor Positioning System)
Digital/Analog Input	up to 4x Digital / Analog (16bit) e.g. Frequency, Brake trigger, …
Digital Output	up to 4x Digital TTL e.g. PPS, Frequency, PPD Pulse per distance, …
Connector type	Lemo; SC; Samtec
GNSS	2x SMA GNSS Antenna connectors
HARDWARE / MISCELLANEOUS
Ordering Variants	Lemo, SC, OEM
Internal Memory	up to 64GB
Power supply	9 to 32 VDC typ. 15W
Dimensions (W x L x H)	Lemo version 130 x 186 x 47mm SC version 130 x 194 x47mm OEM version 125 x 148 x 31 mm
Weight	1.5kg
Operating temperature	-20 to +60°C

*1 Optional
*2 Depending on GNSS conditions, correction data and license model
*3 Typical values according to internal test standards with settled Kalman filter.
