Dynamic range performance with object detection, classification, and tracking

· Dynamic Field of View
Seeing obstacles clearly at short- and long-range simultaneously
· Resolution at Range
Detecting and identifying smaller objects from longer distances
· Low Latency
Enabling autonomous systems to make quicker decisions for safer outcomes
· Compact Design
Engineered for precision and reliability, and designed for seamless vehicle integration

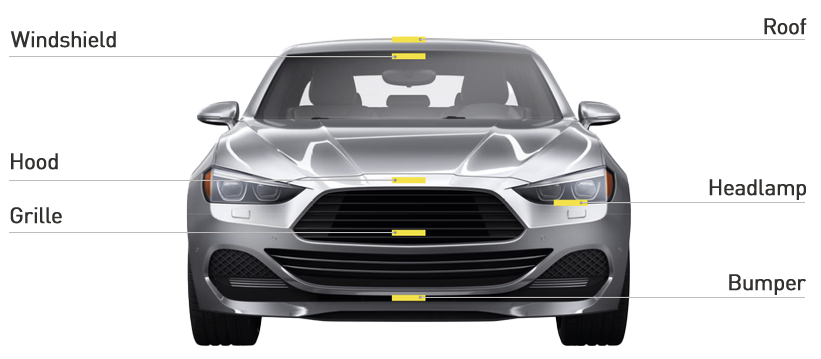

Integration Possibilities on OEM Architecture

· Roof
· Windshield
· Hood
· Headlamp
· Grille
· Bumper

Key Features

Customizable, low-profile, one-box solution required by automotive OEMs

Perception software enables object detection, classification, and tracking

Small object detection - near and far, at highway speeds of 130km/h (80mph)

Low latency data

IEC60825-1 Class 1 with patented Pixel by Pixel Automatic Emission Control

Low-profile and low power for smooth integration and deployment

Custom Analog and Digital ASICs* optimized for power and cost reduction (*planned for series)

Technical Information

Model	MAVIN® N
Maximum FOV (HxV)	120° x 30°
Maximum resolution (HxV)	0.05° x 0.05°
Data output frame rate	Up to 20Hz
Point / s	Up to 14 M
Laser safety compliance	IEC60825-1 Class 1
Wavelength	905nm
IP rating	IP69
Bounding box size	175mm wide, 36mm tall, 166mm deep
